Used Hytera PD682 SN15N19A0564

$299.00
Used Hytera PD682 SN15N19A0564 SKU: ZUS-1711

$299.00

Free Shipping!

Sold Out!

Check Store Stock

Huntsville Store:

Las Vegas:

Comments: Accessories Included: Li-Ion 1500 mAh Battery (IP67), Stubby Antenna, Drop-in Desktop Charger w/ AC Power Cable, Spring Action Belt Clip w/ Screws, Nylon Wrist Strap & User Manual

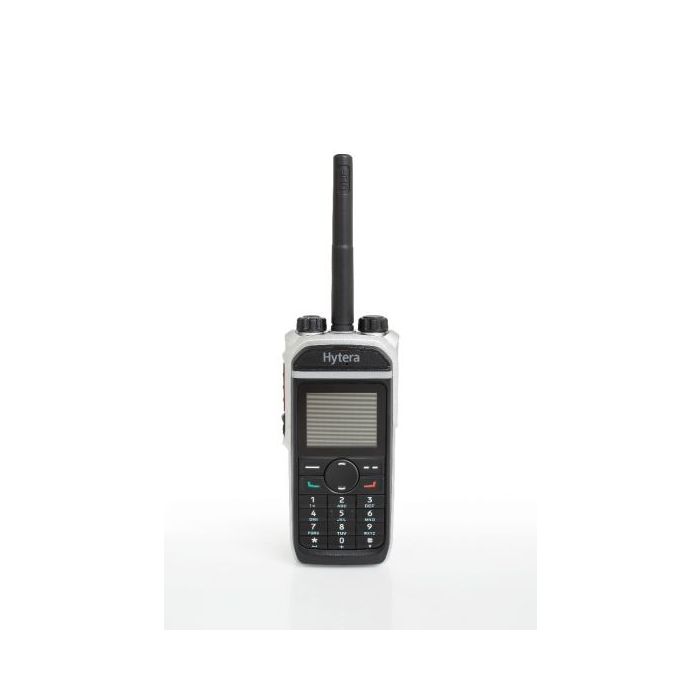

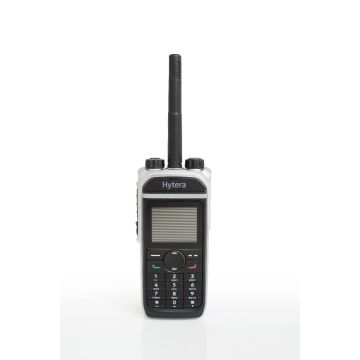

Hytera PD682 DMR UHF HT w/GPS. 400-527 MHz 1024 ch,  Keypad IP67

The PD6 Series is an open-standard DMR radio rich in features for both voice and data communication in a design approved to rigorous IP67 and MIL-STD 810 testing. It is the ideal solution for organizations looking for an affordable migration from analog to digital technology. The Hytera-patented pseudo-trunking maximizes channel usage. The PD6 Series G also comes with an optional GPS chip that allows the radio to integrate with Hytera Dispatch System or other 3rd party GPS dispatching software.


FAQ:

Q. Where can I download programming software?

A. Programming software can be downloaded at www.gigaparts.com/downloads

This radio can be enabled for wideband FM and front panel programmability if it is purchased by a licensed amateur operator. After you purchase the radio, send an email to [email protected] requesting this feature and we will email a program to you that will allow the Hytera CPS software on your computer to enable those features for your serial number. This process is controlled by the radio’s model number and serial number and only works on Hytera radios sold by GigaParts. Please provide your amateur radio call sign in the email request.

Hytera PD682 DMR UHF HT w/GPS. 400-527 MHz 1024 ch,  Keypad IP67

Smaller, Sleeker, Lighter
The PD6 Series has a light weight PC & Metal frame design. The PA682G is 4.8 x 2.17 x 1.1 inches, weighing 10.93oz.

Rugged & Reliable
Complies with MIL-STD-810 C/D/E/F/G standards and passes HALT (Highly Accelerated Life Test).

Dual Mode: Analog & Digital
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.

Advanced Signaling
Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.

DMRA Data Service
The data protocol is fully compliant to DMRA standard.

Pseudo Trunk
This virtual trunking feature allocates a free timeslot for urgent communications. This effectively enhances frequency efficiency and allows you to communicate in a timely manner in emergency situations. See example below.Slot 1, Slot 2 are automatically assigned to voice call 1 or voice call 2

GPS Positioning (Factory Option)
The built-in GPS module in the PA6 series G supports GIS applications.

Further Development Port
The reserved side port allows users or any third party partner to further develop other helpful applications to extend radio functionalities.

One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.

Supplementary Features
PA6 Series can decode radio enable, radio disable, and remoter monitor as well as Priority Interrupt.

IP67 Protection
The Ingress Protection reaches IP67 (6: Totally protected against dust; 7: Protected against the effects of immersion up to 1m for 30 minutes). It’s the highest IP level for land-based wireless radio application.

DMO True 2-Slot / DMRA Direct Mode
In Directmode Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.

Frequency range UHF: 400 - 527 MHz
Channel capacity 1024
Zone capacity 64
Channel spacing 25/20/12.5 kHz (analog)
12.5 kHz (digital)
Operating voltage 7.4 V
Battery 1500 mAh (Li-Ion)
Battery service life (5/5/90) approx. 11 h (analog)
approx. 16 h (digital)
Frequency stability ±0.5 ppm
Antenna impedance 50 Ω
Dimensions (H×W×D) 4.8 x 2.17 x 1.1 inches
Weight 10.23oz

Transmitter
RF Power Output UHF: High 4W - Low 1W
FM Modulation
(Analog Emissions Designator)
11K fF3E @ 4KfF3E @ 20KHz ;
16KfF3E @ 25KHz
4FSK Digital Modulation
(Digital Emissions Designator)
2.5KHz Data Only: 7K6fFXD
2.5KHz Data & Voice: 7KfFXW
Conducted/Radiated Emission -36 dBm < 1 GHz
-30 dBm > 1 GHz
Modulation limiting ±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz
±5.0 kHz at 25 kHz
FM Hum & Noise 40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz
Adjacent Channel Power 60 dB at 12.5 kHz
70 dB at 20/25 kHz
Audio Response +1 dB to -3 dB
Audio Distortion ≤ 3%
Digital vocoder type AMBE++ or SELP
Digital Protocol ETSI-TS102 361-1, 2&3

Receiver
Sensitivity (analogue) 0.22 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD)
0.4 μV (20 dB SINAD)
Sensitivity (digital) 0.22 μV / BER 5%
Adjacent channel selectivity
TIA-603
ETSI

60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz
Intermodulation
TIA-603
ETSI

70 dB at 12.5/20/25 kHz
70 dB at 12.5/20/25 kHz
Spurious response rejection
TIA-603
ETSI

70 dB at 12,5/20/25 kHz
70 dB at 12.5/20/25 kHz
Spurious response rejection 40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz
Nominal audio power output 0.5 W
Nominal audio distortion ≤ 3 %
Audio sensitivity +1 dB to -3 dB
Conducted spurious emission < -57 dBm

Ambient Specs
Operating temperature range -30 °C to +60 °C
Storage temperature range -40 °C to +85 °C
ESD IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge)
Protection against dust and moisture IP67
Shock and vibration resistance MIL-STD-810 C/D/E/F/G
Relative humidity MIL-STD-810 C/D/E/F/G

GPS (nur PD605G)
TTFF (cold start) < 1 minute
TTFF (warm start) < 10 seconds
Horizontal Accuracy < 10 meter
