West Mountain PWRcheck

West Mountain PWRcheck SKU: ZWM-PWRCHECK


Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

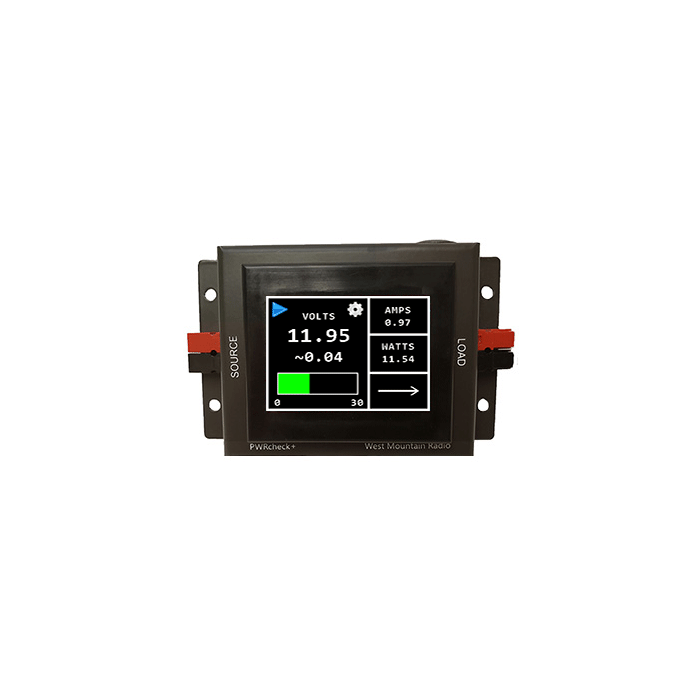

PWRcheck - integrated DC power analyzer, watt meter and electricity monitor


  • Handles 8 display modes including voltage, current flow in either direction, wattage and amp-hours
  • Measures 0V to 60V (Less than 8V requires USB power to PWRcheck), 40A continuous load
  • Accurate to within +/- 10mV, +/- 10mA
  • Resolution - 10mV, 10mA
  • High side monitoring does not require breaking power supply ground or return path, ideal for vehicle use
  • Backlit graphics LCD displays data in digital, analog and bar graph formats
  • Monitor back up battery with programmable gas gauge
  • Non-volatile memory stores more than 174,000 data points (over 4 months worth of data @ 1 point/minute) without power
  • USB computer interface for configuration and data download
  • Programmable alarm conditions for overcurrent, over/under voltage, amp-hours
  • 45A Powerpole® connectors
  • Dimensions 4-5/8" L x 2-3/4" W x 1" H


  • Easily program every aspect of PWRcheck operation such as data logging rate, display formats, alarm conditions
  • Displays current, voltage, wattage and amp-hours in real time
  • Integrated charting software automatically collects and displays data
  • Downloads stored data for later analysis
  • Exports to Excel

Computer System Requirements:

  • At least an 800 X 600 graphics card and display monitor
  • Windows XP, Vista®: 32 or 64 bit, Windows® 7: 32 or 64 bit
  • An available USB port
