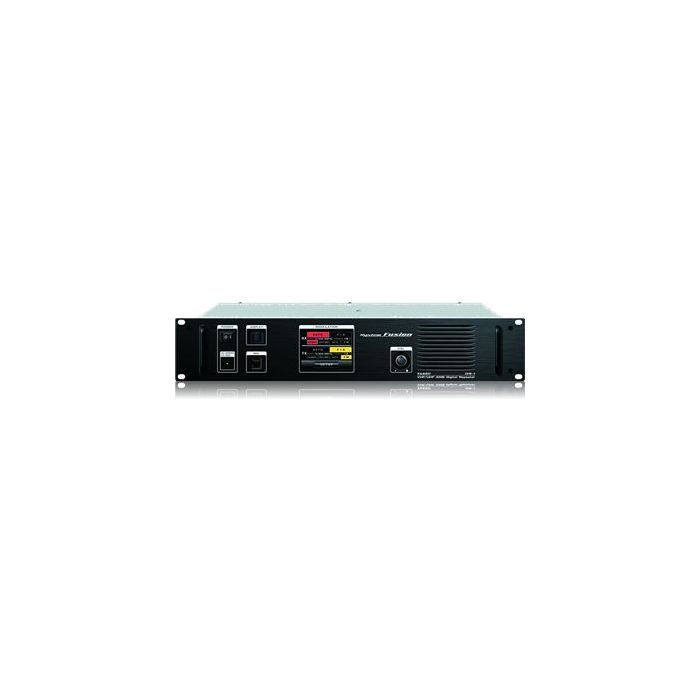

YAESU DR-1X 144/430 Dual Band C4FM/FM Digital Repeater

Yaesu will be discontinuing the DR-1X repeater December 8th, 2017 at 12:00pm PST (Pacific Standard Time). Any email applications received after that time will not be processed and any US Mail applications postmarked after December 8th, 2017 will not be accepted. Yaesu will still continue to provide technical support and service of the DR-1X.

The YAESU DR-1X is a digital/conventional FM dual mode repeater that covers the VHF and UHF amateur radio bands. It was developed for use with System Fusion. Replacing your conventional FM repeater with the DR-1 will provide continued use of conventional FM communication while integrating the use of digital communication functions through its unique AMS capability.

Easy Migration

The repeater controller, receiver and transmitter are all packaged into a 19” standard cabinet rack mount panel unit for simple replacement of an existing repeater*. Existing peripheral devices such as the duplexer and amplifier, etc., can continue to be used as-is.

*Please see the DR-1 Brochure and Manual for installation examples of Repeater Set-Up replacing existing Analog FM Repeater

DR-1 Features

·Modulation Modes: Conventional FM, 12.5 kHz C4FM Digital (V/D Mode, VFR Mode, DFR Mode) *
·AMS (Automatic Mode Select) function automatically recognizes the signal as C4FM digital or conventional FM, and then the DR-1 repeater retransmits the signal using the preset communications mode.
·3.5-inch Full Color Touch Panel Operation
·Extremely reliable, high RF Output Power: 50W/20W/10W
·Emergency Operation: Supports auto-switched backup battery power operation.
·Front panel microphone connector is provided for use in repeater transmitter testing, and enables use as a base station.
·Built-in large-size monitor speaker with front panel volume control

*System Fusion is not compatible with the D-STAR GMSK digital format.

User Friendly Set-Up

The large front panel, color touch-screen permits convenient configuration of the transmitter and receiver frequencies, transmit power output and AMS functions. When the settings are complete the display can be switched off to prevent accidental operation. Simply turn the display switch ON and use the touch panel screen to confirm or change settings. The transmit and receive frequencies, CTCSS tones, squelch, AMS, and other functions are configured by the touch panel screen

Touch Panel Operation

- Enjoy the ease of using the DR-1 3.5-inch Full Color Touch Panel Operation:
·Setup screen
·Frequency setting screen
·CTCSS setting screen

Other Feature

·Internal AC Power Supply
·19" Rack Mount Available
·High Stability ±2.5ppm TCXO included
·DSQ (Digital Squelch Code) Signaling Feature
·CTCSS and DCS Signaling Feature
·ID Announcement Feature
·Remote Controller Interface
·Base Station Operation
·Time Out Timer
·Firmware Updates

DR-1 Supplied Accessories

·AC Cable
·DC Cable for backup battery
·PC Connection Cable SCU-20
·Rubber Feet (4)

DR-1 Options

·DTMF Microphone MH-48A6JA
·Hand Microphone MH-42C6J
·Voice Guide Unit FVS-2

DR-1 Specifications

Frequency range 144 to 148 MHz, 430 to 450 MHz
Channel steps 5/6.25 kHz
Emission type F1D, F2D, F3E, F7W
Frequency stability ±2.5 ppm (-4°F to +140°F (-20°C to +60°C))
Antenna impedance 50 ohms
Supply Voltage AC 100 to 240 V
DC 11.7 to 15.8 V, negative ground
Current consumption:
1.5 A (Receive)
13 A (50 W TX, 144 MHz band)
14 A (50 W TX, 430 MHz band)
Operating temperature -4°F to +140°F (-20°C to +60°C)
Dimensions: 19"(W) × 3.5"(H) × 15"(D)
Weight : 22.05 lbs (10 kg) approximately

RF power output 50/20/5 W
Modulation type F1D, F2D, F3E Variable Reactance Modulation
Spurious emission At least 60 dB below

Circuit type Double conversion super-heterodyne
Intermediate frequencies 1st: 47.25 MHz, 2nd: 450 kHz
Receiver sensitivity
0.3 .V (Digital 2 m/70 cm) BER 1%
0.2 .V (FM 2 m/70 cm) 12dB SINARD
Adjacent Channel Selectivity Better than 65 dB TYP (20 kHz offset)
Selectivity FM 12 kHz/35 kHz (-6 dB/-60 dB)
Intermodulation Better than 65 dB TYP (20 /40 kHz offset)
Audio output 4 W (4ohm., THD 10%, 13.8 V; internal speaker)
