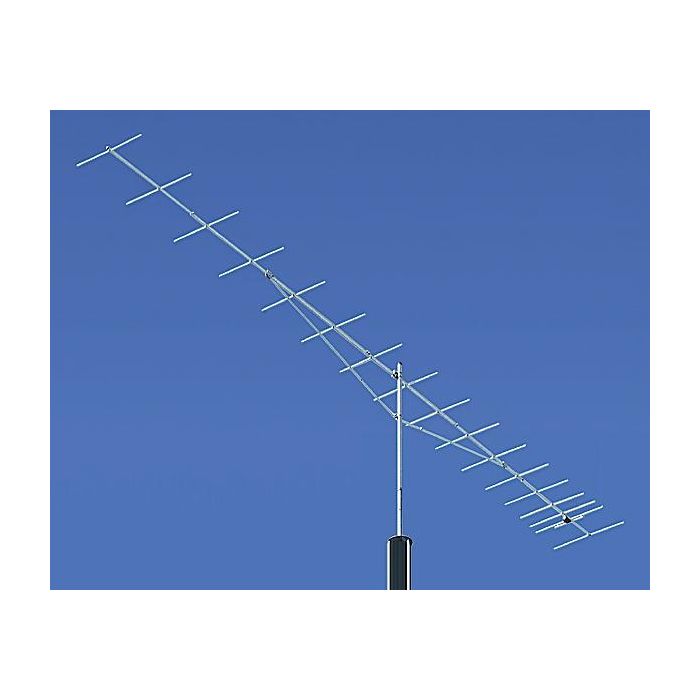

Cushcraft A17B2

Model #

Model #

Model #

Model #

Model #

Model #

Specifications:

A13B2

A17B2

A124WB

A26B2

A1483S

A14810S

Frequency Mhz

144-148

144-145

144-148

144-148

144-148

144-148

Elements per Band

13

17

4

26

3

10

Gain, dBi

15.8

18

10.2

17

7.8

13.2

Front to Back Ratio, dB

26

26

19

26

18

24

Side Lobe Attenuation dB

>60

>60

40

>60

SWR 1.2:1 Typical2:1 Bandwidth, Mhz

>4

>2

4

>4

>5

>4

Longest Element, in (cm)

39.75 (101)

40.75 (103.5)

40.75 (103.5)

39.75 (101)

41 (104.1)

40.3 (102.4)

Turning Radius, ft (m)

8.9 (2.7)

17.25 (5.26)

4 (1.22)

10.4 (3.18)

2.8 (0.8)

6 (1.8)

Boom Length, ft (m)

15 (4.57)

31 (9.45)

4 (1.22)

15 (4.57)

2.8 (0.8)

12 (3.6)

Electrical Wavelength

2.2

4.5

0.5

2.2

Wind Load, ft2 (m2)

1.8 (0.17)

3.9 (0.36)

0.34 (0.34)

4.84 (0.45)

0.27 (0.02)

1.21 (0.11)

Max.Power Watts PEP

1500W

1500W

1500W

1500W

1000W

1000W

Weight, lbs (kg)

6.7 (0.31)

15.75 (7.14)

3 (1.36)

21.5 (9.75)

1.5 (0.7)

6 (2.7)
