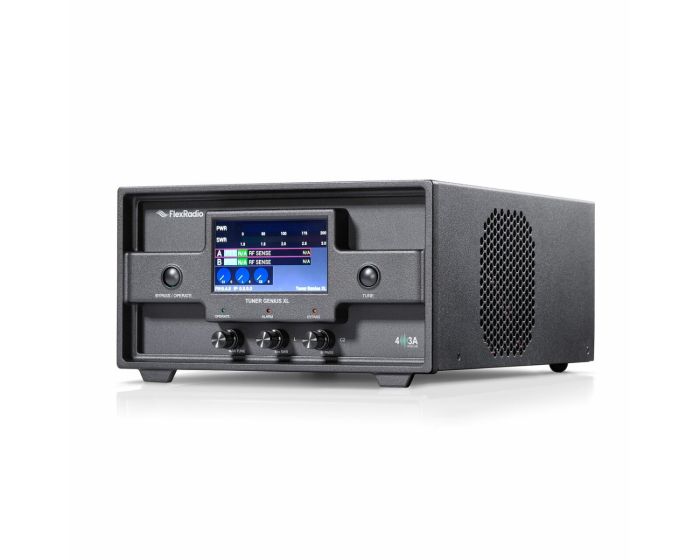

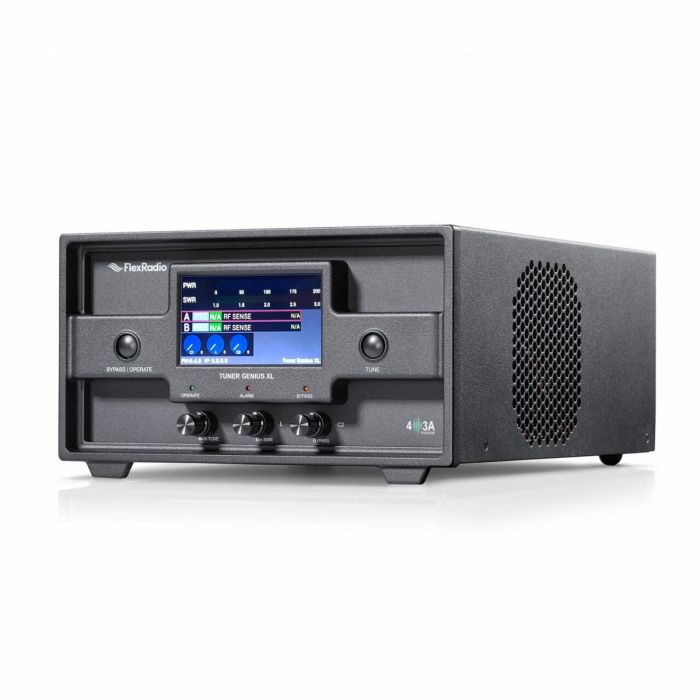

FlexRadio Tuner Genius XL - 1x3 Configuration
Genius Series 1x3 Tuner with up to 2,000W
The Tuner Genius XL is a full frequency coverage tuner from 1.8 MHz to 54 MHz with the ability to tune up to 10:1 SWR. With the ability to handle up to 2000W ICAS of power, the Tuner Genius XL is built to high quality “broadcast industry” commercial standards.
EASY OPERATION
All Tuner Genius XL functions can be controlled either from the front panel of the tuner or using a Windows computer software application. This allows the Tuner Genius XL to be placed off your desktop if needed. High precision “peak responding” RF power and SWR meter displays are also provided, therefore, you no longer need a separate Watt/SWR meter device in your shack.
GENIUS ECOSYSTEM
An advanced engineering approach to tuner development has resulted in truly highest quality hardware and software solutions.
4O3A software developers have extended the tuner with new functions, and completed integration with Antenna Genius, forming a single system. Very easy to use, uncompromisingly functional, the integration of TGXL into the Genius platform extends both functions as well as protection systems.
Once setup, TGXL will remember individual settings for each frequency change and will go to bypass if your antenna is in a segment with good SWR.
IMPECCABLE ACCURACY
The RF block was carefully designed and is built from only the highest quality RF capacitors, making sure it’s capable of enduring currents and voltages generated by high SWR’s.
GENIUS SOLUTIONS / GENIUS DUO
GigaParts is Proud to Partner with our friends at FlexRadio to make the Genius Solution Line by 4O3A available to our customers in the United States.
General Specification
- Tuning: Fully automatic and manually tuned operation
- Frequency Range: 1.8 to 54 MHz continuous
- Radio Interface: Works with all radios using Flex radio LAN, RS232, CI-V, BCD, Pin-to-Band (PTB), or use the built in frequency counter.
- Alarms and Warnings: Low drive, Frequency Out of Range, Wrong band, and High power
- Matching Range: Up to 10:1 SWR. Resonant antenna frequency range memories will bypass the tuner automatically.
- Tuning Time: Tuning solutions (2 to 12 seconds) are stored in memory automatically. Stored memory switching is 20ms.
- Tuning Power Requirement: 10W - 200W
User Interface
- Large 4.5” color touch screen display
- Front panel controls for manual switching, tuning & configuration
- Windows™ utility application for over the network control and configuration
RF Characteristics
- Nominal Impedance: 50-Ohm unbalanced
- Nominal Operating Power: Up to 2000W
- Duty Cycle: 100% ICAS
- Protection: Intelligent SWR and power derating
1x3 version
- Inputs and Outputs: 1x3 matrix (1 in, 3 out)
- Switching: Matrix, manual or automatic by frequency/band
Mechanical/Electrical
- Power Supply: 12 - 16V DC @2A via an external 100 to 240 VAC power supply
- Dimensions: 11.8” W x 13.8” D x 5.9” H (30cm W x 35cm D x 15cm H)
- Weight: 15.4 lbs (7kg)
Environmental
- Temperature Range: -4F (-20C) to +122F (+50 C)
- Humidity: up to 98 percent (non-condensing)
- Altitude (ASL): up to 10,000 feet (3,050m)
