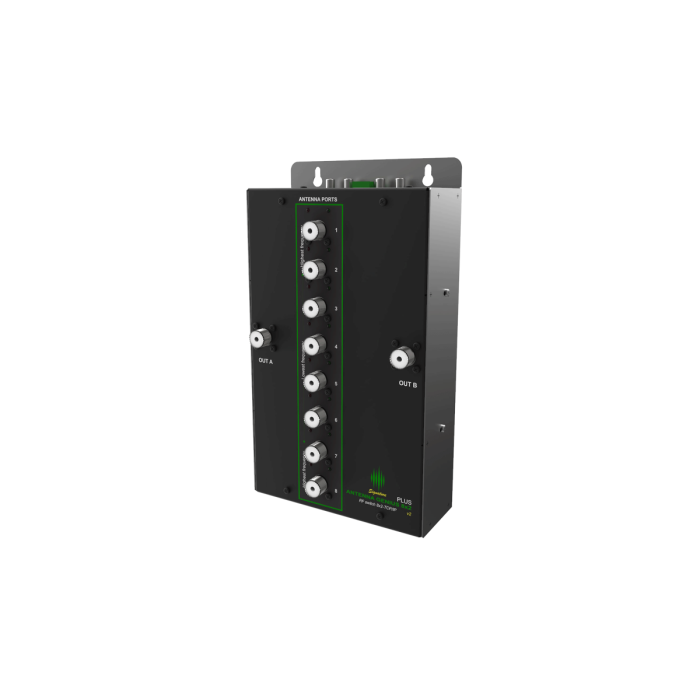

FlexRadio Antenna Genius 8x2 Smart Matrix Antenna Switch

Operate intelligently and make the most out of your dual RX transceiver. Perfect for your FLEX-6000 Series, or any mix of Icom, Yaesu, or radios for Single Operator, Two Radio (SO2R), and multi-operator contesting.

The Antenna Genius 8×2 is a smart matrix antenna switch that supports eight antennas and two radios.

ntentionally designed for LAN/WAN control to help you realize the potential of your shack. Note: RF on 6M / 50Mhz needs to be limited to 800 watts for Constant Carrier Modes such as FT8, RTTY, etc.

Purchase your FlexRadio Antenna Genius from GigaParts today!

  • Hardware-level interlock systems prevent two radios from connecting to the same antenna.
  • Antenna Genius ensures your RX antennas will not be used for TX.
  • Automatic antenna switching for FlexRadio transceivers, 4O3A Interface Genius, BCD or manually by our Windows app or Pin to Port.
  • Rugged stainless-steel chassis with wall mount flange.
  • User programmable band ranges.
  • Capable of 3000W @ 1.5:1 VSWR CCS (e.g., RTTY) duty cycle for five minutes.
  • 160M through 6M bands.
  • Port isolation is up 20 dB better than other brands. Perfect if you are using SO2R or one radio full duplex (e.g., FlexRadio 6000 series).
  • TCP/IP (100-Mbps Ethernet) built in, DHCP-assigned or static IP address.
  • Dimensions 12.6”H x 7.1” W x 3.75” D (32 x 18 x 8.5 cm)
  • Weight: 7 lbs. (3.2 kg)
  • Highest port-to-port isolation on the market. Typical values are 75dB @ 50-MHz, 81dB @ 30-MHz, > 90dB @ 14-MHz.
  • DC power, RJ-45 (100-Mbps Ethernet), 2 x 15-pin DE-15 socket (VGA style)
  • Requires 13.8-VDC power supply (2.1mm x 5.5mm)
  • Power Consumption: 13.8-VDC @ 300mA.
  • Can add optional Output Modules with 16 relay outputs.
  • Antenna Genius 8 × 2 Plus can be combined into a “super-switch”, extending the number of antenna ports to 16, 24 or 32.
  • Can be remotely controlled over LAN or internet.
  • Configurable by an intuitive Windows app.
