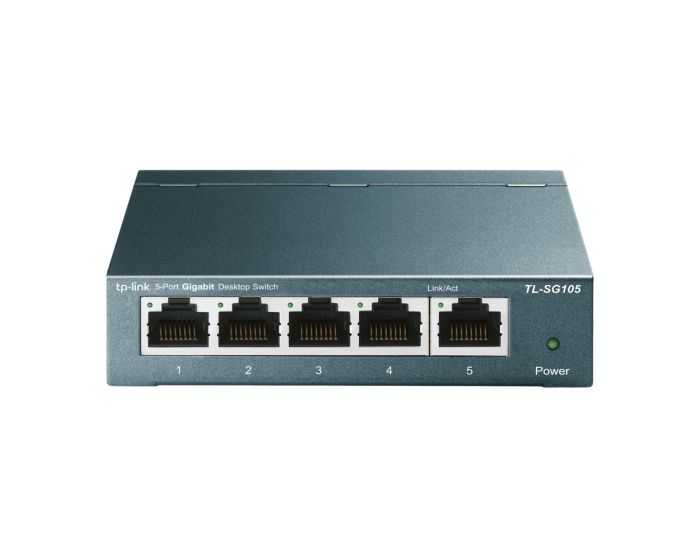

TP-Link 5 Port Gigabit Unmanaged Ethernet Network Switch - TL-SG105
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions
- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
|---|---|
| Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max Power Consumption | 2.3 W (220 V/ 50 Hz) |
| Max Heat Dissipation |
7.83 BTU/h |
| Packet Forwarding Rate | 7.4 Mpps |
|---|---|
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
- 5-Port 10/100/1000Mbps Desktop Switch
- Power Supply
- Installation Guide
