Used (Very good) LDG AT-100PROII Auto tuner 125W
LDG desktop tuners are perfect for your home shack, but can also be used portable or mobile if the need arises. Different models handle RF power levels from 100 to 1000 watts. LDG’s generic tuners work with almost any transceiver or transmitter.

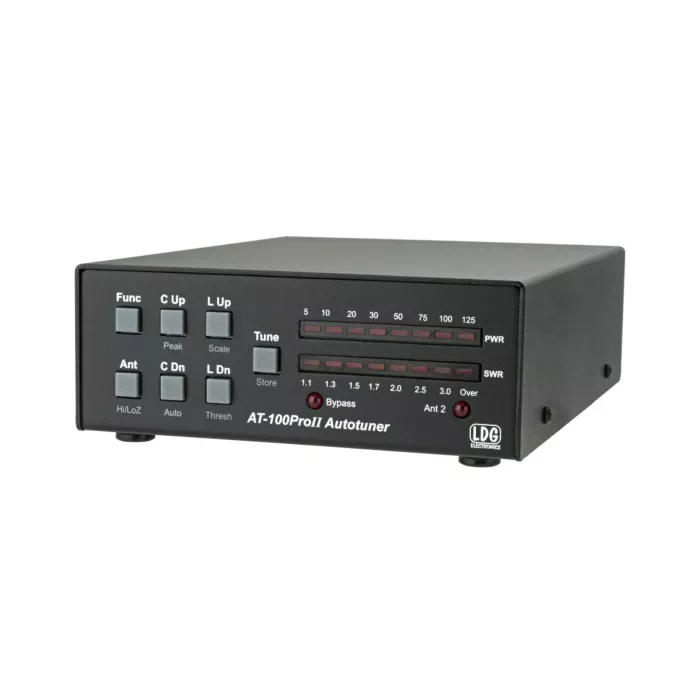

The LDG AT-100ProII is a general purpose automatic tuner suitable for many amateur applications. It covers 1.8-54 MHz, and features a two-position antenna switch allowing instant switching between two antennas. The AT-100ProII requires just 1 watt for operation but will handle up to 125 watts, making it suitable for everything from QRP to a typical 100 watt transceiver. For higher wattage tuners, see the AT-200ProII, AT-600ProII, and AT-1000ProII.
Like most LDG tuners the AT-100ProII operates automatically, beginning a tuning cycle whenever the SWR exceeds a preset limit. The AT-100ProII also features LDG’s advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.
Large, easy-to-read LED bargraphs show forward and reverse power in peak or average mode, and SWR. Two power scales are provided: 12.5 watts and 125 watts. The bargraphs also indicate tuner status and input confirmations.
The AT-100ProII uses LDG’s state-of-the-art, processor-controlled Switched-L tuning network. It will match dipoles, verticals, inverted-Vees or virtually any coax-fed antenna. With an optional LDG balun, you can also use longwires or antennas fed with ladder-line. It handles 100 watts SSB or 50 watts FM/Digital when used with a solid-state transceiver; vacuum tube transmitters cut the power ratings about in half.
The AT-100ProII uses latching relays which retain the tuned configuration indefinitely even when the unit is powered down. The latching relays also enable extremely low power consumption; when not actively tuning the AT-100ProII draws next to no power at all. This makes it suitable for portable or mobile operation from batteries.
All LDG tuners come with a two year fully transferable warranty and LDG’s legendary customer service.
Download the user manual here.
