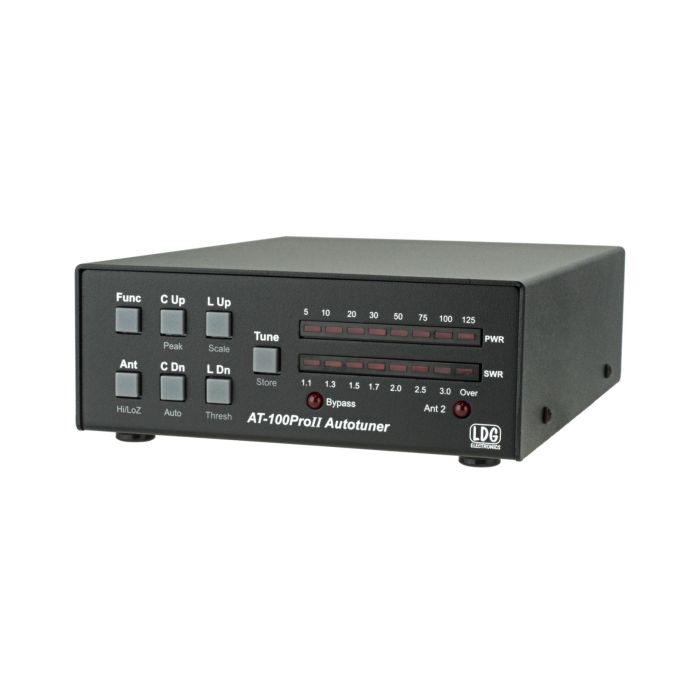

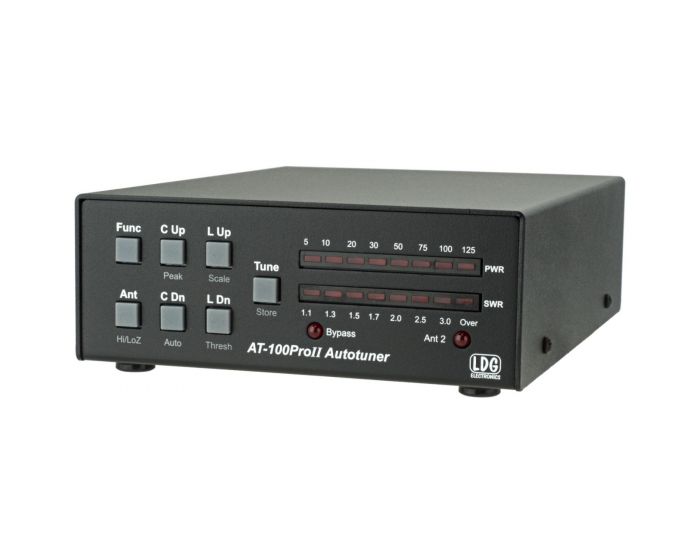

LDG AT-100PROII Auto Tuner 125W

SKU
ZLD-AT-100PROII
Rating:
100 % of 100
$249.95
Used & Open-Box: from $229.29
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

The LDG AT-100 Pro II is a general purpose automatic tuner suitable for many amateur applications. It covers 1.8-54 MHz, and features a two-position antenna switch allowing instant switching between two antennas. The AT-100ProII requires just 1 watt for operation but will handle up to 125 watts, making it suitable for everything from QRP to a typical 100 watt transceiver.

Like most LDG tuners the AT-100ProII operates automatically, beginning a tuning cycle whenever the SWR exceeds a preset limit. The AT-100ProII also features LDG’s advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.

Large, easy-to-read LED bargraphs show forward and reverse power in peak or average mode, and SWR. Two power scales are provided: 12.5 watts and 125 watts. The bargraphs also indicate tuner status and input confirmations.

The AT-100ProII uses LDG’s state-of-the-art, processor-controlled Switched-L tuning network. It will match dipoles, verticals, inverted-Vees or virtually any coax-fed antenna. With an optional LDG balun, you can also use longwires or antennas fed with ladder-line. It handles 100 watts SSB or 50 watts FM/Digital when used with a solid-state transceiver; vacuum tube transmitters cut the power ratings about in half.

The AT-100ProII uses latching relays which retain the tuned configuration indefinitely even when the unit is powered down. The latching relays also enable extremely low power consumption; when not actively tuning the AT-100ProII draws next to no power at all. This makes it suitable for portable or mobile operation from batteries.

  • 125 Watts SSB/CW, 30W Digital
  • Easy to read LED bar-graph display for RF power, SWR, status. LED indicator for antenna selection and bypass.
  • 4000 memories for instantaneous band changing.
  • Two position antenna switch. Separate memories for each antenna.
  • Tuning time: 0.5 to 6 seconds full tune, 0.2 sec memory.
  • Selectable user parameters: Auto/Semi, 125/12.5 watt scale, autotuning threshold and more.
  • 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
  • Tunes 6 to 1000 ohm loads (16 to 150 on 6M),.
  • For Dipoles, Verticals, Vs, Beams or and Coax Fed Antenna
  • Includes DC power cable. 5.5×2.5mm
  • Power requirements: 11 to 16 volts DC at 500 mA Max.
  • Small Size Enclosure: 7.5″ D x 5.5″ W x 2.0″ H Weight: 1.5 pounds.
