MFJ-213 1.8-60 Mhz Antenna Analyzer

MFJ-213 Antenna Analyzer

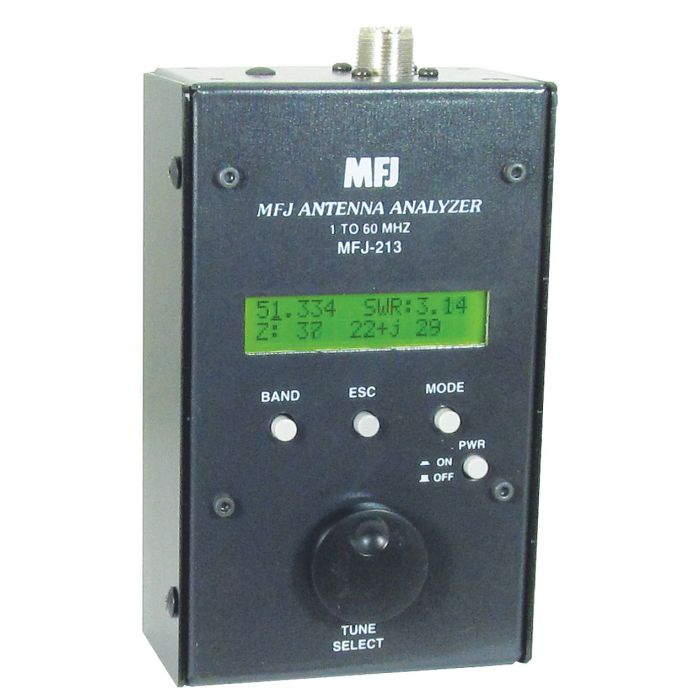

Get all of the basic RF-diagnostic functions that you need and more by using one of these MFJ 213 HF Antenna Analyzers. They cover from 1 to 60 MHz amateur and commercial frequencies with digital precision. They also display SWR, complex impedance, and impedance magnitude simultaneously, all on the same easy-to-read LCD screen.

Use them to measure capacitance, inductance, field strength, and frequency, plus generate test signals. You can also fine-tune stubs, analyze coax, test baluns and RF transformers, and perform many other important RF-related tasks around the shack or on the road!

When it comes to simplicity and convenience, MFJ 213 analyzers are not only easy to use, but they also fit comfortably in one hand for on-the-fly measurements on the bench or in the field. The velvet-smooth frequency knob makes fine-tuning a breeze.

Features and specifications:

• Frequency coverage: Covers all amateur bands from 160 meters through 6 meters.
• SWR, impedance magnitude, and complex impedance: In SWR mode, they read SWR 1:1 to 9.9:1, impedance magnitude and complex impedance (resistance and reactance). Display all three parameters simultaneously and operating frequency with one quick glance.
• Capacitance and inductance: Find values for unknown capacitance in pF or unknown inductance in uH quickly. Measurements made at RF frequencies rather than low audio frequencies used by many handheld L/C meters.
• Frequency measurement, field strength readings: In frequency-counter mode, they become accurate 60 MHz counters with a choice of 1 kHz or 100 Hz resolution. The counter mode also features a high-resolution digital field-strength meter for measuring relative intensity of incoming signals. Together, these functions are extremely useful for checking the operation of oscillators and transmitters and assessing the strength of radiated signals from antenna arrays.
• Built-in interference detection: In frequency counter mode, they track down powerful local signals that can disrupt accurate SWR measurements. When picked up by antenna under test, these signals may compete with the analyzer's internally generated test signal to make SWR readings appear artificially high. All handheld antenna bridges are subject to additive interference, but only the MFJ 213 antenna analyzers can detect the presence of an offending signal, display its severity, and identify the operating frequency!
• Powerful tunable signal source: They supply about 2-V peak-to-peak output across the entire tuning range. You can use this signal to drive mixers, low-power amplifier stages, or filters, and check antenna patterns on a range. Add a step attenuator, and they become low-level signal sources for testing receivers and pre-amps.
• User-friendly layout: Ergonomic design with the SO-239 antenna connector positioned on top of the case and everything else carefully arranged and clearly marked on front panel.
• Bulletproof construction: Rugged aluminum case, solid-state band switching, robust internal construction, and solid-state LCD display ensure that minor bumps and drops won't damage your unit.
• May be powered from four internal AA alkaline batteries or optional 110 V AC adapter (sold separately).
