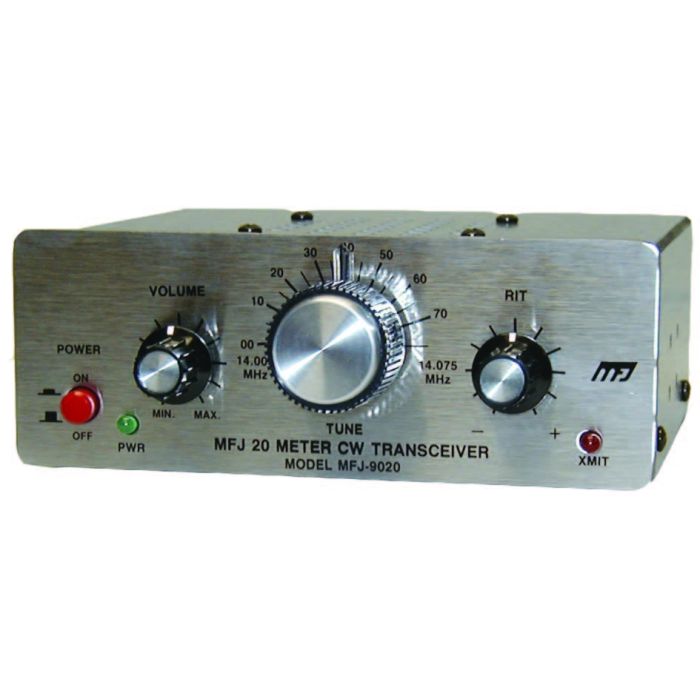

MFJ-9020 20 Meter CW Transceiver

Youll be amazed at how easy it is to work the world running only 5 watts!

MFJs CW radios are so light and compact you can take them anywhere -- trips, vacations, backpacking, even biking!

Heres what you get

  • Easy Operation: The most user-friendly radio youll ever own. Sets up in seconds -- no microprocessor mumbo jumbo.
  • Great Sensitivity: New hotter-than-ever superhet receiver brings weakest signals in at full volume (super-quiet FET post amp stage in the IF filter makes this the best CW receiver going).
  • Excellent Selectivity: Tight CW bandwidth crystal ladder filter fights unwanted QRM and noise to the maximum.
  • Smooth and Stable VFO: Wide-spaced reduction drive VFO capacitor glides slowly across the easy-to-read dial.
  • True RIT: RIT control has center-detent -- makes listening or calling off-frequency a snap!
  • Easy on your ears: Smooth AGC tracks only the signals you want to hear -- it never locks onto strong signals outside the audio bandpass. MFJs InstantRecovery AGC snaps the receiver back at full gain after transmitting.
  • Built-in speaker: High efficiency 3" speaker drive by 100 mW of audio gives great volume.
  • Rugged Transmitter: Motorola power amplifier transistor delivers full QRP output, tolerates opens and accidental shorts without damage.
  • SineWave Sidetone: Pure 700 Hz CW sidetone makes sending as much fun as receiving!
  • Semi-QSK: Set adjustable hold transmit/receive switching to suit your normal sending speed or set it for full QSK during contests.
  • Easy to Power: It uses little power -- only 50mA average on receive and 1.2 amp peak on transmit. Perfect for battery operation in remote locations!
  • Rugged Construction: MFJ CW radios are built on G-10 double sided plate-through PC boards in our plant. Rugged all-metal cabinet with brushed aluminum front panel and vinyl clad cover.

Receiver

Frequency Coverage: 14.000-14.075 MHz

Receiver Type: Single conversion superhet

VFO Frequency: 4 MHz

IF Frequency: 10 MHz

IF Selectivity: CW-bandwidth crystal ladder filter

AGC: Audio-derived, instant T/R recovery

Sensitivity: .35 uV or better

RIT: 1 KHz range

Audio: 100-mW to speaker or headphones

Audio Filter (optional): 700-Hz 4-pole active, unity gain

Receive Current: 50 mA

Transmitter

Keying: High-Z, Semi-QSK

Keyer (optional): Curtis 8044ABM Iambic

Sidetone: 700-Hz Sinewave

RF Power Output: > 4W, Vcc 13.8V, 50-Ohm Load

VSWR Tolerance: 3:1 VSWR

Transmit Current: 1.2 Amp at 13.8VDC

T/R Switch: Semi-QSK, adjustable hold
