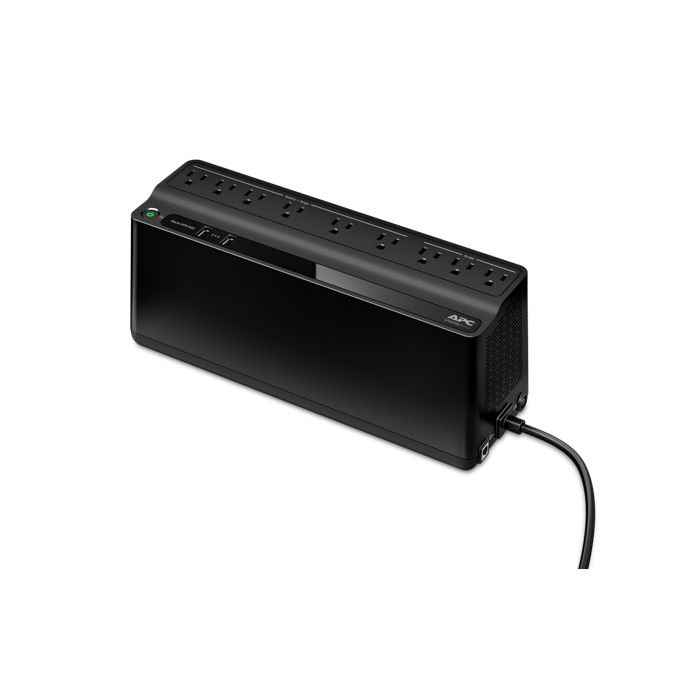

BE850M2

Output:

• Output power capacity

  450Watts / 850VA

• Max Configurable Power (Watts)

  450Watts / 850VA

• Nominal Output Voltage

  120V

• Output Frequency (sync to mains)

  50/60 Hz +/-1 Hz

• Topology

  Standby

• Waveform type

  Stepped approximation to a sinewave

• Output Connections

  (3) NEMA 5-15R (selector_surgetitle)

  (6) NEMA 5-15R (Battery Backup)

• Transfer Time

  6ms typical : 10ms maximum

• Nominal Input Voltage

  120V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  NEMA 5-15P

• Cord Length

  5ft ( 1.52meters )

• Input voltage range for main operations

  92 - 139V

• Number of Power Cords

  1

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  8hour(s)

• Expected Battery Life (years)

  2 - 5

• Battery Volt-Amp-Hour Capacity

  84

• Runtime

  View Runtime Graph

  View Runtime Chart

• Efficiency

  View Efficiency Graph

• Interface Port(s)

  USB

• Control panel

  LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

• Surge energy rating

  354Joules

• Maximum Height

  5.47inches ( 139mm , 13.9cm )

• Maximum Width

  12.87inches ( 327mm , 32.7cm )

• Maximum Depth

  4.13inches ( 105mm , 10.5cm )

• Net Weight

  9.04lbs. ( 4.1kg )

• Shipping weight

  9.7lbs. ( 4.4kg )

• Shipping Height

  7.72inches ( 196mm , 19.6cm )

• Shipping Width

  16.38inches ( 416mm , 41.6cm )

• Shipping Depth

  6.61inches ( 168mm , 16.8cm )

• Master Carton Units

  2.0

• Master Carton Weight

  21.61lbs. ( 9.8 )

• # of Layers per Pallet

  5.0

• # of Units per Layer per Pallet

  16.0

• Pallet Weight

  912.71lbs.

• Units per Pallet

  80.0

• SCC Codes

  1073130432526 7

• Operating Environment

  32 - 104 °F ( 0 - 40 °C )

• Operating Relative Humidity

  0 - 95% non-condensing %

• Operating Elevation

  0-10000ft ( 0-3000meters )

• Storage Temperature

  -15 - 45 °C

• Storage Relative Humidity

  10 - 90 %

• Storage Elevation

  0-50000ft ( 0-15000meters )

• Audible noise at 1 meter from surface of unit

  45.0dBA

• Approvals

  ENERGY STAR (USA)

• Standard warranty

  3 years repair or replace
