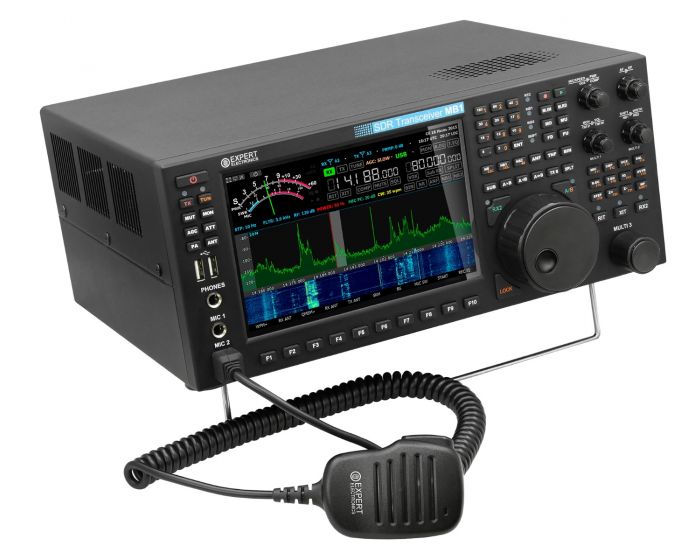

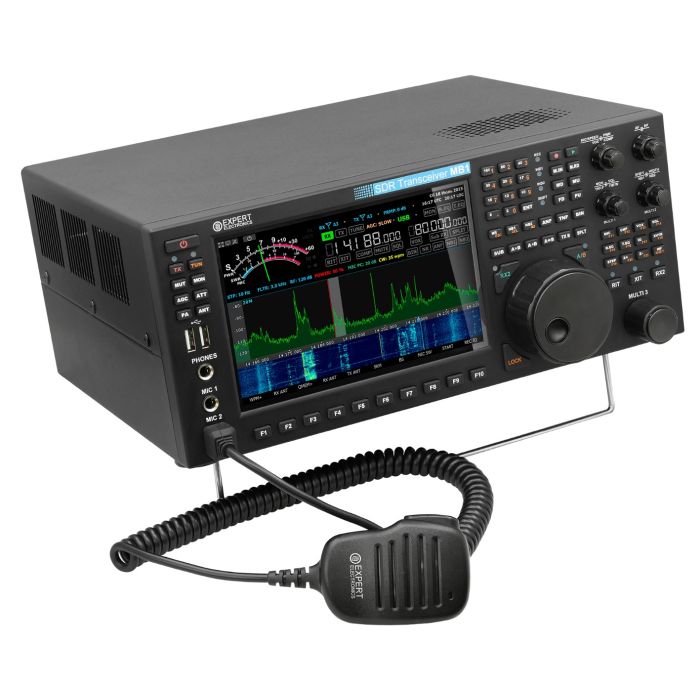

Expert Electronics MB1 PRIME (2021 Version)
The MB1 PRIME transceiver is a game-changer, it's a transceiver and a PC in a single package. It has a classic design, developed over several decades, with the most advanced DUC/DDC SDR technologies - Direct Down Conversion (DDC) and Direct Up Conversion (DUC) and a fully-featured high-end personal computer with an Intel Core i7 processor onboard.
The main advantage of the MB1 PRIME 2021 over its predecessor has improved TX IMD3 AND all-new PC hardware:
- GIGABYTE GA-IMB370TN Industrial ITX Motherboard
- Intel Core i7-9700 3.00GHz 8-Core/8-Thread CPU (4.70GHz Turbo Freq)
- 16GB DDR4 RAM
- Samsung 970 EVO 500GB SSD (Solid State Drive)
Purchase your new MB1 PRIME SDR Transceiver from GigaParts today!
Transceiver Features:
- Independent RX path based on DDC(Direct Down-Conversion) architecture
- Independent TX path based on DUC(Direct Up-Conversion) architecture
- 2software RXs + SubRX for each of them (4 slices total) + independent wideband Bandscope up to 80 MHz
- ExpertSDR2 software in two styles: Desktop style and MB1 display (for integrated GUI)
- Remote controloperation, using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
- TCI interfacefor seamless connection with third-party software
- Professional TX processing moduleprovides the most advanced tuning capability for voice operation
- High-quality IPS 7" touchscreendisplay with a 1280x800 resolution
- Supports any software applicable for Windows 10 OS
- ExtCtrlconnector to control external devices with 8 powerful keys with open collector
- COM-portfor connection of external devices, like PA, antenna switches etc.
- ALCconnector for external power amplifiers*
- Has a special XVTRconnector for VHF transverters** (SMA connector)
- 4separate programmable PTT outputs for external power amplifiers
- An opportunity to use the transceiver as a signal generator via DAC OUTconnector (SMA connector)
- An opportunity to use external filters in the middle of the RF path, using RX INand RX OUT (SMA connector)
- Monitoringdelay in CW mode is about 5-6 ms
- Input for external 10 MHz reference oscillator
- An opportunity to use the transceiver in SO2Vmode
- Full duplexor half duplex modes***
- 4 HF (UHF (SO-239) connector) and 2 VHF(N-type connector) antenna connectors
- Internal power-meter for HF and VHF bands and SWR-meter for HF band
- Recordand play on air fragments (IQ files) with a bandwidth of up to 312 kHz
- Internal ATU(Automatic Tuner Unit)
- The embedded power supply unit
* ** *** These functions are supported by the transceiver's hardware but is not implemented in the ExpertSDR2 software. They will be supported in the future ExpertSDR2 software releases.
PC Capabilities:
- Installation of digital modes software
- Installation of HAM and Contest logs
- Two CW Skimmers may be used on different bands
- The transceiver can connect to the LAN and the Internet
- Use of Internet applications (e.g., e-mail, Skype, ICQ, TV, etc.)
- Play video and audio files
- Watch TV via USB-receivers
- An opportunity to connect two external displays, keyboard, mouse
- An opportunity to connect external speakers to the PHONES jack on the front panel
Application area
- Full-function radio amateur transceiver
- Mobile contest-station
- Remote receipt point for the contests and other applications
- Spectrum analyzer with the bandwidth up to 80MHz
- Work with the external programs of digital connection types, CW Skimmer, etc.
Software
A version of ExpertSDR2 software with adapted GUI for 7" display was specially developed for the MB1 transceiver. At the present time software works in RX/TX mode and supports two independent receiving channels with the bandwidth up to 312 kHz. A DSP library developed by company Expert Electronics allowed improvement of receiving quality and higher the stability of the software.
Transceiver Features:
- Independent RX path based on DDC(Direct Down-Conversion) architecture
- Independent TX path based on DUC(Direct Up-Conversion) architecture
- 2software RXs + SubRX for each of them (4 slices total) + independent wideband Bandscope up to 80 MHz
- ExpertSDR2 software in two styles: Desktop style and MB1 display (for integrated GUI)
- Remote controloperation, using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
- TCI interfacefor seamless connection with third-party software
- Professional TX processing moduleprovides the most advanced tuning capability for voice operation
- High-quality IPS 7" touchscreendisplay with a 1280x800 resolution
- Supports any software applicable for Windows 10 OS
- ExtCtrlconnector to control external devices with 8 powerful keys with open collector
- COM-portfor connection of external devices, like PA, antenna switches etc.
- ALCconnector for external power amplifiers*
- Has a special XVTRconnector for VHF transverters** (SMA connector)
- 4separate programmable PTT outputs for external power amplifiers
- An opportunity to use the transceiver as a signal generator via DAC OUTconnector (SMA connector)
- An opportunity to use external filters in the middle of the RF path, using RX INand RX OUT (SMA connector)
- Monitoringdelay in CW mode is about 5-6 ms
- Input for external 10 MHz reference oscillator
- An opportunity to use the transceiver in SO2Vmode
- Full duplexor half duplex modes***
- 4 HF (UHF (SO-239) connector) and 2 VHF(N-type connector) antenna connectors
- Internal power-meter for HF and VHF bands and SWR-meter for HF band
- Recordand play on air fragments (IQ files) with a bandwidth of up to 312 kHz
- Internal ATU(Automatic Tuner Unit)
- The embedded power supply unit
* ** *** These functions are supported by the transceiver's hardware but is not implemented in the ExpertSDR2 software. They will be supported in the future ExpertSDR2 software releases.
PC Capabilities:
- Installation of digital modes software
- Installation of HAM and Contest logs
- Two CW Skimmers may be used on different bands
- The transceiver can connect to the LAN and the Internet
- Use of Internet applications (e.g., e-mail, Skype, ICQ, TV, etc.)
- Play video and audio files
- Watch TV via USB-receivers
- An opportunity to connect two external displays, keyboard, mouse
- An opportunity to connect external speakers to the PHONES jack on the front panel
Application area
- Full-function radio amateur transceiver
- Mobile contest-station
- Remote receipt point for the contests and other applications
- Spectrum analyzer with the bandwidth up to 80MHz
- Work with the external programs of digital connection types, CW Skimmer, etc.
Software
A version of ExpertSDR2 software with adapted GUI for 7" display was specially developed for the MB1 transceiver. At the present time software works in RX/TX mode and supports two independent receiving channels with a bandwidth up to 312 kHz. A DSP library developed by the company Expert Electronics allowed improvement of receiving quality and higher the stability of the software.
RF ADC, bit @ MHz | 16 @ 160 |
ADC type | LTC2209 |
RX Frequency range, MHz | 0.1...65; 95...155 |
Independent software receivers | 2 + 2 SubRX |
Sample rate, kHz @ bit | 39; 78; 156; 312 @ 24 |
Bandscope, MHz | 80 |
RX HF filters, MHz | LPF: 65 or 9 x BPF |
RX VHF filters, MHz | WideRX: 95-155 or SAW filter for 2M: 144-148 |
BDR on HF, dB | 130 |
BDR on VHF, dB | 114* |
Sensitivity, uV | 0.2 |
DR IMD3, not less dB | 98 |
RMDR, dB | 110 |
ATT/Preamp, dB | -20; -10; 0; +10 |
VHF LNA, dB | 22 |
RF DAC, bit @ MHz | 14 @ 640 |
TX Frequency range, M | All amateur bands 160-6; 2 |
Output power on HF, W | 100 |
Output power on 6M, W | 50 (up to 60) |
Output power on VHF, W | 50 |
TX IMD3, dB | 25-30 on HF/VHF |
Local oscillator TCXO, MHz +/- ppm | 20 +/- 0.5 |
External 10 MHz oscillator input | + |
Built-in audio codec, bit | 24 |
RF input/output | 4HF (SO 239) |
2VHF (N-type) | |
1XVTR, ADC IN, DAC OUT (SMA) | |
Built-in PC | Windows 10 OS |
CPU: Intel Core i7-9700 | |
RAM: 16GB DDR4 | |
SSD: 500GB SSD | |
IPS 7" 1280x800 touchscreen display | |
AC voltage range, V, Hz | ~100...240; 50...60 |
Power consumption RX/TX, W | 320 |
Operating temperature, °C/°F | 0...+50/ +32...+122 |
Dimensions L x W x H, cm/inches | 32.5 x 28.5 x 15.0/ 12.6 x 9.84 x 5.51 |
Weight, kg/lbs | 9.3/ 22 |
Specifications are subject to change without notice or obligation and specifications are only guaranteed within the amateur radio bands. |
- MB1 PRIME (2021 Version) + ATU
- PTT-microphone MD15
- Power Supply Cable to connect the transceiver to an AC mains network
- Backup fuse 5A
