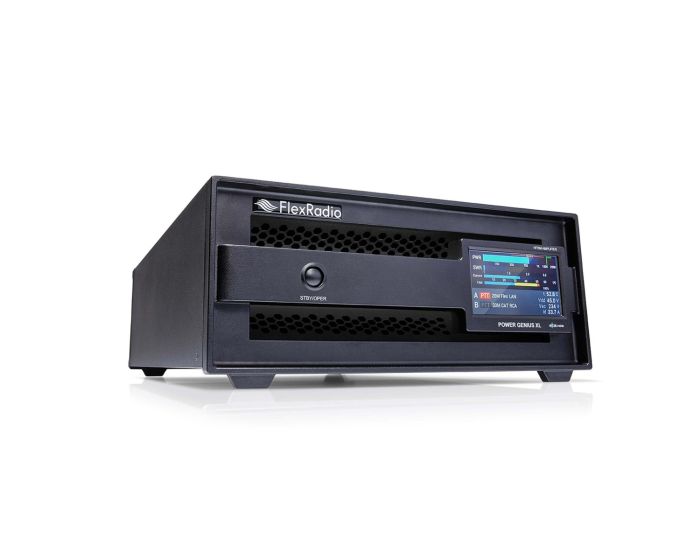

FlexRadio Power Genius XL Solid State SO2R-Capable Amplifier

No free freight
SKU
ZFL-PGXL
$7,699.00
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

FlexRadio Power Genius XL Solid State SO2R-Capable Amplifier

THERE’S POWER. AND THEN THERE’S POWER.

Chances are that your existing radio does everything promised and then some. It functions flawlessly and performs at a level with little left to be desired. But one can never have too much power. Which is where the Power Genius XL™ comes into play

The Power Genius XL takes your perfectly good radio and amplifies its performance exponentially. It’s exceptionally clean and delivers full legal-limit power at 100% ICAS duty cycle. And it’s the only fully SO2R-capable amplifier on the market with 70dB nominal isolation between transceiver inputs. If that’s not enough, it is also monitored and automated through an integral Ethernet connection. It takes your existing radio and turns it into a legal-limit beast.

1500W OF POWER FROM THE COMFORT OF YOUR OWN WHEREVER

Without trying to oversimplify the genius of the Power Genius XL, it’s an amplifier that you literally just turn on and operate from anywhere.

Fully integrated with FlexRadio’s SmartLink® Remote, you have on-the-go amplified power, no matter where you are. This means all controls and meters are accessible from anywhere, provided you have an Internet connection.

PLUG AND PLAY AND TAKE ON THE PLANET

The Power Genius XL is network capable with an Ethernet connection. This means it completely and seamlessly integrates with any FLEX-6000™ Series radio. And the fully integrated meters and controls allow the amp to be controlled from SmartSDR™, whether on SmartSDR for Windows, iOS, or your Maestro™. All through your network. When paired with a FLEX 6000 Series radio, it’s a plug & play SO2R that will greatly reduce your station costs. Yes, it’s really that simple

MODERN AMPLIFIER FOR MODERN TRANSCEIVERS

The Power Genius XL is not just Flexible, it complements any modern transceiver in the shack. Enhance your experience by interfacing with popular transceivers from Icom, Yaesu, Kenwood, and more.

GENIUS SOLUTIONS / GENIUS DUO

GigaParts is Proud to Partner with our friends at FlexRadio to make the Genius Solution Line by 4O3A available to our customers in the United States.

  • 1.8–54 MHz coverage (160-6m)
  • Full legal power 1500W (100% duty cycle ICAS), in all modes, up to 2000W
  • First ever MEffA™ system (Maximum Efficiency Algorithm) control efficiency as a function of output power
  • Fully SO2R capable — 70dB nominal isolation between exciter inputs
  • Smart control of cooling — real-time settings of drain voltage, drive, and fan speed for best thermal performance
  • Exceptional spurious performance owing to diplexed filters for carrier and harmonics
  • Ultrafast SWR protection
  • Remote control with desktop application in LAN or WAN networks
  • CAT, Band decoder, LAN interface for operation with other exciters
  • The Amplifier is shipped without a power connector on the end of the power line. Customers are urged to work with their electrician to finalize AC power delivery.

Amplifier Specifications

  • 160 – 6M Ham Bands
  • RF Power Output: 1500W (ICAS)*
  • Exciter Drive Level: 50W Typical (US version)
  • Transistors: MRF-1K50H x 2
  • Exciter Inputs: SO-239 x 2
  • Antenna Outputs: SO-239 x 2
  • Antenna Impedance: 50 Ohm Unbalanced
  • Cooling: Thermally Controlled Fans

 Mechanical

  • Dimensions: 6”H x 14” W x 20” D (15.25 x 35.7 x 50.8 cm)
  • Weight: 37.4 lbs. (17kg)
  • Operating Temp: -25C to +40C

 Electrical

  • Input Voltage: 90 – 250VAC, 50/60 Hz*
  • Power Supply: Modular Internal Switching
  • Max A/C Current: 15A @ 220VAC or 120 VAC.

 Connections

  • A and B Exciter Input
  • A and B Output
  • A and B -60dBc RF Sampling Port
  • LAN connection
  • A and B PTT In
  • A and B PTT Out
  • A and B CAT
  • A and B CI-V
  • A and B Band Data IN

*220 VAC supply required for full power. Maximum of ~750W when using the 180 VAC or less.
