Hakko FX-951 Soldering Station - FX951-66

• Temperature Range - 200° - 450°C (400° - 840°F)
• Ceramic Heated Tips for Quick Heat Conduction
• Fast Thermal Recovery
• Set Temperature Lockout Key
• 30 Minute Automated Shutoff
• Low Temperature Alarm

*No tips included*

Accepts T15 Series Tips

• T15-B Conical Tip
• T15-J02 Bent Tip
• T15-1603 Chisel Tip

 Station

•  Power Consumption:   75W, 120V
•  Temperature Range:   200° - 450°C (400° - 840°F)
•  Temperature Stability:   ±5°C (±9°F)
•  Output Voltage:   24V
•  Outer Dimensions:   80(W) x 130(H) x 131(D) mm  (3.1 x 5.1 x 5.1 in.)
•  Weight:   2.6 lb. (1.2 kg.)

 Soldering Iron - Handpiece

•  Tip-to-Ground Resistance:   < 2 OHMS
•  Tip-to-Ground Potential:    < 2mV
•  Length of Cord:   3.9 ft. (1.2 m)
•  Total Length (w/o cord):   188 mm (7.4 in.) with 2.4D tip
•  Weight (w/o cord):   30g (0.067 lb./1.07 oz.) with 2.4D tip

*No tips included*

Accepts T15 Series Tips

• T15-B Conical Tip
• T15-J02 Bent Tip
• T15-1603 Chisel Tip

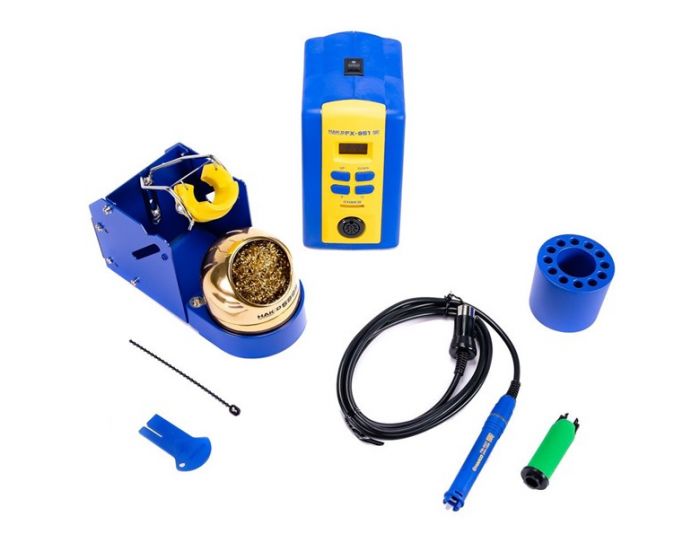

• Soldering Station:   FX-951
• Soldering Iron:   FM2027-02
• Power Cord:   B2419
• Control Card:   B2972
• Sleeve Assembly (Grip), anti-bacterial, green:   B3219
• Heat Resistant Pad:   B2300
• Iron Holder:   FH200-01
• Connecting Cable:   B3253
• Tip Tray:   B2756

*No tips included*
