MFJ Power strip, 40A, 10 pole w/meter - MFJ-1129

MFJ DC Multiple Outlet Panels

MFJ DC Multiple Outlet Panels are power distribution strips that are used in ham shacks and on test benches around the world. They provide multiple high and low current DC outlets for transceivers and accessories from your main power supply. Using a proper outlet panel keeps your cabling neat, organized and safe! Using outlet panels prevents fire hazards by keeping wires from tangling up and shorting out.

MFJ DC Multiple Outlet Panels are available featuring super heavy-duty 5-way binding posts for high-current banana plugs and/or Anderson PowerPole® connectors, the genderless, polarized and color-coded connectors that are the 12 Vdc standard for ARES and RACES emergency stations.

Also available are MFJ strips that include low power binding posts, or switched outlets, DC meters, and LED indicators. All panels offer mounting ears, wing nut grounding posts, and RF shielding with RF bypassed outputs.

Modernize your DC power distribution system with MFJ DC Multiple Outlet Panels from GigaParts

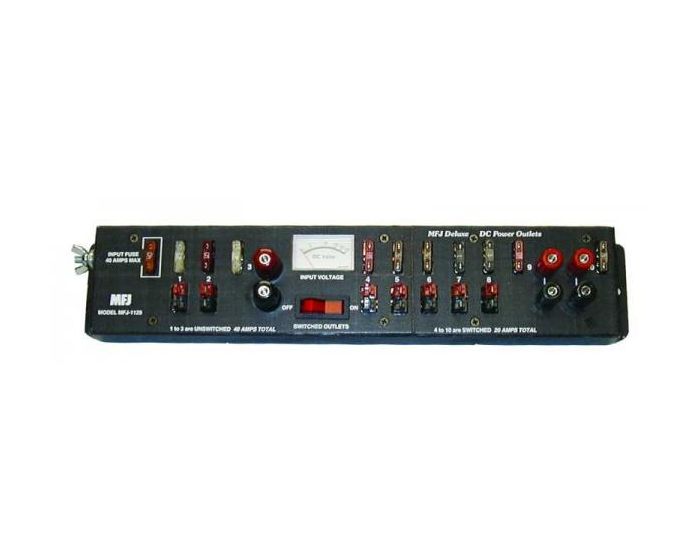

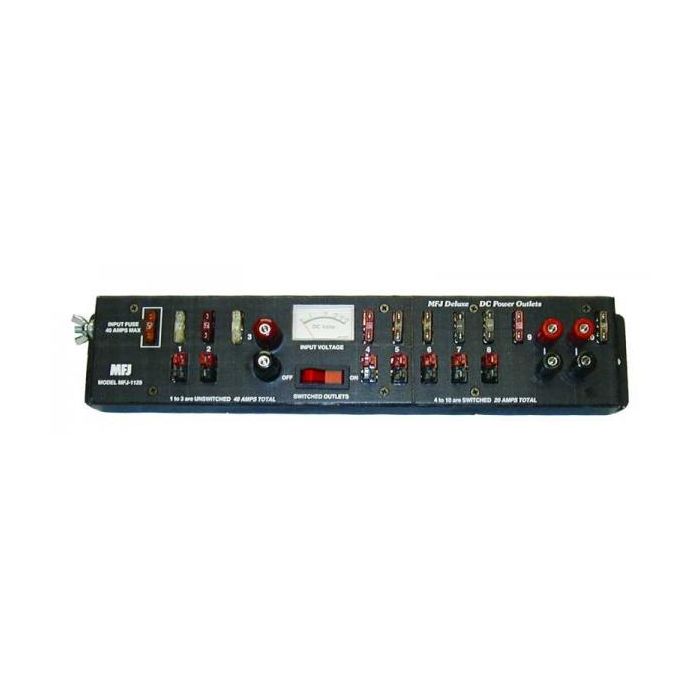

MFJ DC Power Strip

Get the best of both connectors!

10 outlets. Installed fuses: two 1A, three 5A, three 10A, one 25A, one 40A. Outlets 1, 2, 4-8 are Anderson PowerPole®. Outlet 3 is a 35A high current binding post; outlet 9, 10 are 15A binding posts.

Built-in 0-25 VDC Voltmeter. ON/OFF switch for outlets 4-10, 20 amps total. Outlets 1, 2, 3 unswitched, handle 40 amps total. Includes 7 pairs of PowerPole® 14 40A contacts, 10 fuses (2 ea, 1,5,10,25,40). 121/2Wx11/4Hx23/4D in.


Each Anderson PowerPole® outlet can carry up to 40 amps. You can fuse each outlet as needed to protect your accessories or transceiver. The main fuse is 40 amps.
The standard color coded fuses simply plug in from outside. They are widely available ATC/ATO automobile fuses and can be used for 6, 12, 24 VDC systems.


The heavy duty DC input cable is built-in so you don't have to pay extra just to use it! Its a high-current carrying capacity eight gauge, flexible, stranded, six foot (can be shorten) cable with 5/16 ring terminals. It's color coded Red and Black.

Extra Anderson PowerPole® connectors, contacts and fuses are included at no extra cost, unlike lesser competitive products.

A massive 0.062 inch thick double sided plated through PC board with wide traces is used. The current path has an equivalent current carrying capacity of an enormous 4 ounce trace.

RF-tight aluminum cabinet has mounting ears and ground post with wing nut.



Brand: MFJ
Manufacturer's Part Number: MFJ-1129
GigaParts Number: ZMF-1129
Part Type: DC Multiple Outlet Panels
Product Line: MFJ DC Multiple Outlet Panels
High Current Maximum: 40 A
High Current Power Poles: Yes
High Current Power Pole Outputs: 2
High Current Binding Posts: Yes
High Current Binding Post Outputs: 1
Low Current Output On/Off Switch: Yes
Low Current Power Poles: Yes
Low Current Power Pole Outputs: 5
Low Current Binding Posts: Yes
Low Current Binding Post Outputs: 2
Voltage Monitor: No
Audible Voltage Alarm: No
Built-In Voltmeter: Yes
Programmable Fault Thresholds: No
Input Cable Installed: Yes
Fused Input: Yes
Individually Fused Outputs: Yes
Combined Fused Outputs: No
Fuses Included: Yes
Outlet Panel Width: 12.500 in
Outlet Panel Height: 1.250 in.
Outlet Panel Depth: 2.750 in.
UPC: 650619003505
Quantity: 1 Piece
