MFJ-945E Manual tuner + SWR 18-60Mhz 60/300W
Huntsville:
Las Vegas:
Distribution Center:
HF/6m Mobile Antenna Tuner with Wattmeter
Covers 1.8 to 60 MHZ
New! Now covers 6-meter band and has antenna bypass Switch!
Don't go mobile without it!
Don't leave home without this mobile tuner! Have an uninterrupted trip as MFJ-945E extends antenna bandwidth and eliminates needs to stop, go outside and readjust your mobile whip. Handles 300 Watts.
Super Compact Size
The small 8W x 2H x 6D inch black aluminum cabinet uses little room. The Cross-Needle meter shows SWR, forward and reflected power -- at a glance. It reads forward/reflected power in 300/60 and 30/6 Watt ranges. ON/OFF lamp switch. Requires 12 volts for lamp. (MFJ-1312D)
Fast, easy tuning
Convenient placement of controls makes tuning fast and easy while in motion. Antenna switch lets you bypass tuner and still use the SWR/Wattmeter.
Back panel has SO-239 connectors for transmitter and coax and a wing nut post for your ground.
1000 Volt capacitors
Efficient airwound inductor gives you lower losses and more Watts out. 1000 Volt capacitors. Covers 1.8 to 60 MHz. Use it at home in your base station when you're not in your RV, boat or car.

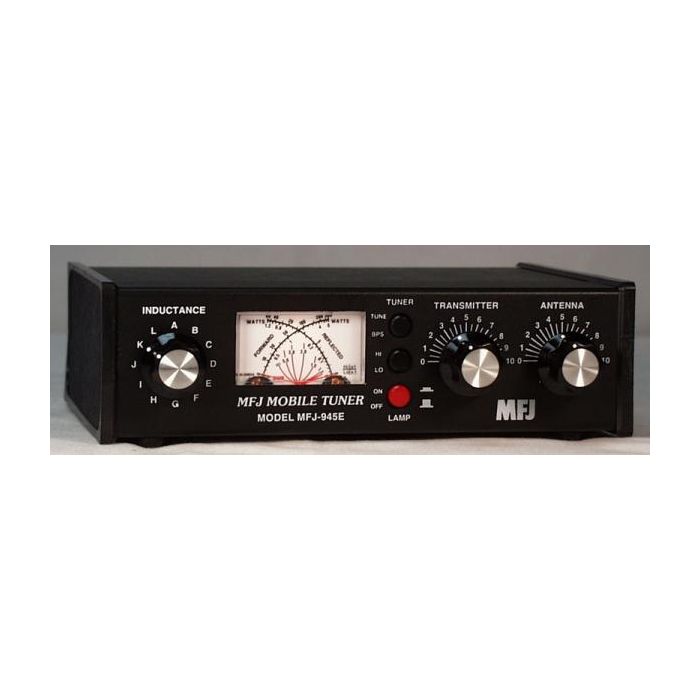

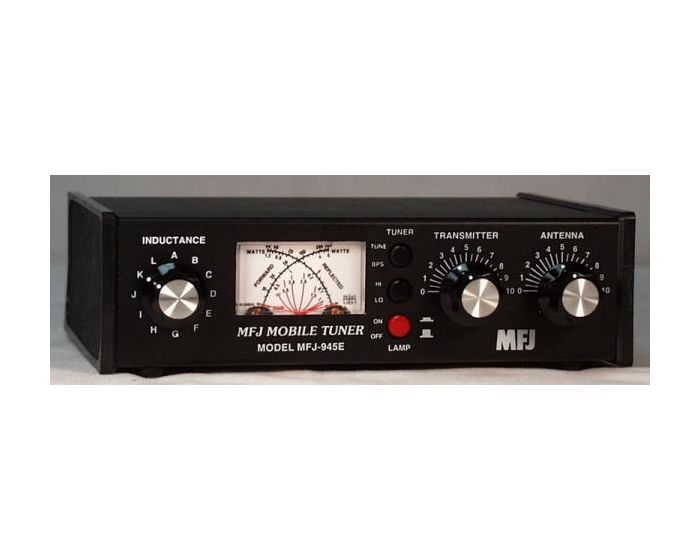

MFJ-945E Mobile Tuner
MFJ-945E Mobile Antenna Tuners cover 1.8 to 60 MHz and feature an antenna bypass switch. You'll be sorry if you leave home without one of these mobile tuners! You'll have no more annoying stop-and-go to readjust your mobile whip, as these tuners extend your antenna's bandwidth.
Don't be fooled by their small size! Their 8 in. wide x 2 in. high x 6 in. deep black aluminum cabinet takes up little room but yet it still handles up to 300 watts.
A convenient placement of the controls on MFJ 945E mobile tuners makes tuning fast and easy while in motion. The cross-needle meter shows SWR, forward, and reflected power, all at a glance (read in 300/60 and 30/6 watt ranges). Use one of these handy tuners at home in your base station when you're not in your RV, boat or car.
Additional features include:
* On/off lamp switch (requires 12 V source for illumination)
* Antenna switch lets you bypass tuner and still use the SWR/wattmeter
* Back panel has SO-239 connectors for transmitter and coax and a wing nut post for ground
* 1,000 V capacitors
* Efficient air-wound inductor gives you lower losses and more watts out
* MFJ mobile mounting bracket is available separately to complete your installation
| Brand: | MFJ |
| Manufacturer's Part Number: | MFJ-945E |
| GigaParts Number: | ZMF-945E |
| UPC: | 650619002256 |
| Part Type: | Antenna Tuners |
| Product Line: | MFJ 945E Mobile Tuners |
| Antenna Tuner Type: | Manual |
| Antenna Tuner Location: | Mobile |
| Weather-Resistant: | No |
| Mobile Whip Tuner: | No |
| Tuner Maximum Power Rating: | 300 watts |
| Frequency Range: | 1.8-54 MHz |
| Tuner Inductor Type: | Switched |
| Tuner Capacitors: | 2 |
| Tuner Bypass Switch: | Yes |
| Tuner Control Type: | External |
| Internal Dummy Load: | No |
| Internal Balun Type: | None |
| DC Power Required: | No |
| Tuner Width: | 8.000 in. |
| Tuner Height: | 2.000 in. |
| Tuner Depth: | 6.000 in. |
| Tuner Weight: | 2.50 lbs. |
| Lowest Band of Operation | Highest Band of Operation |
|---|---|
| 160 meters | |
| 6 meters | |
| 40 meters | |
| 10 meters | |
| 60 meters | |
| 80 meters |
