MFJ-969 Manual tuner + SWR 18-50Mhz 30/300W

SKU
ZMF-969
$270.99
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

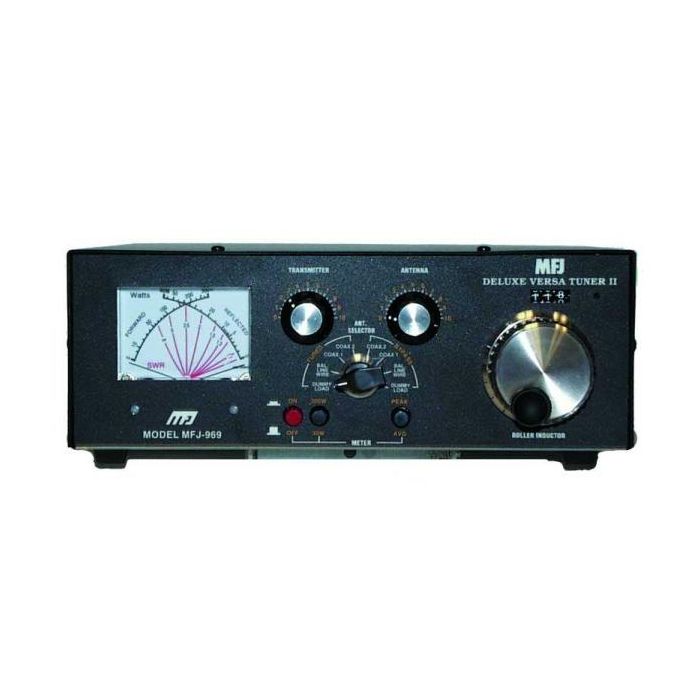

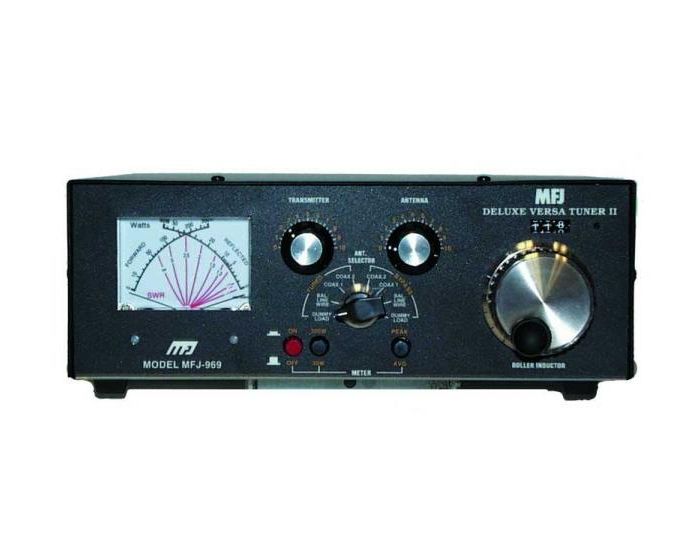

MFJ-969 Manual Tuner + SWR 18-50Mhz 30/300W

HF/6M 300W Roller Inductor Antenna Tuner

The MFJ-969 Antenna Tuner gives you MFJ's superb AirCore Roller Inductor and full 6 meteres through 160 Meter coverage!

You get everything you've ever wanted including...300 Watts PEP SSB full featured antenna tuner, widest matching range, full size lighted Cross-Needle SWR/Wattmeter reads true peak forward power, QRM-Free PreTune, 8 Position antenna switch, built in 50 Ohm dummy load, heavy duty 4:1 balun -- all in a tough, attractive cabinet. MFJ's famous 1 year No Matter What warranty.

The MFJ-969 Antenna Tuner's AirCore Roller Inductor, gear driven turns counter and spinner knob gives you exact inductance control for absolute minimum SWR. MFJ's exclusive AirCore Roller Inductor has an air core that can't burn up! You get ultra-high-Q, the lowest loss, highest efficiency and highest power handling of any roller inductor in ham radio.

MFJ's exclusive Self-Resonance Killer Keeps potentially damaging self-resonances away from your frequency. Huge self-cleaning wiping contact gives you excellent low-resistance connection without contact arcing or burning.

Solid 1/4 inch brass shaft, self-align bearings -- smooth non-binding operation.

The MFJ-969 Antenna Tuner covers all frequencies from 160 Meters thru 6 Meters, including the "magic band" -- the widest matching range of any full featured antenna tuner. Match dipoles, verticals, inverted vees, random wires, beams, mobile whips, SWL receiving antennas -- nearly any antenna. You can use coax cable, random wire or balanced lines. Has heavy duty 4:1 balun.

MFJ's new ActivePeak reading Circuit accurately reads true peak forward power -- an MFJ exclusive.

MFJ's lighted Cross Needle SWR/Wattmeter reads SWR, true peak forwards and average reflected power simultaneously on 300 Wat or 30 Watt ranges.

Lamp has on/off switch and uses 12VDC or 110 VAC with MFJ-1312D, ActivePeakReading Circuit can also use a 9 volt battery.

MFJ's 8 positions let you select two coax fed antennas, random wire/balanced line or built-in dummy load for use through your MFJ-969 or direct to your rig.

MFJ's QRM-Free-PreTune lets you pre-tune MFJ-969 off the air into a built in dummy load without causing QRM. Pre-tuning into a dummy load makes tuning your actual antenna quick and easy!

The MFJ-969 Antenna Tuner has a full size non-inductive 50 Ohm dummy load. You'll find it handy for tuning, testing, repairing rigs, setting power level, adjusting mic gain, etc.

The MFJ-969 has a new tough aluminum case has a scratch proof multi-colored lexan front panel. It measures a compact 3½H x 10½D x 9½W inches.

UPC: 650619002096  Michael Brigmond Brand Manager GigaParts 11/15/2022



Brand: MFJ
Manufacturer's Part Number: MFJ-969
GigaParts Number: ZMF-969
UPC: 650619002096
Part Type: Antenna Tuners
Product Line: MFJ 969 Deluxe Versa Tuner II Antenna Tuners
Antenna Tuner Type: Manual
Antenna Tuner Location: Desktop
Weather-Resistant: No
Mobile Whip Tuner: No
Tuner Maximum Power Rating: 300 watts
Frequency Range: 1.8-54 MHz
Tuner Inductor Type: Roller
Tuner Capacitors: 2
Tuner Bypass Switch: Yes
Tuner Control Type: External
Internal Dummy Load: Yes
Internal Balun Type: Voltage
DC Power Required: Yes
Tuner Width: 9.500 in.
Tuner Height: 3.500 in.
Tuner Depth: 10.500 in.
Tuner Weight: 5.60 lbs.



Lowest Band of Operation Highest Band of Operation
160 meters
  6 meters
40 meters
  10 meters
60 meters
80 meters
