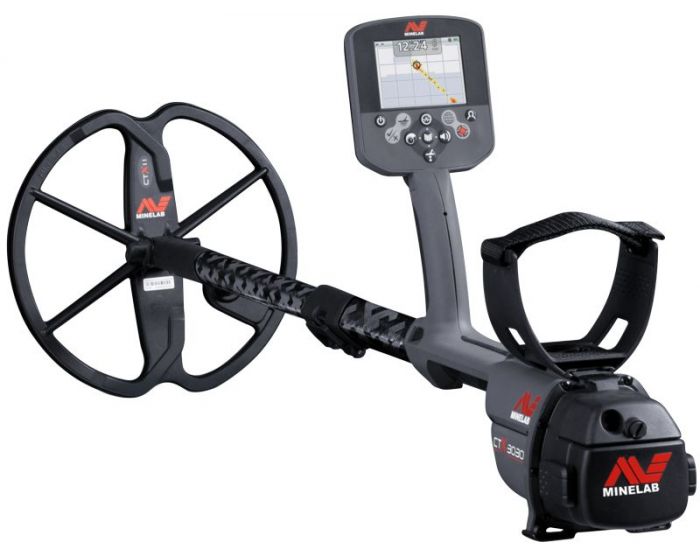

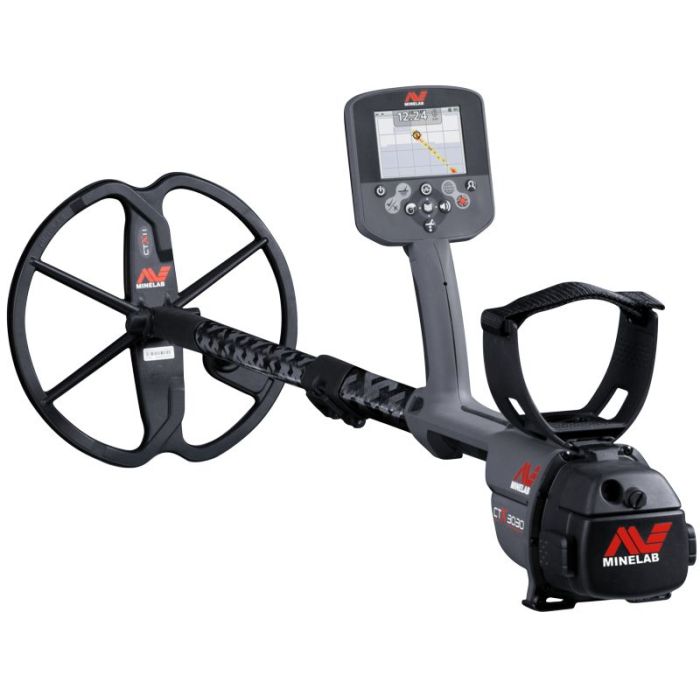

The waterproof all-terrain CTX 3030 is the ultimate high performance TREASURE detector

Discover more historical treasures with the most accurate target identification available. With a full color LCD and advanced Target Trace discrimination you will find more treasure, even among-st junk littered areas, in all ground conditions.

Enjoy the freedom of wireless audio with the versatility of built-in speaker and headphone options.

With Minelab’s exclusive integrated GPS, you can navigate to your favorite locations and record your finds. Transfer your detecting information onto Google Maps using the XChange 2 PC application.

‘Switch on and go’ simplicity, five preset Search Modes and many automatic functions make it easy for the beginner to get started. Advanced features are easily accessible at the touch of a button for the experienced treasure hunter.

With the unrivaled performance of the CTX 3030 you’ll experience The Future of Discovery!

*Standard headphones, removable headphone module and WM 10 module are not waterproof.

^WM 10 supplied with Standard Pack only. Available as accessory for Starter Pack.
  • Application Coin, Relic, Jewelry & Beach (waterproof 10ft)
  • Technology FBS 2, Smartfind 2, GPSi, Wi-Stream
  • Frequency/Transmission Multiple frequencies: 1.5 - 100kHz
  • Coil (standard) 11-inch waterproof Double-D smart coil
  • Audio Output Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only)
  • Headphones Supplied KOSS UR30 (100 ohm) supplied with detector (non-waterproof )
  • Visual Display Full color LCD with backlight and adjustable brightness (1–10)
  • Backlight Yes
  • USB Connectivity XChange 2 (via USB) compatible with Windows XP, Vista and 7
  • Memory Settings saved automatically while detecting and remain until changed or reset
  • Depth Indication Accurate gauge active in normal detecting and Pinpoint mode
  • Detect Modes 10 fully customizable, including 5 preset (Coins, Beach, Relic, Silver & High Trash)
  • Discrimination Smartfind 2TM 2 dimensional color discrimination: Ferrous 35, Conductivity 50 - 20 fully customizable discrimination patterns (2 per Search Mode)
  • Timings -
  • Audio tone Customizable Tone ID Profiles - 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined
  • Audio Type Normal, Long, Smooth & Pitch Hold
  • Ground Balance Auto Compensation and Auto Ground Balance
  • Ground Balance Type -
  • Trash Density -
  • Pinpoint Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing
  • Sensitivity Adjust Auto and Manual (1–30)
  • Tune / Noise Cancel Manual & Automatic (11 channels)
  • Threshold Level adjustment (1–50), Pitch adjustment (1–30)
  • Target Volume Adjust Limit & Gain (1 to 30)
  • Battery Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only
  • Low battery alert Audio & visual indication.
  • Length Min 37 in. (940 mm) – Max 55.3 in. (1405 mm)
  • Weight 5.20 lbs (2.36 kgs) including Li-ion battery pack
  • Warranty 3 years control box & coil
