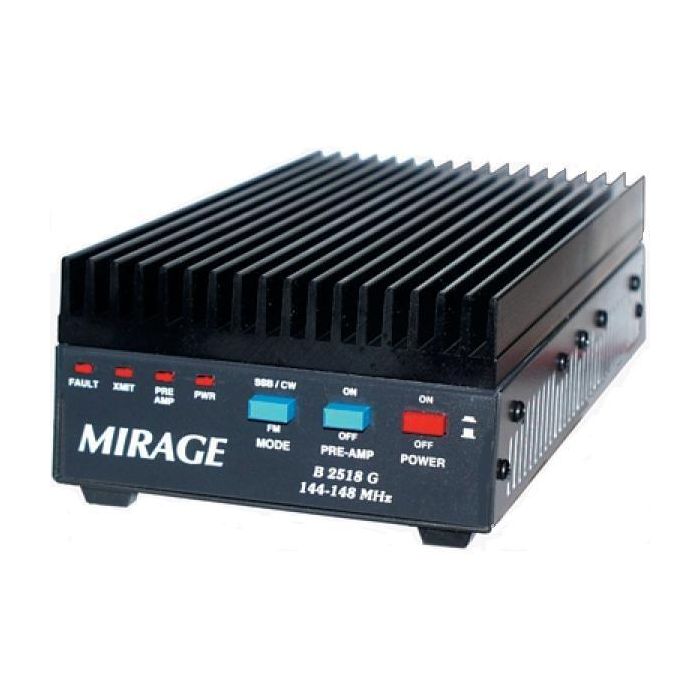

Mirage B-2518-G 25W Amp In 160W Out FM/SSB/CW/GFET
Take your VHF operations to the next level with the Mirage B-2518-G 2 Meter Amplifier, the most popular solid-state amplifier on the market. With 160 watts of output power, you can communicate with distant stations and sound better than ever before on FM, digital, SSB, and CW modes.
This amplifier features a low noise 20 dB GaAsFET preamplifier with a 1 dB noise figure that pulls out weak signals from almost any 2-meter antenna system. And when operating on the low end of the band, the exclusive Active-Bias™ system ensures crisp and clear SSB voice with no splatter or distortion.
The B-2518-G is also fully protected with built-in circuits that automatically bypass the amplifier in case of high SWR or excessive input power. LED indicators alert you of any faulty conditions. And with an internal RF sensing system, the amplifier switches to transmit mode when the power switch is on, while the mode switches and adjustable time delays provide smooth transmit-to-receive switching for every mode.
This amplifier also features an extra heavy-duty custom heat sink that spans the entire depth of the chassis for maximum cooling efficiency. And with a rear panel connector, the B-2518-G can be remotely controlled and placed out of the way.
Compact and easy to use, the Mirage B-2518-G 2 Meter Amplifier is ideal for your 2-meter mobile or base station. Don't settle for weak signals and limited range – upgrade your VHF radio with the B-2518-G and start communicating with confidence. Michael Brigmond Channel Manager GigaParts MFJ Mirage 4/6/2023
Mirage B-2518-G Amplifier - 25W in 160W out, 2M, FM/SSB/CW/GFET, 144-148MHz
MIRAGE’s most popular amplifier gives you 160 Watts of output power for just 25 W in from your base/mobile rig!
The B-2518-G is ideal for your 20 to 60 Watt 2 Meter mobile or base station.
You will talk further, longer, clearer on all modes - FM, SSB, CW- hear weak signals better than you’ve ever heard before!
You get a low noise 20 dB preamp with an excellent 1 dB noise figure for pulling out weak signals.
B-2518-G is fully protected with features found in expensive commercial amplifiers.
High SWR or excessive input power can damage your amplifier. Protection circuits automatically bypass your amplifier to prevent damage and an LED lights to warn you.
An Active-Bias™ system keeps SSB voice crisp and clear for fantastic operation. Other amplifiers using conventional bias methods tend to produce splatter and distortion as power level changes. This amp with Active-Bias™ doesn’t exhibit the problem.
Adjustable time delay gives you smooth transmit/receive switching. Remote external keying. Extra heavy duty custom heatsink spans the entire cabinet. Draws 17 - 22 A from 13.8 VDC. Compact 12" x 3" x 5.5".
Mirage B-2518-G Amplifier
25W in 160W out, 2M, FM/SSB/CW/GFET, 144-148MHz
Features and Benefits of the Mirage B-2518G:
Features:
- 160 Watts of output power
- Low noise 20 dB preamp
- Fully protected with features found in expensive commercial amplifiers
- Active-Bias™ system
- Adjustable time delay
- Remote external keying
- Extra heavy duty custom heatsink
- Draws 17-22 A from 13.8 VDC
- Compact size: 12" x 3" x 5.5"
Benefits:
- Amplifies 20-60 Watt 2 Meter mobile or base station signals
- Provides clearer and longer communication on all modes
- Allows for better reception of weak signals
- Protects amplifier from high SWR or excessive input power damage
- Produces crisp and clear SSB voice without distortion
- Smooth transmit/receive switching
- Easy remote keying
- Efficient cooling for extended operation
- Convenient and portable design for space-saving use.
Said Differently:
MIRAGE’s most popular amplifier gives you 160 Watts of output power for just 25 W in from your base/mobile rig! The B-2518-G is ideal for your 20 to 60 Watt 2 Meter mobile or base station. You will talk further, longer, clearer on all modes - FM, SSB, CW- hear weak signals better than you’ve ever heard before! You get a low noise 20 dB preamp with an excellent 1 dB noise figure for pulling out weak signals. B-2518-G is fully protected with features found in expensive commercial amplifiers. High SWR or excessive input power can damage your amplifier. Protection circuits automatically bypass your amplifier to prevent damage and an LED lights to warn you. An Active-Bias™ system keeps SSB voice crisp and clear for fantastic operation. Other amplifiers using conventional bias methods tend to produce splatter and distortion as power level changes. This amp with Active-Bias™ doesn’t exhibit the problem. Adjustable time delay gives you smooth transmit/receive switching. Remote external keying. Extra heavy duty custom heatsink spans the entire cabinet. Draws 17 - 22 A from 13.8 VDC. Compact 12" x 3" x 5.5".
Amp Remote Control Remotely control your B-2518-G / B-5018-G / B-1018-G and place it out of the way. An RC-2, Remote Control lets you turn power on/off, preamp on/off, select SSB/ FM. Other Mirage amps use RC-1. Call Mirage for positive compatibility.
|
MIRAGE 160 Watts on 2 Meters
Power Curve - typical output power in Watts
|
| Watts In |
0.25 |
0.5 |
3 |
5 |
8 |
10 |
15 |
25 |
35 |
50 |
| B-1018-G Watts out |
25 |
50 |
140 |
150 |
160 |
160 |
|
|
|
|
| B-2518-G Watts out |
5 |
7 |
40 |
60 |
80 |
100 |
125 |
160 |
160 |
160 |
| B-5018-G Watts out |
|
2 |
15 |
25 |
40 |
50 |
70 |
100 |
130 |
160 |
