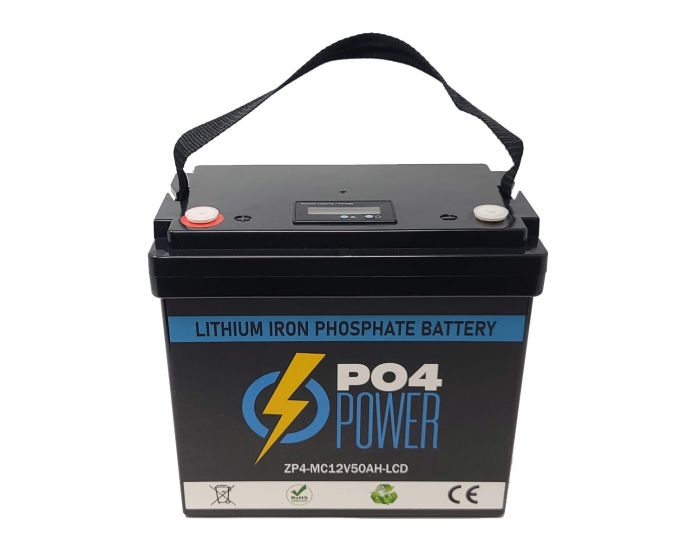

P04Power 12V 50Ah LifeP04 Battery
- Integrated battery management System (BMS)
- Ultra-long cycle life
- Light weight & compact
- Water & dust resistant (IP56)
- Highly durable ABS enclosure
- Drop-in lead acid replacement
- Environment friendly
- LCD display
- Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
- 5 year warranty!
|
General Information |
|
|
Battery Type |
LiFePO4(Lithium Iron Phosphate) |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
50Ah@25℃,C10 |
|
Nominal Energy |
640Wh@25℃,C10 |
|
Operation Voltage |
10~14.6V |
|
Operation Temperature |
Charge: 0°C – 45°C | Discharge: -20°C – 60°C |
|
Cycle Life @ 100%DOD |
>2000 cycles (640Wh@25℃,C10) |
|
Cycle Life @ 80%DOD |
>3000 cycles (512Wh@25℃,C10) |
|
Cycle Life @ 50%DOD |
>4000 cycles (320Wh@25℃,C10) |
|
Dimension |
229 x 138 x 212mm (L x W x H) |
|
Terminal Type |
M6 |
|
Weight |
~5.5 kg |
|
Warranty Period |
5 years |
|
Environment Protection |
IP56 |
|
|
|
|
BMS/Charge/Discharge |
|
|
Charge Voltage Max |
14.4V±0.2V |
|
Discharge Cut-off Voltage |
10V |
|
Charge Current Max |
50A |
|
Discharge Current Max |
50A continues 100A burst (10 seconds) |
|
Self-discharge Rate |
<2% per month |
|
Protection |
Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
