TYT MD-390 Waterproof 400-480MHz UHF DMR 5W Digital Radio Handheld Transceiver (w/out GPS)

This version of the MD-390 does NOT include GPS. If you would like the version of the MD-390 that has GPS, click HERE.

The TYT MD-390 is a IP67 waterproof rated UHF DMR Handheld transceiver. It is compatible with Mototrbo Tier 1 and 2. This UHF DMR radio has a frequency range of 400-480MHz and a power output of 5W. It features 1000 channels, remote kill/stun/activate, voice prompt, a color LCD, built-in CTCSS/DCS, priority scan, DTMF decoding and encoding, private call, group call and all call in digital mode. In the box with the TYT MD-390 you will find a standard stubby antenna, a high gain antenna, ear-piece, a 2200mAh Li-ion battery, belt clip, charging cradle, wall adapter, user manual, programming cable and software. Be sure to purchase your TYT MD-390 from GigaParts today!

  • Emergency Call
  • Short Text Message via Keypad
  • Quick Text Messages
  • Manual Dial
  • Remote Monitor
  • Remote Check
  • Remote Disable/Enable
  • Enhanced Encryption
  • Private/Group/All Call
  • Lone Worker
  • Power on Password
  • Programming Password
  • Zone Selection
  • Date/Time Programmable
  • Remote Kill/Stun/Activate
  • Voice Prompt
  • Power-on Protection
  • Color LCD Display
  • Text Messages in Digital Mode
  • Encryption Function
  • Built-in CTCSS/DCS
  • Up to 1000 Channels
  • Priority Scan
  • Complying with digital protocol ETSI TS 102 361-1, -2, -3
  • Compatible with MotoBRBO Tier I & II
  • DTMF Decoding and Encoding
  • Updated software available for new features
  • Private call, group call, all call in digital mode
  • Operate in both Digital and Analogue mode, allows easy migration from analog to digital
  • Provide clearer voice communications in digital mode, throughout the coverage area
Frequency Range UHF:400-480MHz
Channel 1000 Channels
Channel spacing 12.5KHZ
Operating voltage 7.4v
Battery type Li-ion
Operating temperature -30℃+60℃
Store temperature -40℃+85℃
Antenna Impedence 50Ω
Audio output power ≤1000mW@16Ω
Battery capacity 2200Mah standard Li-ion battery
Dimension(H*W*D) 131*61*36mm
Weight 258g
Output power High: ≤5W(HI)   Low: ≤1W(Low)
Frequency stability +/-1.0ppm
Adjacent channel Power ≤-60dB
Free time slot power TDMA: ≤-57dBm
Hum and Noise -40dB @ 12.5KHZ
Spurious Radiation Antenna:9KHz-1GHz ≤-36dBm  /  1GHz-12.75GHz ≤-30dBm
FM modulation mode 12.5KHZ:11K 0 F 3 E
4FSK digital mode 12.5KHZ(data only):7K60FXD
Modulation Maximum Deviation 2.5KHZ@12.5KHZ
Nonactive slot power -57dBm
Digital protocol ETSITS102 361-1,-2,-3
Vocoder type AMBE+2TM
Audio response +1dB~-3dB
Modulation BER(Bit error rate) ≤5%
Analog sensibility 0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dB m(Type)
Digital sensibility 0.3 uV/-117.4dBm(BER 5%) / 0.7 uV/-110dBm(BER 1%)
Co-channel Rejection ≥-12dB
Spurious response TIA603C: 75dB  ETSI:  70dB
Adjacent channel selectivity TIA603C: 65dB  ETSI:  60dB
Rated audio power 1W
Audio response =1dB~-3dB
Rated audio distortion 3%(Type)
Spurious radiation Antenna:9KHz-1GHz  ≤-57dBm / 1GHz-12.75GHz ≤-47dBm

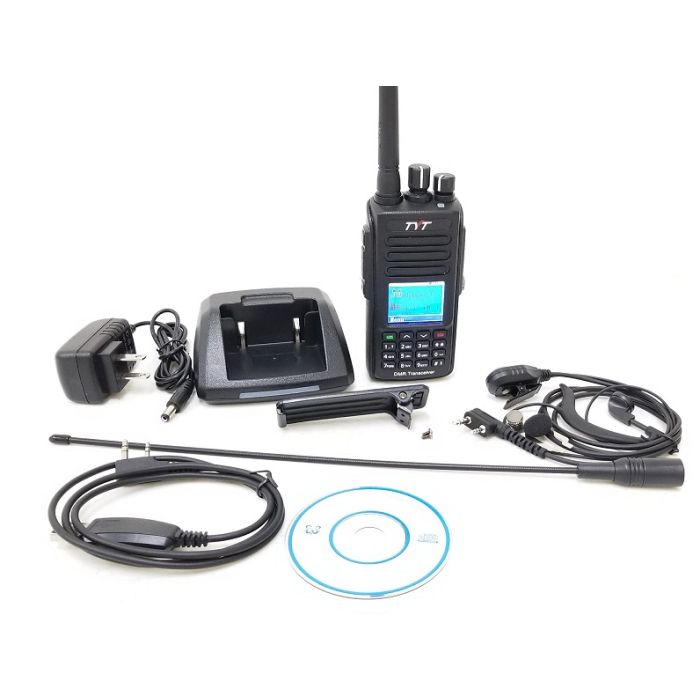

  • TYT MD-390 Transceiver (no GPS)
  • Standard Antenna
  • High Gain Antenna
  • Ear-piece
  • Li-ion Battery
  • Belt Clip
  • Charger
  • Wall Adapter
  • User Manual
  • Programming Software
  • Programming Cable
