Used Kenwood TS-590S HF/6M, 100W

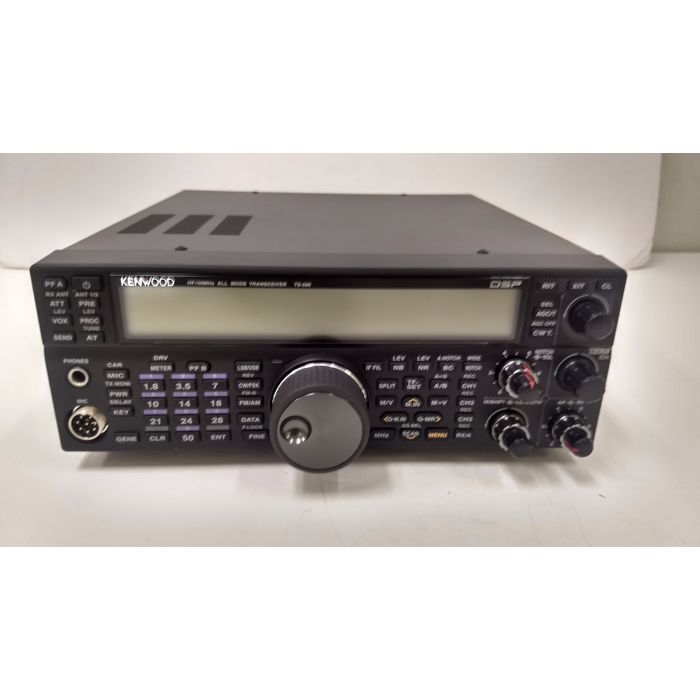

This item is used, please note the pictures provided to see minor dents, scratches and other superflous imperfections. Also, please note that the pictures show all items that are included. IF YOU DO NOT SEE THE ITEM PICTURED, IT IS NOT INCLUDED. This radio has been tested by our technicians will perform as expected.
The Kenwood TS-590SG is the successor to the popular TS-590S. The TS590SG HF/50MHz transceiver offers 100W of output power while drawing only 21A. The TS-590SG transmits on 160M, 80M, 60M, 40M, 30M, 20M, 17M, 15M, 12M, 10M, 6M and receives 0.13 ~ 30MHz and 50 ~ 54MHz. Building on the success of the TS-590S and improving, the Kenwood TS-590SG features an even higher performance receiver with superior adjacent dynamic range. Other improvements include advanced AGC control through digital signal processing from the IF stage, a highly reliable transmitter outputs high-quality TX signal, a new Morse code decoder, a configurable MULTI/CH knob and RIT/XIT/CL key, new Split function (TS-990S style), Transceiver equalizer configurable by mode, FIL A/B configurable independently with VFO A/B, Front or rear PTT selectable for data PTT and switching from HI CUT/ LO CUT to WIDTH/SHIFT possible for reception bandwidth changing in SSB mode. The TS-590SG uses a pair of 60 x60 mm fans for cooling which provides more airflow at a lower RPM, meaning less noise. A built-in automatic antenna tuner covers amateur bands from 160M-6M and can operate when the transceiver is receiving. Other features such as Digital/Analog noise blanking (NB1/NB2), DSP Noise Reduction (NR1/NR2), IF Notch and Beat cancel (BC1/BC2) make the Kenwood TS-590SG a joy to operate.
Frequency Range (Transmitter)
- 160M Band: 1.8 ~ 2.0 MHz
- 80M Band: 3.5 ~ 4.0 MHz
- 60M Band: 5.1675 MHz, 5.25 ~ 5.45 MHz
- 40M Band: 7.0 ~ 7.3 MHz
- 30M Band: 10.1 ~ 10.15 MHz
- 20M Band: 14.0 ~ 14.35 MHz
- 17M Band: 18.068 ~ 18.168 MHz
- 15M Band: 21.0 ~ 21.45 MHz
- 12M Band: 24.89 ~ 24.99 MHz
- 10M Band: 28.0 ~ 29.7 MHz
- 6M Band: 50.0 ~ 54.0 MHz
Modes: CW, AM, SSB, FM, FSK
Frequency Range (Receiver)
- 0.13 ~ 30 MHz, 50 ~ 54 MHz
- VFO: Continuous 30 kHz ~ 60 MHz
Supply Voltage: DC 13.8V
Current Drain
- TX: 20.5A or less
- RX (no signal): 1.5A or less
Dimensions
- Without Projections: 10.63W x 3.78H x 11.46D (inches)
- With Projections: 11.02W x 4.21H x 13.19D (inches)
- Weight: 16.31 lbs
Transmitter
- Output Power: Max 100W / Min 5W
- Output Power (AM): Max 25W / Min 5W
- Modulation: SSB - Balanced, AM - Low Power, FM - Reactance
Audio Output: 1.5W
