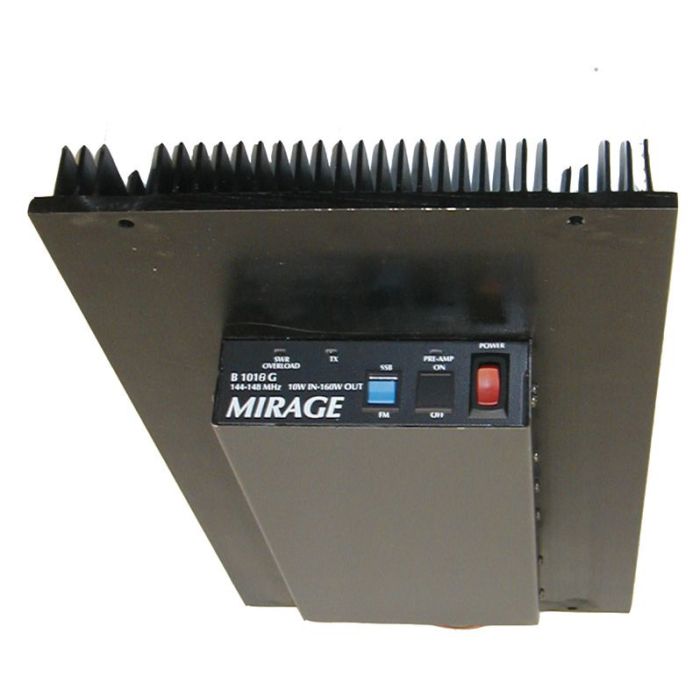

Mirage B-1018-R
SKU
ZMR-B-1018-R
$849.49
Out of Stock
FEATURES:
Cool Running - A10” high by 19” wide full finned rack-mounted heatsink keeps the transistor temperatures low for long life. Chassis cover is perforated so air convection will keep the circuit board area cool.
Dual Protection - The amplifiers have two temperature sensors; one on the heatsink and one on the circuit board. If conditions cause either to overheat, the amplifier will shut off until it cools down to a safe temperature.
Bypass Mode - These models will feed the exciter output straight through to the antenna in an over-temperature condition.
The bypass mode can also be remotely selected by proper interfacing to the repeater controller. Either a relay contact or a TTLlogic can be used to select the bypass mode or amplified mode of operation.
Reduced Relay Wear - The amps have a selectable long release time (adjustable up to 5 seconds) for the RF change-over relay. This prevents unnecessary action during repeater operation.
On-site Control - The bypass mode and relay release time can be selected with built-in switches. The operational MIRAGE RC-1 remote control box can be used to switch these functions up to 18 feet away from the amplifier.
Warranty - Mirage repeater amplifiers are guaranteed for one year against failure due to defective workmanship or materials.
Specifications:
Input Power Range: .25-3.
I (MAX) at 13.8 Volts: 20.
Weight in Pounds: 12.
Size WxHxD inches: 10x19 Heatsync.
PreAmp Gain: No.
Typical Power Out for Watts In:
.25: 15.
0.5: 30.
1: 60.
2: 100.
3: 130.
Cool Running - A10” high by 19” wide full finned rack-mounted heatsink keeps the transistor temperatures low for long life. Chassis cover is perforated so air convection will keep the circuit board area cool.
Dual Protection - The amplifiers have two temperature sensors; one on the heatsink and one on the circuit board. If conditions cause either to overheat, the amplifier will shut off until it cools down to a safe temperature.
Bypass Mode - These models will feed the exciter output straight through to the antenna in an over-temperature condition.
The bypass mode can also be remotely selected by proper interfacing to the repeater controller. Either a relay contact or a TTLlogic can be used to select the bypass mode or amplified mode of operation.
Reduced Relay Wear - The amps have a selectable long release time (adjustable up to 5 seconds) for the RF change-over relay. This prevents unnecessary action during repeater operation.
On-site Control - The bypass mode and relay release time can be selected with built-in switches. The operational MIRAGE RC-1 remote control box can be used to switch these functions up to 18 feet away from the amplifier.
Warranty - Mirage repeater amplifiers are guaranteed for one year against failure due to defective workmanship or materials.
Specifications:
Input Power Range: .25-3.
I (MAX) at 13.8 Volts: 20.
Weight in Pounds: 12.
Size WxHxD inches: 10x19 Heatsync.
PreAmp Gain: No.
Typical Power Out for Watts In:
.25: 15.
0.5: 30.
1: 60.
2: 100.
3: 130.
