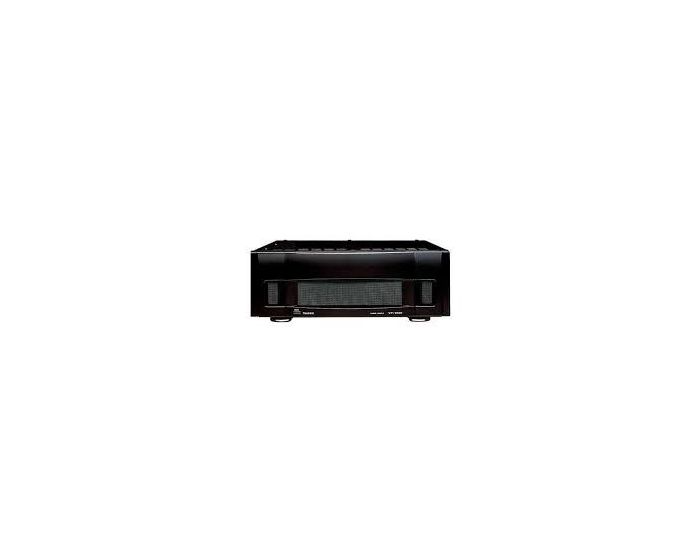

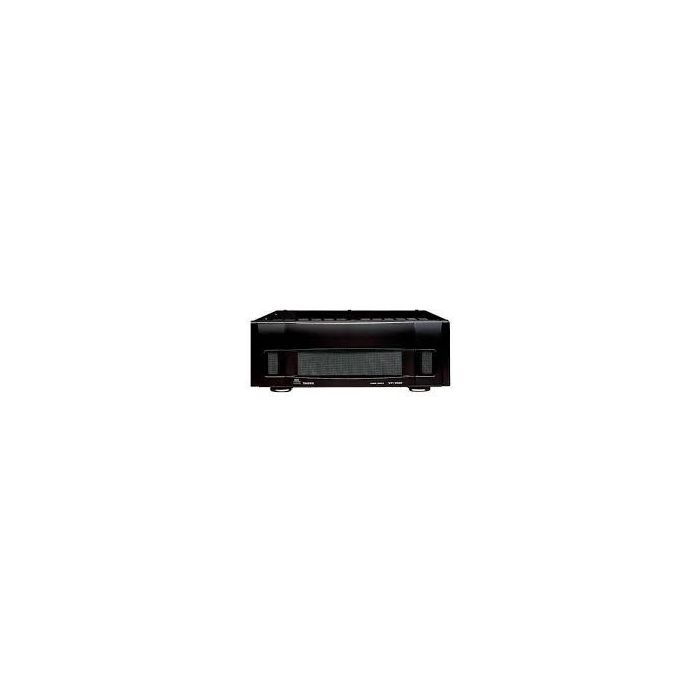

Yaesu VP-1000 AC Power Supply for the VL-1000 Linear Amplifier
The VP-1000 is an external AC power supply for use with the VL-1000 Linear Amplifier, providing 48 Volts DC at up to 48 Amperes for extended periods.
Excellent regulation and conservative design assure the owner of many years of trouble-free operation, even in heavy duty applications, such as full power AM, FM, or RTTY transmission. A thermally switched cooling fan automatically activates during long periods of high current demand, to maintain a safe operating temperature in the power supply. An alarm signal output is provided to the VL-1000 to avoid damage in the event that excessive current, excessive voltage or over-heating of the heatsink should occur.
Output Voltage: DC +48V, DC +12V, DC -12V
Output Current:
- DC +48V: 22A (AC 100-200V~)
- DC +48V: 48A (AC 200-240V~)
- DC +12V: 2.8A
- DC +12V: 0.1A
Input Voltage: AC 100-240V~, 50-60Hz
Current Consumption: 15A (AC 100-200V~) or 13A (AC 200-240V~)
Operating Temperature Range: -10C to +50C
Case Size: 410 x 135 x 369 mm (WxHxD)
Weight: 14.6kg
Yaesu VP-1000 AC Power Supply
DC Power Cable (2 meters)
Control Cable (2 meters)
