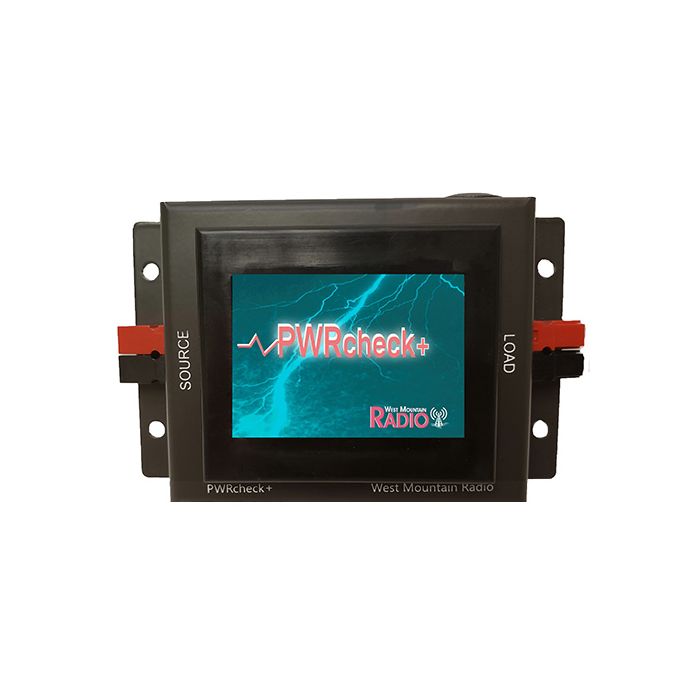

West Mountain PWRcheck Plus
SKU
ZWM-PWRCHECK-PLUS
$184.95
Ready to Ship!
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:
Hardware
- Handles 8 display modes including voltage, current flow in either direction, wattage and amp-hours
- Measures 0V* to 60V (Less than 8V requires USB power to PWRcheck+), 40A continuous load
- Accurate to within +/- 10mV, +/- 10mA
- Resolution - 10mV, 10mA
- High side monitoring does not require breaking power supply ground or return path, ideal for vehicle use
- Vibrant LCD color touchscreen displays data in digital, analog and bar graph formats
- Monitor back up battery with programmable gas gauge
- Non-volatile memory stores more than 100,000 data points (nearly 2 1/2 months worth of data @ 1 point per minute) without power
- USB computer interface for configuration and data download
- Programmable alarm conditions for overcurrent, over/under voltage, amp-hours
- Uses Powerpole® connectors (see Accessories)
- Dimensions: 0.875" H x 4.5" W x 3" D
* PWRcheck+ requires a minimum 50mA load to measure voltages below 4.5V.
Software
- Easily program every aspect of PWRcheck+ operation such as data logging rate, display formats, alarm conditions
- Displays current, voltage, wattage and amp-hours in real time
- Integrated charting software automatically collects and displays data
- Downloads stored data for later analysis
- Exports to Excel
Electrical Specifications
| Minimum | Typical | Maximum | Unit | |
| Input Voltage | ||||
| Without USB | 7 | - | 60 | V |
| With USB | 0 | - | 60 | V |
| Input Current | ||||
| Without USB | 0 | - | 40 | A |
| With USB | 0 | - | 40 | A |
| Input Current Used by PWRcheck+ | ||||
| Without USB | 0 | - | 0.120 | A |
| With USB | 0 | - | 0 | A |
