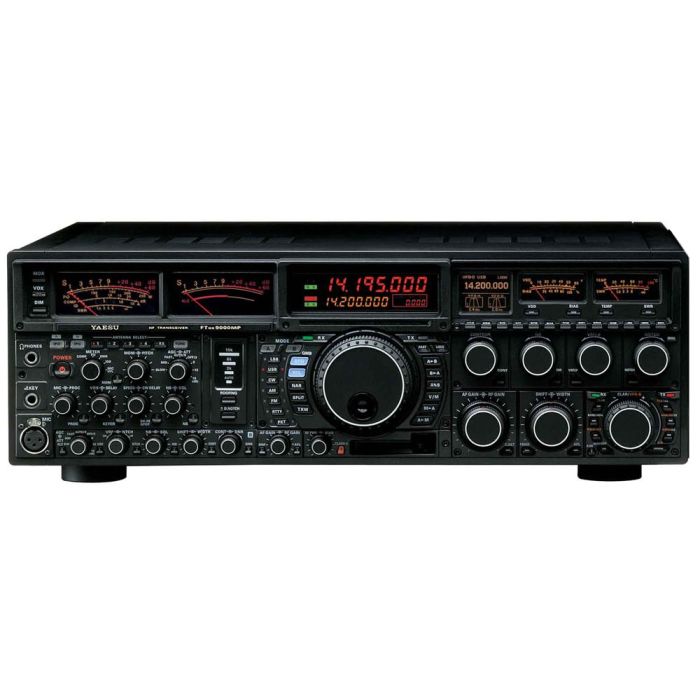

Yaesu FT-DX9000MP HF/50MHz 400W Transceiver

The ultimate machine in the FT-DX9000 range, the MP offers an incredible 400W transmission power and is supplied with the FPS-9000H external power supply with dual speakers and audio filters.  Like the Contest, the MP is fully customizable to suit your own particular needs.

Advanced 32-Bit IF DSP

The FT DX 9000 utilizes a 32-bit floating-point IF Digital Signal Processing system to provide a wide range of interference-suppression and intelligence-recovery features. Included are Variable IF Bandwidth with preset "Narrow" settings, IF Shift, Digital Noise Reduction, and a Parametric Equalizer "Contour" system for enhancing or suppressing sections of the IF passband. On transmit, the bandwidth is adjustable, and the SSB voice parameters may be precisely adjusted using the Three-Band Parametric Equalizer system.

400 Watt Power Output

The FT DX 9000MP provides 400 Watts of power output with real-time metering of the bias level and heat sink temperature, for adjustment of the operating conditions between Class AB and Class A. Class A output is 100 Watts.

Yaesu Exclusive: Full Duplex (for One-Radio SO2R Operation!)

The FT DX 9000MP is the only Amateur HF Transceiver to provide Full Duplex capability when operating on two different bands. So, in a contest, you can be calling CQ on 10 metres while simultaneously receiving on 20 metres, looking for new multipliers! This unique capability is found only on the FT DX 9000 series

Three Roofing Filters for Outstanding Close-In Dynamic Range

The FT DX 9000MP provides three "Roofing" filters in the first IF, allowing you to select (on the fly, or automatically by mode) front-end bandwidths of 15 kHz, 6 kHz, or 3 kHz. Choose the bandwidth that best matches the band occupancy and your operating mode at the time!

Leading-Edge Receiver Performance

The receivers in the FT DX 9000MP are crafted using an ultra-quiet 400 Mhz High-Resolution DDS local oscillator, for extraordinarily low noise close to the carrier. The high-level mixers and robust IF amplifier stages are designed to yield a 3rd-order Intercept Point in excess of +40 dBm, your assurance of high performance on today's crowded bands.

Parametric Microphone Audio Equalizer

Another unique FT DX 9000MP feature is the 3-band Parametric Microphone Equalizer, independently adjustable for the front panel (XLR) and rear panel (8-pin round) microphone connectors! The Parametric Equalizer system allows the operator to tailor the transmit passband more precisely than with other equalizer systems. You can adjust the center frequency of each of the three audio passbands, the width of each of these bands, and the amount of boost or suppression you wish to engage within each of these frequency ranges. This allows you to focus available power where you want it, and maximize fidelity according to your voice pattern and the response of your microphone. And because you can adjust the front and rear microphone jacks independently, you can equalize one way for a "DX" mic element on the rear panel, and equalize differently for a "studio" microphone on the front panel mic jack.

Frequency Range Transmit: 160-6m (Amateur Bands Only)
Receive: 30kHz-60MHz (operating) 160-6m (Amateur Bands Only)
Emission Modes A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM), F1B(RTTY), F1D(PACKET), F2D(PACKET)
Synthesiser Steps (Min) 1Hz/10Hz (CW,SSB,AM), 100Hz (FM)
Antenna Impedance 50 Ohms, unbalanced (Tuner OFF)
16.7-150 Ohms, unbalanced (Tuner ON, 160-10m, Tx Only)
25-100 Ohms, unbalanced (Tuner ON, 6m, Tx only)
Operating Temperature Range -10~+60ºC
Frequency Stability ±0.03ppm (-10~+60ºC, after 5 min)
Supply Voltage 100 VAC/200 VAC (Universal Input) 90 VAC~264 VAC
Current Consumption Rx (no signal) : 100 VA (appx)
Rx (signal present) : 120 VA
Tx 400W : 720 VA (appx)
Dimensions (WxHxD) 518 x 165 x 438.5mm
Weight (appx) 30kg
RF Power Output CW/SSB/FM/RTTY/PKT: 5-400W
AM: 10-100W
Class A (SSB): 10-100W
Modulation Types J3E (SSB): Balanced
A3E (AM): Low-Level (Early Stage)
F3E (FM): Variable Reactance
FM Maximum Deviation ±5.0kHz / ±2.5kHz
Spurious Radiation Better than -60dB (160-10, Amateur Bands)
Better than -70dB (Meter Band)
SSB Carrier Suppression At least 70dB below peak output
Undesired Sideband Suppression At least 80dB below peak output
Audio Response (SSB) Not more than -6dB from 400 to 2600Hz
3rd-order IMD -35dB @ 200W PEP
-50dB @ 75W PEP (Class A mode)
Microphone Impedance 600 Ohms (200 to 10k-Ohms)
Circuit Type Triple-conversion superheterodyne
Intermediate Frequencies VFO-A: 40.455Mhz, 455kHz, 30kHz (24kHz FM)
VFO-B : 40.455Mhz, 450kHz, 30kHz (24kHz FM)
Sensitivity (IPO "off") SSB (2.4kHz, 10dB S+N/N):
0.2µV (160-10m Amateur Bands), 0.125µV (6m Amateur Band), 2µV (0.1 - 50MHz)

AM (6kHz, 10dB S+N/N, 30% MOD @ 400Hz):
32µV (0.1 - 1.8 MHz), 2µV (1.8 - 30MHz), 1µV (6m Amateur Band)

FM (12dB SINAD):
0.5µV (10m Amateur Band), 0.35µV (6m Amateur Band)


0.5kHz or better
2.4kHz or better
9kHz or better
15kHz or better
750Hz or less
3.6kHz or less
18kHz or less
25kHz or less
Image Rejection 70dB or better (160-10m Amateur Bands)
Maximum Audio Output 2.5W into 4 Ohms with 10% THD
Audio Output Impedance 4 to 8 Ohms (4 Ohms : nominal)
  • 400W Yaesu FT-DX9000MP Transceiver
  • FPS-9000H External Power Supply with Dual Speakers and Audio Filters
  • FH-2 Remote Control Keypad
  • 128MB CF Card
  • AC Power Cord
  • Microphone Extension Cable (8 Pin to Modular)
  • RCA Plug (6 pcs)
  • 3.5mm 2-contact plug (2 pcs)
  • 3.5mm 3-contact plug (1 pc)
  • 1/4-inch 3-contact plug (2 pcs)
  • 4-pin DIN plug (1 pc)
  • 5-pin DIN plug (1 pc)
  • 7-pin DIN plug (1 pc)
  • 8-pin DIN plug (1 pc)
  • Operating Manual
  • Warranty Card
