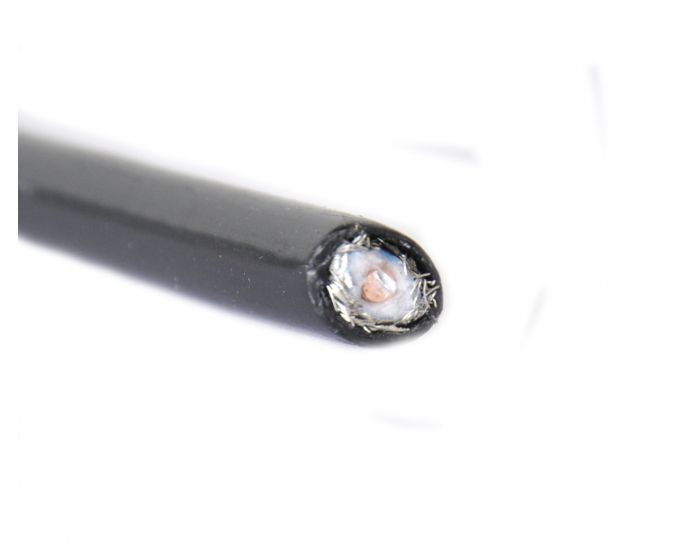

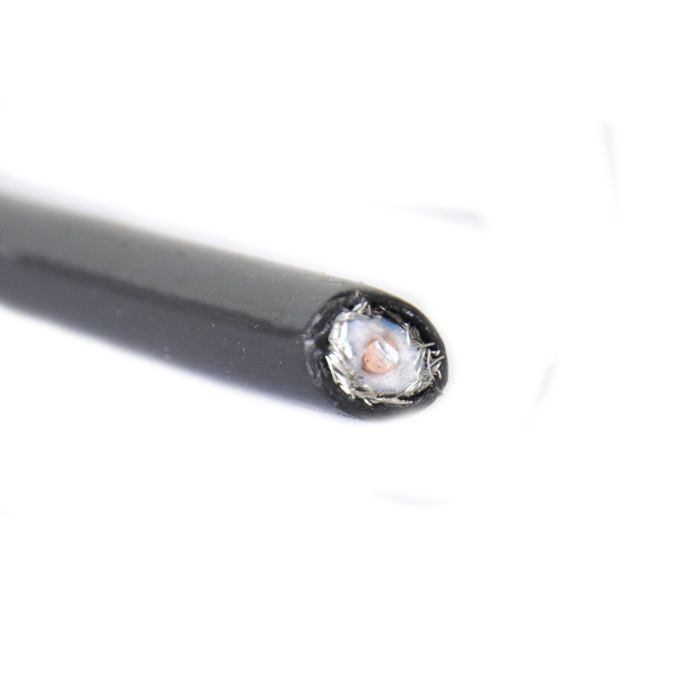

1FT 400-Series Rated Coax

1' 400-Series Plenum Rated Coax

1.1              Capacitance:  23.5 pF/FT nominal

1.2              Velocity of Propagation:  85% nominal

1.3              Characteristic Impedance:  50 Ohms nominal

1.4              Conductor DCR:  1.39 ohms/Mft nom.

1.5              3.5  Shield DCR:  1.65 ohms/Mft

1.6              Inductance:  0.059pf/ft

1.7              Peak Power:  16kW

1.8
