ALPHA DELTA DELTA-4B-N

SKU
ZAD-DELTA-4B-N
$104.95
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

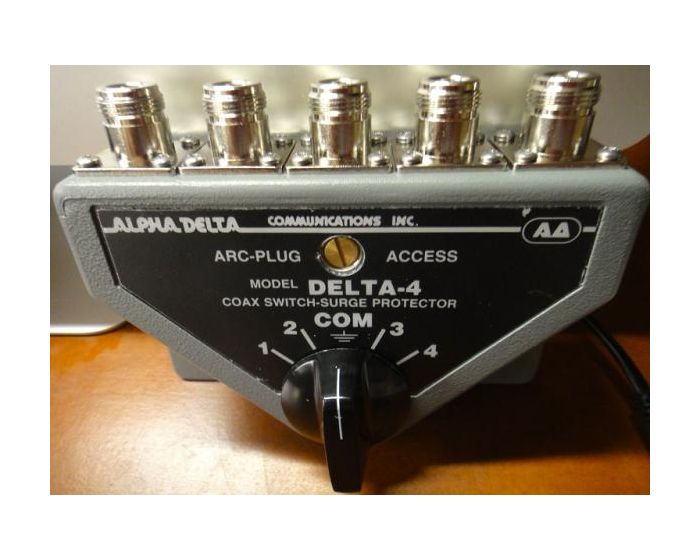

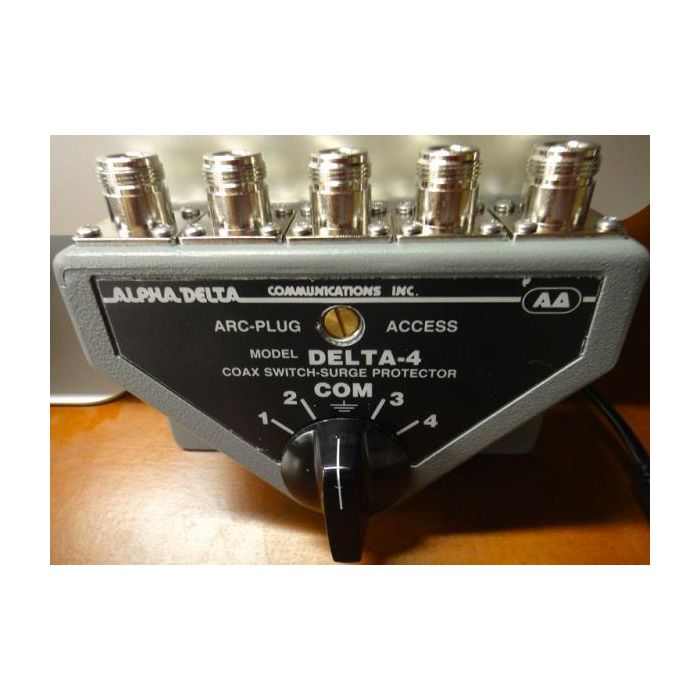

Alpha Delta DELTA Series Surge Protected 50Ohm Coax Switch (all models include replaceable Model D-4 gas tube ARC-PLUG (tm) surge protector, built-in - 4-Position, Type-N, 1.3Ghz

Model DELTA-4/N is rated through 1.3 GHz

SWITCH POSITIONS     Four, two either side of the “common” center, connector.

LIGHTING SURGE PROTECTION     Alpha Delta Model D-4 internally mounted, field-replaceable ceramic

gas tube Arc-Plug Cartridge Pill.

SPECIAL SWITCHING FUNCTIONS     When the knob points to the center (ground) switch position, all

antenna circuits are internally disconnected and grounded. When the knob is in an active position, the unused antenna ports are grounded.

The active position circuit is continuously protected by the Model D-4 Arc-Plug Cartridge Pill.

GROUNDING REQUIREMENTS    A separate, external ground wire must be used from one set of user-supplied mounting hardware (through either thru-hole on the base plate) to the station ground system. (Not the equipment chassis.) The Arc-Plug Cartridge Pill will not operate without a good ground. Note:

Paint should be removed at point of ground hardware connection to base plate. It is also good practice to ground the coax shield at point of entry to the building.

ELECTRICAL SPECIFICATIONS

Nominal (S0-239 CONNECTORS)



                                VSWR    dB Loss dB Isolation

30 MHz                 <1.1:1    .1dB       >60dB

150 MHz              <1.3:1    .15dB     >50dB

450 MHz              <1.4:1    .5dB       50dB



NOTE: Model DELTA-2B/N has NSN 5985-01-551-0890 and numbers AN/URN-31(V), auto ID system, for MIL users as assigned by the Defense Logistics Agency (DLA). Cage Code 389A5
