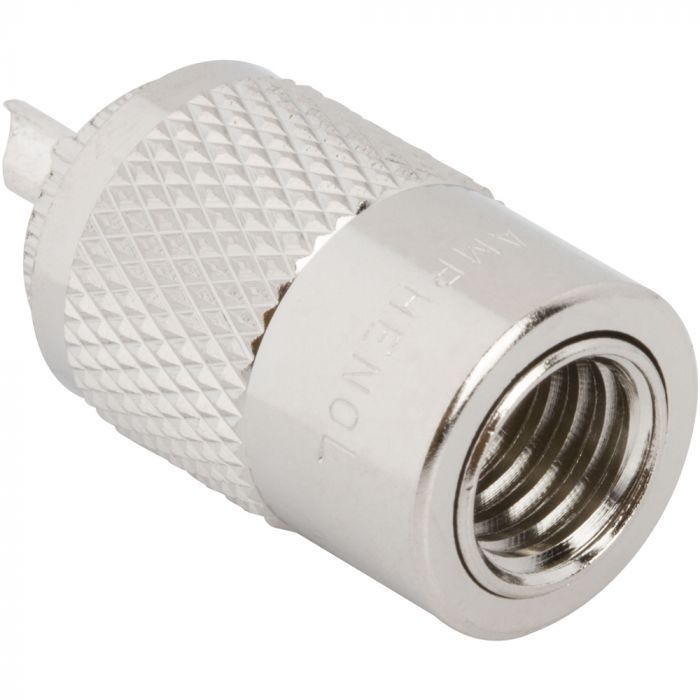

Amphenol RF UHF Male (PL-259) Connector for RG8/213/225

Name: Amphenol RF UHF Male (PL-259) Connector for RG8/213/225
Brand: Amphenol
SKU: ZCB21020
Price: 8.99 USD
Availability: InStock

SKU: ZCB21020

Availability:

In stock

$8.99

Must Have Accessories

$1.15

$1.19

Body Finish	Nickel
Body Material	Brass
Cable Type (Terminates to)	RG-8, RG-213, RG-225, Times AA-4478, Belden 8267, Belden 9251, Belden 9880, Belden 89880, Belden 8242, Belden 8268
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Export Control Classification Number	EAR99
Frequency (Max GHz)	0.3
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	Non-Constant
Insulator Material	Phenolic
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Standard
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Termination Style	Cable - Solder
Thread Direction	Standard
