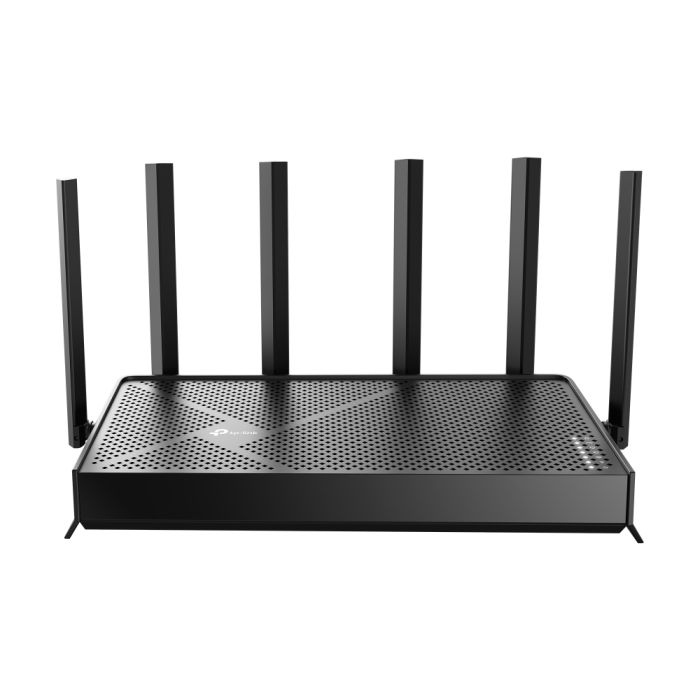

Archer BE6500 Dual-Band Wi-Fi 7 Router

Archer BE6500 Dual-Band Wi-Fi 7 Router

• 6.5 Gbps Dual-Band WiFi 7: 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).¹
• Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.⁶
• 2.5G Wired Connection: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.⁴
• Maximized Coverage: 6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.¹
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.⁸
• Easy Setup and Use: Network management has never been easier with the Tether app.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.⁷
• Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.⁹

6.5 Gbps Dual Band Wi-Fi 7 Speed

Powered by Wi-Fi 7 technology, Archer BE6500 delivers incredible Wi-Fi speeds of up to 6.5 Gbps, enabling your devices to run at full speed.¹

WiFi 7, WiFi Like Never Before

WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

Boosted Throughput, Unmatched Reliability

Multi-Link Operation (MLO) enables Archer BE6500 to transmit data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.⁶

2.5 Gigabit Wired Connections Devices

Experience lightning-speed connectivity with dual 2.5 Gbps ports! Archer BE6500 features 1× 2.5 Gbps Internet (WAN) port and 1× 2.5 Gbps LAN port, maximizing Gigabit+ speeds delivered by your internet service provider. Break through the 1G bottleneck and unleash peak performance.⁴

6× High Performance Antennas with Beamforming for a Broader Coverage

Equipped with 6× high performance antennas, Archer BE6500 boosts the WiFi signals throughout your home. The Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.¹

Create Whole Home Mesh WiFi

Archer BE6500 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.⁸

WiFi Dead Zone Killer

Eliminate weak signal areas with WiFi coverage for the whole house

Smart Roaming

Uninterrupted streaming when moving around your home

One WiFi Name

No more switching WiFi network names

Unified Management^※

Manage your whole home WiFi from the central node via the Tether app/Web UI

Set Up in Minutes

Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Your Security is Our Priority

With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.*

Home Network Scanner

Real-time network scanner to detect potential threats and security issues.

Parental Controls

Manage time online and block inappropriate content to keep your family safe online.

Quality of Service

Assign your favorite devices to have the fastest connections for top performance.

Private IoT Network for More Security

Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.

VPN Clients and Server Supported

Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE6500 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

¹Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provide factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

²Lower Latency refers to the latency improvement of Wi-Fi7 routers compared to Wi-Fi6/6E routers, based on laboratory test data. The test conditions had the same 5 GHz or 2.4 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 2.4 GHz bands of Archer BE6500 (with MLO turned on) simultaneously and to the 5 GHz or 2.4 GHz bands of a Wi-Fi 6/6E router (without the MLO function)

³Higher capacity and lower latency refers to the capacity and latency improvement of Wi-Fi 7 routers compared to Wi-Fi 6/6E routers, based on laboratory test data.2.5 Gbps internet speeds require compatible service plans and equipment.

⁴2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

⁵Use of WPA3 requires clients to also support the corresponding feature.

⁶Use of Wi-Fi 7 (802.11be), Wi-Fi6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features,*Wi-Fi generations represent the wireless standard NEEE 802.11 a/be/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.

⁷HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield

⁸TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

⁹Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/be. All devices need to support 802.11 Wi-Fi protocols.

This router may not support all the mandatory features as ratified in the IEEE 802.11be specification.

Further software upgrades for feature availability may be required.

Pictures are for reference only. If there are any inconsistencies between the product image and the actual product, the actual product shall prevail.
