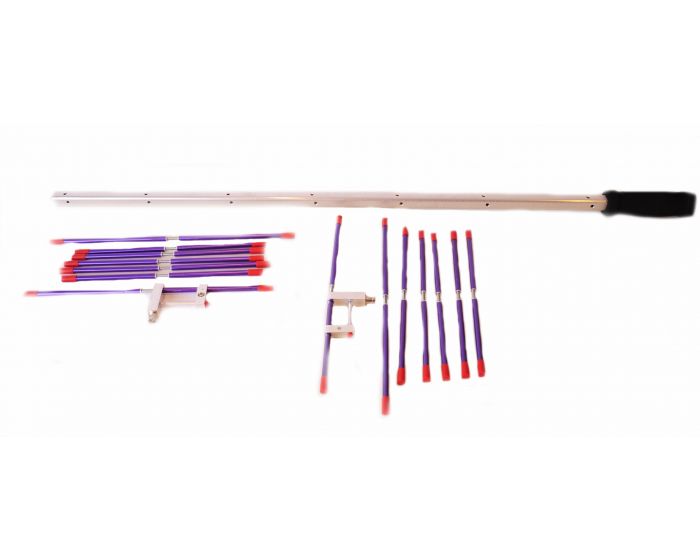

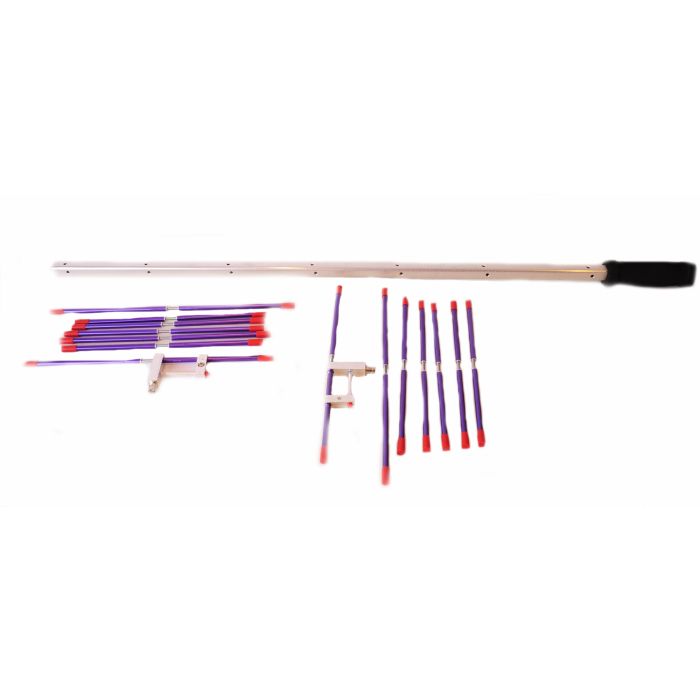

Arrow Antenna II Satellite 14 Element Portable Hand-Held Antenna 437X14

Arrow Antenna II Satellite 14 Element Portable Hand-Held Antenna 437X14

- 14 Elements in a 7x7 configuration

- SWR 1.2:1

- Maximum power 10w

                 Because the antenna is hand held, power should be kept to less than 10 watts maximum. If mounted, maximum power is 150 watts

- Boom is 3/4" T6061 Aluminum

- Elements: Easton Aluminum Arrow Shafts

- Gamma Match is attached to half of driven element

- Connector is BNC only

Arrow antennas are hand held directional Yagi antennas made in America and a great accessory for the ham that wants a very directional, focused propagation of his transceiver radio so he/she can work LEO (low earth orbit) satellites and distant repeaters.  The antenna’s direction is modified by a reflector (the largest element, located at the “back” of the antenna) and then several reflectors, or directors, set in parallel help to focus the propagation of the antenna.  The more reflectors the Yagi has, the greater the gain.
