Comet Antennas HD-5M Heavy-duty Lip Mount

SKU
ZCM-HD-5M
Rating:
20 % of 100
$77.95
Add to Wish List

This item is currently out of stock. We are not accepting backorders at this time.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Comet Antennas HD-5M Heavy-duty Lip Mount

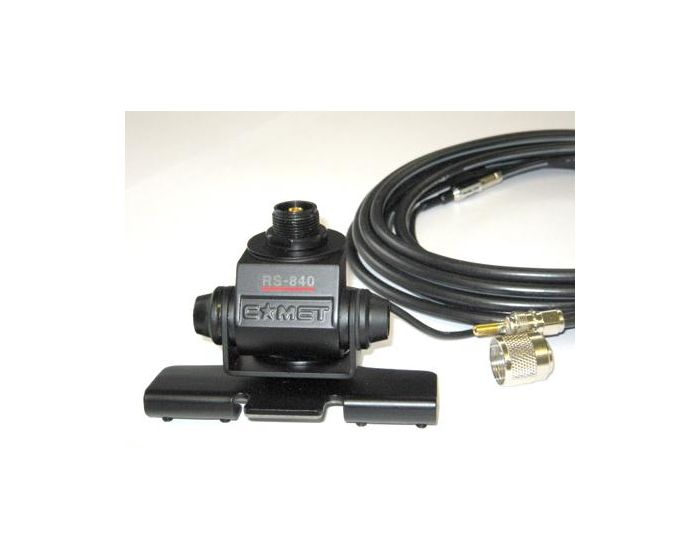

The HD-5M model is the combination of the RS-840 bracket and CK-3M5 deluxe coax cable assembly.

The Comet Antenna HD-5M is an excellent option for those looking for a heavy-duty lip mount for their mobile ham radio. With its universal adjustable lip mount, the HD-5M can be installed in only a matter of minutes on virtually any lip on your vehicle without causing damage to your expensive or leased vehicle.



The HD-5M comes with a 16' 6” deluxe cable assembly, complete with SO-239/PL-259 connectors, providing you with a high-quality appearance and low loss coax cable assembly. The coax balance is low loss with 24k gold plated SO-239 & PL-259 connectors. The PL-259 disassembles for easier routing or to shorten the coax length. The first 18 inches of the coax is mini RG-188A/U type, which allows easy entry through the weather seal into the vehicle without causing wind noise, water leaks or coax damage.



The HD-5M is a lateral support tab that is part of the lip mount to ensure that it will not interfere with the opening and closing of doors, trunks, or other areas where it is mounted. The mount can adjust in three different planes, allowing you to customize the position of your antenna for optimal signal reception.



Designed for larger Comet antennas such as the UHV-4 and UHV-6, as well as the Yaesu ATAS-120, the HD-5M is an ideal choice for those who are looking to get the most out of their mobile ham radio experience. The soft rubber pad protects your vehicle's paint, while four large set screws hold the mount firmly in place, providing you with a reliable and secure connection.



Overall, the Comet Antenna HD-5M is an excellent choice for those who are looking for a heavy-duty lip mount that provides high-quality signal transmission while also being easy to install and customize to fit their specific needs.

The HD-5M model is the combination of the RS-840 bracket and CK-3M5 deluxe coax cable assembly.

Heavy-duty lip mount, up to 80" antenna.

Universal adjustable lip mount, 16' 6” deluxe cable assembly with SO-239/PL-259 connectors. Quality appearance and low loss coax cable assembly. Installs easily in only minutes to virtually any lip on a vehicle. Trunk lid, truck rear doors, SUV and van rear doors, hood lip, etc… Does not damage expensive and/or leased vehicles.

A lateral support tab is part of the lip mount. Be sure this support tab will not interfere with the opening/closing of the door, trunk, etc...

Footprint: 3.75" x 1.1"

Max Power:
HF: 200W SSB
VHF: 75W FM
UHF: 50W FM

Mount adjusts in 3 planes. The first 18 inches of coax is mini RG-188A/U type allowing easy entry through the weather seal into the vehicle without causing wind noise, water leaks or coax damage. The coax balance is low loss with 24k gold plated SO-239 & PL-259 connectors. The PL-259 disassembles for easier routing or to shorten the coax length. Soft rubber pad protects the vehicle paint, 4 large set screws hold the mount firmly in place.

Great with larger Comet antennas, such as UHV-4 and UHV-6, as well as the Yaesu ATAS-120.

The HD-5M model is the combination of the RS-840 bracket and CK-3M5 deluxe coax cable assembly.

Heavy-duty lip mount, up to 80" antenna.

Universal adjustable lip mount, 16' 6” deluxe cable assembly with SO-239/PL-259 connectors. Quality appearance and low loss coax cable assembly. Installs easily in only minutes to virtually any lip on a vehicle. Trunk lid, truck rear doors, SUV and van rear doors, hood lip, etc… Does not damage expensive and/or leased vehicles.

A lateral support tab is part of the lip mount. Be sure this support tab will not interfere with the opening/closing of the door, trunk, etc...

Footprint: 3.75" x 1.1"

Max Power:
HF: 200W SSB
VHF: 75W FM
UHF: 50W FM

Mount adjusts in 3 planes. The first 18 inches of coax is mini RG-188A/U type allowing easy entry through the weather seal into the vehicle without causing wind noise, water leaks or coax damage. The coax balance is low loss with 24k gold plated SO-239 & PL-259 connectors. The PL-259 disassembles for easier routing or to shorten the coax length. Soft rubber pad protects the vehicle paint, 4 large set screws hold the mount firmly in place.

Great with larger Comet antennas, such as UHV-4 and UHV-6, as well as the Yaesu ATAS-120.
