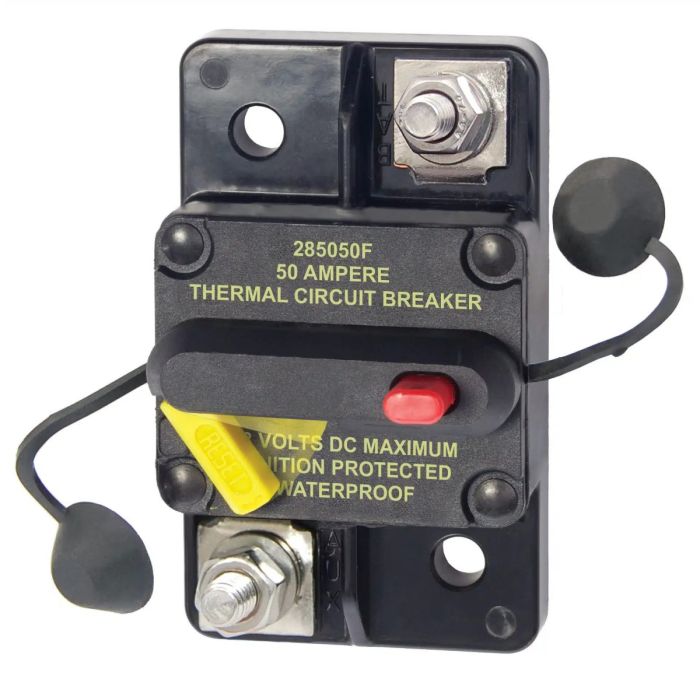

Eaton Bussmann 285 Series Hi-Amp Circuit Breaker, Type III Reset, 50A

Eaton 285 series 50A marine rated circuit breaker provides medium duty circuit protection for auxiliary and accessory circuits in trucks, buses, RVs, and marine systems. Ideal when switching and circuit protection are both required. Visible yellow reset lever shows open condition with trip-free design that cannot be held closed after trip. Direct drop in replacement for 185 series.

The Series 285 has a unique yellow reset mechanism which provides visual indication of tripped condition. Series 285 also features a red push-to-trip option.

Key Features

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected – Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant – IP67 Rated
• Combines switching and circuit breaker function into one unit
• ‘Trip Free’ – cannot be held closed after trip
