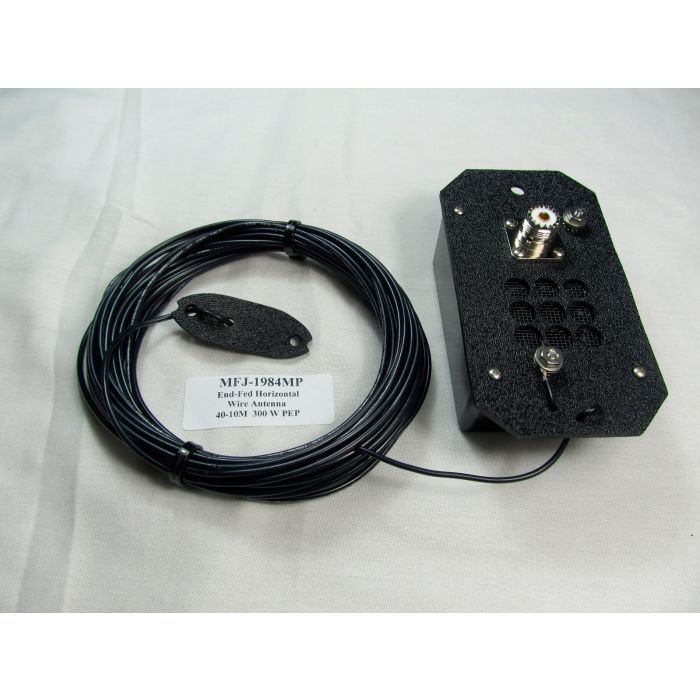

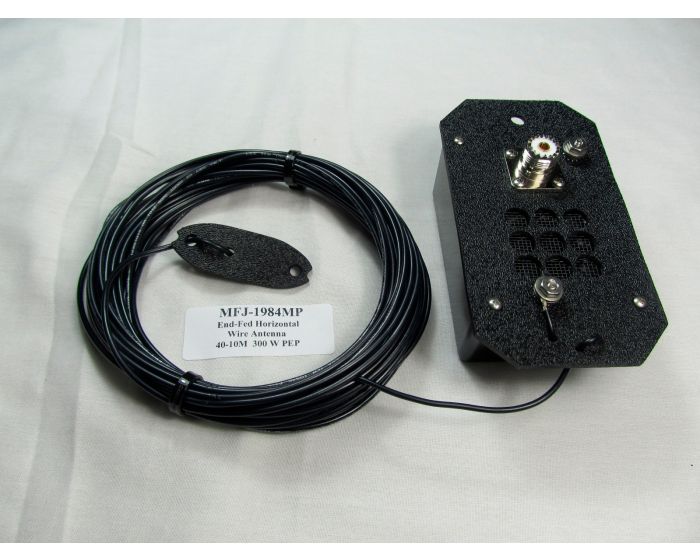

MFJ-1984MP End Fed 1/2 Wave 300W 40M-10M Wire Antenna
End-Fed Horizontal Wires (EFHW) cover multiple bands with-out traps, stubs, or resonators.
End-fed radiators have the unique quality of resonating on the 1/2-wave fundamental frequency plus odd/even harmonics above!
Broad-band matching transformer at feed point lets the entire HF spectrum be yours! SWR is so low you may never need a tuner.
Get on the air - Just one high center or end support -- installation is fast for home, road, emergencies.
EFHWs install virtually any-where in minutes! Comes with a rugged insulated-wire radiator that prevents detuning when contacting limbs/branches. "No-snag" end insulator slides over branches and through foliage without hang-ups.
Toss your EFHW over a high limb for an inverted-V, raise the far end high for a powerful sloper, or even go vertical with an inverted-L. Dark jacketed wire is virtually invisible -- Don`t let antenna restrictions keep you off the air
It`s no secret that weather events are getting stronger -- the EFHW makes a great emergency back-up for your regular antenna.
Power ratings are in Watts PEP for SSB/CW modes, with 50% or less transmit time (ICAS). Each network designed and tested to ensure great performance in a wide range of operating conditions.
End-fed horizontal wire, an EFHW, offers the perfect solution for a wide range of ham activities.
Purchase your MFJ End Fed 1/2 Wave 300W 40M-10M Wire Antenna from GigaParts today.
- FULL HF Coverage, no tuner needed on most frequencies.
- No long counterpoise, radials or feedline required.
- Rugged weather-resistant 50-Ohm matching network.
- Fast Setup and takedown.
- Easy Storage/transport.
- Stainless Hardware, UV resistant materials throughout.
Band |
Frequency/SWR |
2:1 SWR Span |
40M | 7.19/1.4 | Full Band |
30M | 10.8/1.3 | Tuner Required |
20M | 14.3/1.3 | Full Band |
17M | 18.1/1.8 | Full Band |
15M | 21.25/1.1 | Full Band |
12M | 24.9/1.5 | Full Band |
10M | 28.2/1.0 | 28.0-28.80 |
