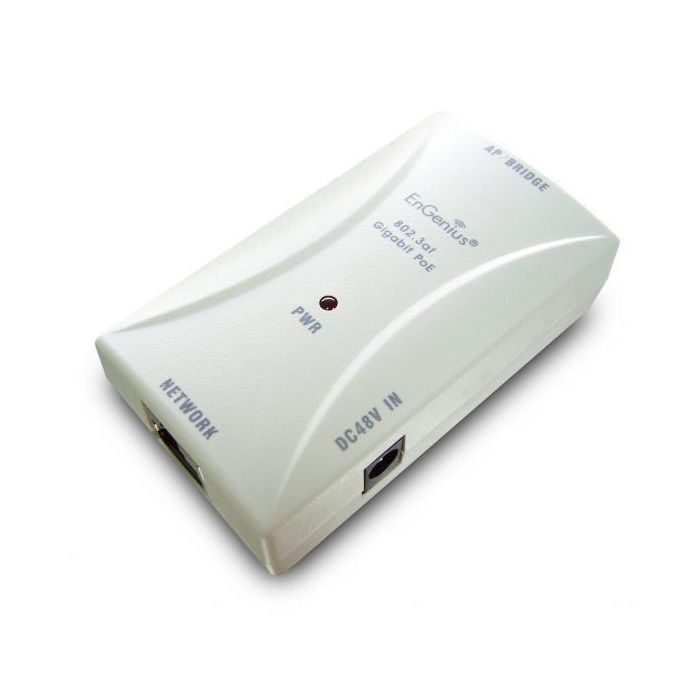

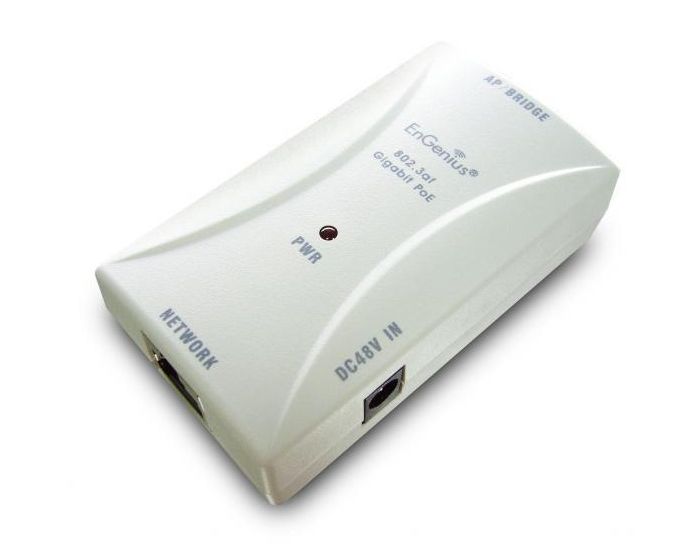

EnGenius EPE-5818AF 802.3af Power-over-Ethernet (PoE) Injector
Eliminate the limitation of placing an Ethernet-enabled device, such as a wireless access point near a power outlet. The EPE-5818af delivers both data and electrical power to Ethernet-enabled devices using a single Ethernet CAT5 cable. EPE-5818af Power-over-Ethernet (PoE) injector is 802.3af compliant. It uses standard IEEE pin definition to power the device, and comes with a 48V/0.375A power supply. Pin# 1, 2, 3 and 6 for data transmission; pin# 4, 5, 7 and 8 for power to the device. The EPE-5818af PoE generates power over CAT5 cable up to 300 feet (100 meter). By sending 48V, Ethernet terminals such as wireless LAN access point, IP phone and web camera can be powered remotely. It is especially ideal for outdoor networking facility and low port density installations.
