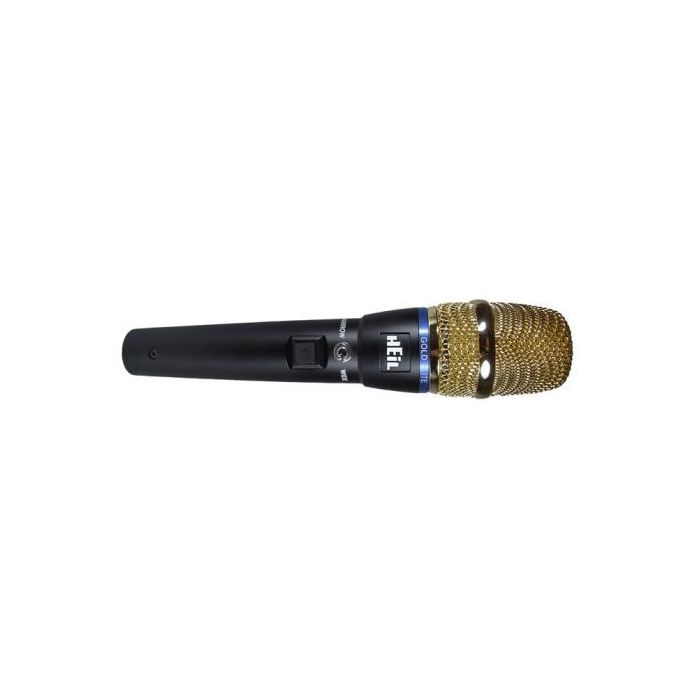

The new Gold Elite microphone is designed and crafted specifically for amateur radio communications. It contains two distinctly different high performance dynamic elements that are available at the flip of a switch to meet the different types of communications.The WIDE position has the HEIL Elite full range element producing smooth articulate 60Hz – 16 kHz audio with the traditional Heil +4 dB peak centered at 2 kHz. This gives the new Gold Elite excellent voice articulation along with its ‘big bottom’ low end that is so important for producing a well balanced, studio quality SSB signal.The NARROW position features the HC-5.1 dynamic element producing a smooth response of 200Hz - 8 kHz. The HC-5.1 element is designed to respond to those older rigs as well as today’s transceivers with onboard DSP EQ. The HC-5.1 produces full range broadcast audio as well as the tailored DX/Contest audio by simply adjusting your EQ. New mic technology to meet today’s new DSP technology.The ‘soft touch’ PTT switch is wired to pins 3 and 4 for transmit control. The microphone audio is fed to pins 1 (shield) and 2 of the four pin XLR. The Gold Elite uses the HEIL CC-1 Connecting Cables.The Gold Elite microphone comes to you with a foam windscreen and a 5/8”-27 microphone clip that is designed for our booms and desk stands.
