Hy-Gain HF Beam, TriBand, 10/15/20M, 3-Elements - TH-3JRS
Hy-Gain HF Beam Antennas

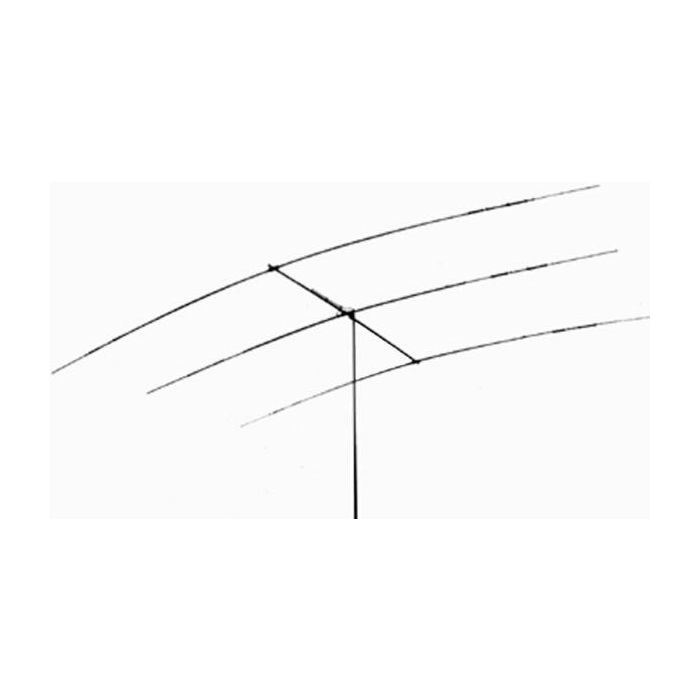

Hy-Gain TH-3JRS Tri-Band Beam Antennas were designed for the ham that has space limitations but still wants top performance on 20, 15, and 10 meters.
TH-3JRS Tri-Band Antennas are constructed from taper-swaged aluminum tubing for low wind resistance and low weight; ideal for rooftop or lightweight tower installations.
Hy-Gain TH-3JRS beams can be rotated with a heavy-duty TV rotator or a Hy-Gain CD-45II.
These antennas feature super-strength stainless steel hardware and a boom-to-mast bracket that will fit masts up to 2 in. Outside Diameter.
| Coverage: | 10, 15, 20m |
| Gain: | 5.8 dBd (avg.). |
| Front to Back: | 25 dB (avg.). |
| Max Power: | 600 Watts PEP. |
| Boom Length: | 12 Feet. |
| Longest Element: | 27 Feet 3 inches. |
| Turning Radius: | 14 feet 9 inches. |
| Mast Diameter: | 1.25 - 2.0 inches OD. |
| Surface Area: | 3.35 sq. feet. |
| Net weight: | 21 pounds. |
| Wind Survival: | 80 mph. |
