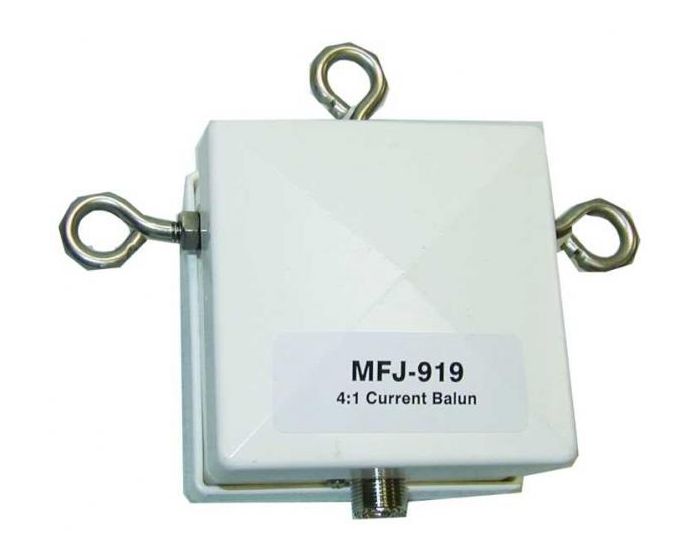

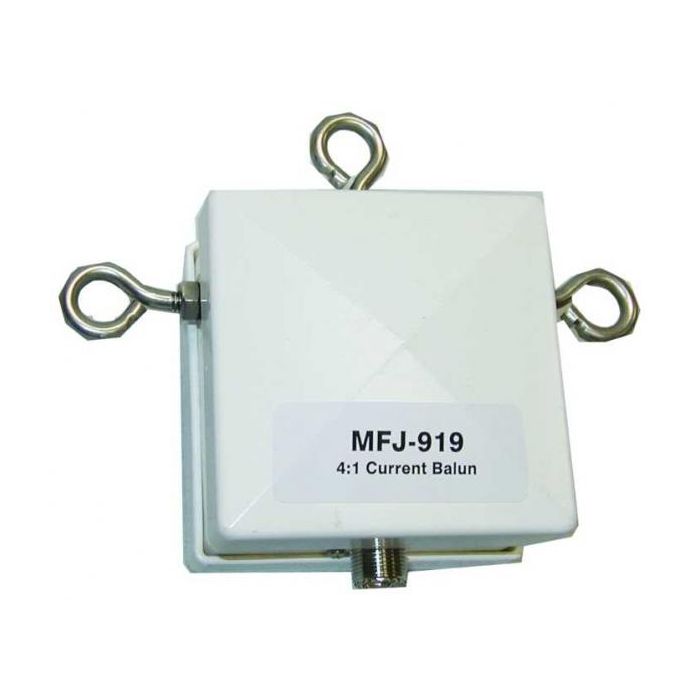

MFJ-919 Balun 4:1 Current 1500W

SKU
ZMF-919
Rating:
80 % of 100
$76.95
Add to Wish List

SAVE $8.00

Regular Price: $84.95

$8.00 Instant Rebate (Exp. 12-31-2023)

Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

MFJ-919 Balun 4:1 Current 1500W

The MFJ-919 is a high-performance antenna center insulator that functions as a true current balun with a power handling capacity of 1500 watts. This device is engineered to transform 200 ohms to 50 ohms, and its transmission line transformer construction, utilizing 100 ohm characteristic impedance transmission line, ensures a flat response from 160 to 10 meters.

Built with large, low permeability ferrite cores, the MFJ-919 is able to withstand full power, while its SO-239 connector and stainless steel hardware provide reliable and durable connections. The device also features a direct 14 gauge stranded copper wire connection to the antenna, and is housed in a heavy-duty weatherproof enclosure. Measuring 3½ x 3½ x 2½ inches, this compact and efficient device is an excellent choice for optimizing your antenna's performance.

1500 Watt 4:1 Current Balun

The MFJ-919 is a 1500 Watt true current baluns/antenna center insulators that transforms 200 ohms to 50 ohms. Transmission Line Transformer construction using 100 ohm characteristic impedance transmission line gives flat 160-10 Meter response. Large low permeability ferrite cores easily handle full power. SO-239, stainless steel hardware with direct 14 gauge stranded copper wire connection to antenna. Heavy duty weather housing. Measures 3½ x 3½ x 2½ inches.

Features and Benefits of the MFJ-919:

Features:

  • True current balun with a power handling capacity of 1500 watts
  • 200 ohm to 50 ohm transformation capability
  • Transmission line transformer construction using 100 ohm characteristic impedance transmission line
  • Flat response from 160 to 10 meters
  • Large low permeability ferrite cores for full power handling
  • SO-239 connector and stainless steel hardware
  • Direct 14 gauge stranded copper wire connection to antenna
  • Heavy-duty weatherproof enclosure
  • Compact size: 3½ x 3½ x 2½ inches

Benefits:

  • Optimizes antenna performance
  • Provides reliable and durable connections
  • Withstands full power
  • Allows for a flat response across multiple frequencies
  • Easy to install and use
  • Can handle a variety of weather conditions
  • Saves space with its compact size
