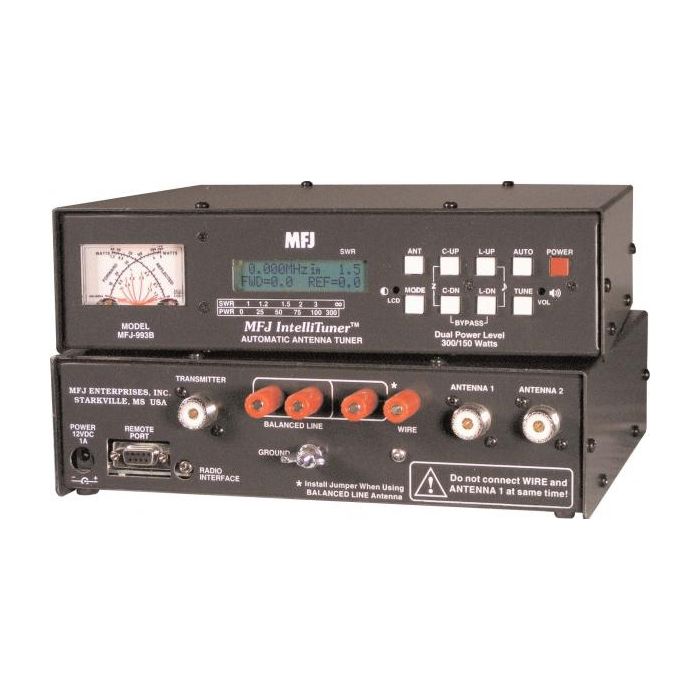

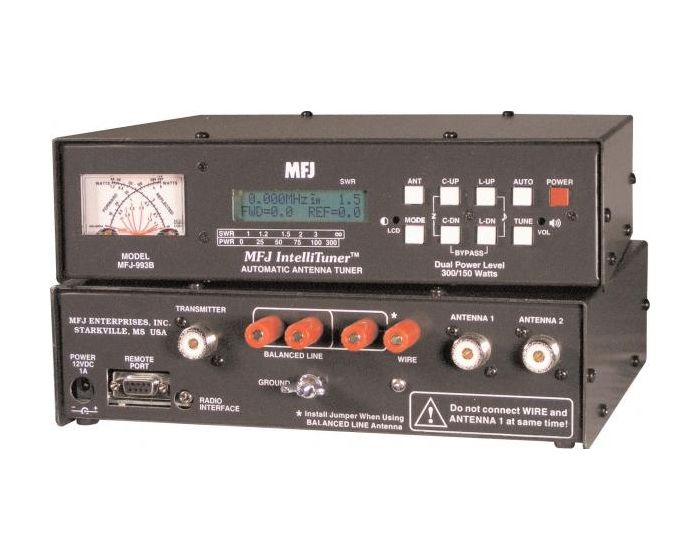

MFJ-993B Dual Power Auto Tuner SWR 1.8-30MHz 300/150W Balun
MFJ Dual Power Auto tuner + SWR 1.8-30MHz 300/150W Balun - MFJ-993B
MFJ IntelliTuner Automatic Tuner
Automatically tunes unbalanced/balanced antennas . . .Ultra fast . . . New 20,000 memories . . . Antenna Switch . . . Efficient L-network . . . Select 300 Watts (6-1600 Ohms) or 150 Watts (6-3200 Ohms) . . . 1.8-30 MHz . . . 4:1 current balun . . . Cross-Needle and Digital SWR/Wattmeter . . . Audio SWR meter . . . Backlit LCD . . . Remote control port . . . Radio interface . . .
World's First dual power level 300/150 Watts SSB/CW Tuner --
Select 300 Watt SSB/CW power level and match 6-1600 Ohm antennas Or . . . select 150 Watt SSB/CW power level and match extra wide-range 6-3200 Ohms!
The MFJ-993B IntelliTuner lets you tune any antenna automatically balanced or
unbalanced -- ultra fast.
It's a comprehensive automatic antenna tuning center complete with SWR/Wattmeter, antenna switch for two antennas and 4:1 current balun for balanced lines.
MFJ's exclusive IntelliTuner, Adaptive Search and InstantRecall algorithms
give you ultra fast automatic tuning with over 20,000 VirtualAntenna Memories.
You get a highly efficient L-network, 6-1600 ohm matching at 300 Watts SSB/CW
or extra-wide 6-3200 Ohm matching at 150Watts SSB/CW, 1.8-30 MHz coverage, Cross-Needle and digital meters, audio SWR meter, backlit LCD, remote control port, radio interface, heavy-duty 16 amp/1000V relays.
It learns while you're having fun
As you're ragchewing, contesting or DXing, your MFJ-993B is learning!
When you transmit, the MFJ-993B automatically tunes for minimum SWR and remembers your frequency and tuner settings. The next time you operate on that
frequency and antenna, these tuner settings are instantly restored and you're ready to operate in milliseconds!
MFJ new VirtualAntenna Memory system gives you 4 antenna memory banks for each
of 2 antenna connectors. Select up to 4 antennas on each antenna connector. Each antenna has 2500 memories, 20,000 total.
Intelligent ultra fast tuning
MFJ's InstantRecallTM first checks its memory to see if you have operated this frequency before. If so, tuning is instant-aneous and you're ready to operate.
If not, MFJ's IntelliTuner algorithm - - based on MFJ's famous SWR Analyzer
technology - - kicks in. It measures the complex impedance of your antenna. Next, it calculates the components it needs and instantly snaps them in. Then, it fine tunes to minimize SWR -- you're ready to operate. It's all done in a fraction of a second.
When the impedance is within its measurement range, the MFJ-993B is the fastest automatic antenna tuner in the world.
If it can't accurately determine impedance, MFJ's AdaptiveSearch algorithm
goes into action. Frequency is measured and relevant components values are determined. Only those values are searched for ultra-fast tuning.
For even faster searches, you can set the target SWR to 2 (settable 1.0-2.0).
You can manually tune when you can't transmit (for listening out of ham bands).
Cross Needle and Digital SWR/Watt Meters
Lighted Cross-Needle and digital meters lets you accurately read SWR, forward and reflected power at a glance.
An audio SWR meter lets you hear the tuned SWR when you cant see/read meters.
Turn on a highly visible, instant response SWR LCD bargraph when you need it.
Backlit LCD Display
An easy-to-read backlit LCD displays SWR, forward/reflected power, frequency,
antenna 1 or 2, L/C tuner values, on/off indicators and other information.
The MFJ-993B is a compact 10W x 2¾H x 9D inches. Use 12 -15 VDC/1 amp or 110 VAC with MFJ-1316.
Remote Control Plug in the MFJ-993RC, remote control and use your tuner elsewhere remotely.
MFJ-993B Interface Pre-wired Cables
Allows automatic tuning of your MFJ-991B/993B/994B IntelliTuner through radio.
- MFJ-5124I ICOM. Supports IC-706, 707, 718, 725, 728, 736, 746, 756, 765, 775, others that support AH-3 or AH-4.
- MFJ-5124A ALINCO. Supports DX-70, DX-77 and others.
- MFJ-5124K KENWOOD. Supports TS-50S, 450S, 570S, 690S, 850S, 870S, 2000 and others that support AT-300.
- MFJ-5124Y YAESU. Supports FT-100D, FT-857, FT-897, others.
- MFJ-5124Y2 YAESU FT-847.
- MFJ-5124Y3 Supports YAESU FT-1000MP and compatibles.
Michael Brigmond Brand Manager GigaParts 11/14/2022
MFJ 993B IntelliTuner™ Automatic Antenna Tuners
MFJ 993B IntelliTuner™ Automatic Antenna Tuners facilitate tuning any antenna automatically; balanced, unbalanced, or single-wire.
MFJ 993B tuners are comprehensive automatic antenna tuning centers with an SWR/wattmeter, a built-in antenna switch for two antennas, and a 4:1 current balun for balanced lines. They may be operated at a remote distance through a 9-pin to 9-pin computer cable using the MFJ-993RC remote control unit.
MFJ's exclusive InstantRecall™, IntelliTune™, and AdaptiveSearch™ algorithms provide fast automatic tuning with more than 20,000 non-volatile VirtualAntenna™ memories. Each of the two antenna ports have four banks of memory; each memory bank has over 2,500 non-volatile memories for tuner settings.
These tuners include a highly efficient switching L-network with wide matching capability, 1.8 to 30 MHz coverage, cross-needle power meters, a backlight LCD screen, a port for an accessory remote control, a radio interface port, and heavy-duty 16 amp/1,000 V relays. They are rated at 300 watts to match 6 to 1,600 ohm antennas (SWR up to 32:1) or 150 watts to match wider range of 6 to 3,200 ohm (SWR up to 64:1) antennas. A maximum of 256 values of inductance and 256 values of capacitance is available. With the capacitance switched between the input and output side, this provides a total of 131,072 L/C tuning combinations. The nominal tuning ranges are 0 to 24 microhenrys and 0 to 3,900 picofarads.
All MFJ IntelliTuners™ learn and remember. When you transmit, they automatically adjust for minimum SWR and remember the frequency and tuner settings, then safely store them in non-volatile memory. The next time you operate on that frequency (or close to it), tuner settings are instantly restored and you're ready to operate in milliseconds.
MFJ 993B IntelliTuner™ features include:
- Automatically matches antennas with impedance of 6 to 1,600 ohms or 6 to 3,200 ohms (depending on power level)
- Handle 300 watts (match 6 to 1,600 ohms) or 150 watts (match 6 to 3,200 ohms)
- Initially tune in less than 15 seconds, usually less than 5 seconds
- Over 20,000 non-volatile memories for tuner settings
- Four memory banks per antenna with over 2,500 memories per bank
- Highly efficient switching L-network matching circuit
- 1.8 to 30 MHz continuous frequency coverage
- Adjustable target SWR 1.0 to 2.0
- Adjustable SWR retune threshold 0.5 to 1.5 change
- Lighted cross-needle SWR/wattmeter with high, low, and auto range options
- Multifunction backlit LCD screen with contrast control
- Numeric readings for SWR, forward, and reflected power
- Bar meters for SWR, forward, and reflected power with range options
- Audio SWR meter with volume control
- Built-in frequency counter
- Two SO-239 unbalanced coax antenna connectors
- Connector for random wire or single wire antennas
- Built-in 4:1 current balun for balanced line antennas
- Optional remote control
- Optional radio interface for compatible radios
- Requires 12V DC at less than 1 amp for operation
|Manufacturer's Part Number:||MFJ-993B|
|Part Type:||Antenna Tuners|
|Product Line:||MFJ 993B IntelliTuner™ Automatic Antenna Tuners|
|Antenna Tuner Type:||Automatic|
|Antenna Tuner Location:||Desktop|
|Mobile Whip Tuner:||No|
|Tuner Maximum Power Rating:||300 watts|
|Frequency Range:||1.8-30 MHz|
|Tuner Inductor Type:||Automatic|
|Tuner Bypass Switch:||Yes|
|Tuner Control Type:||External|
|Internal Dummy Load:||No|
|Internal Balun Type:||Current|
|DC Power Required:||Yes|
|Tuner Width:||10.000 in.|
|Tuner Height:||2.750 in.|
|Tuner Depth:||9.000 in.|
|Tuner Weight:||4.80 lbs.|
