Open Box AlexLoop Premier Portable Magnetic Loop Antenna SN159324

No free freight
Add to Wish List

Sold Out!

Check Store Stock


Las Vegas:

Distribution Center:

Open Box AlexLoop Premier Portable Magnetic Loop Antenna SN159324. Tested with IC-705 on a POTA trip recently and worked several stations.

NOTE: BNC connector seems loose but worked fine when used.

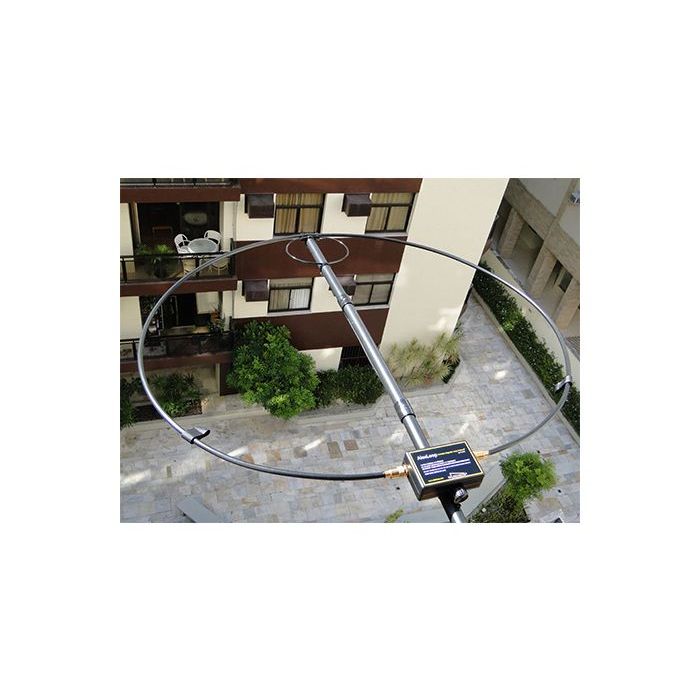

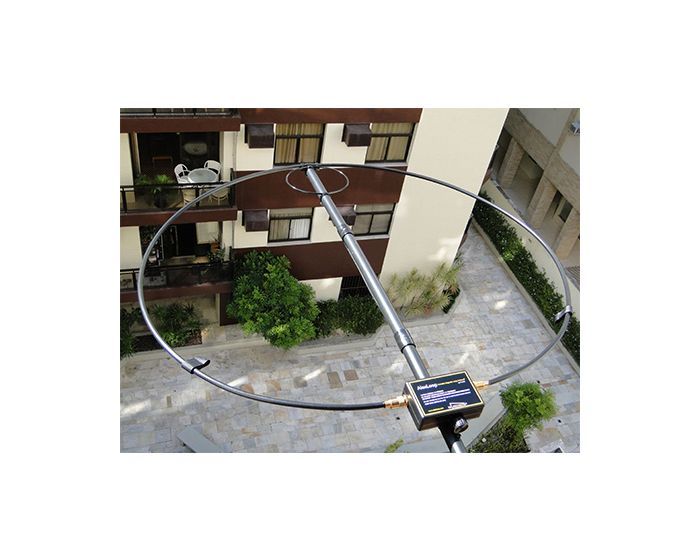

AlexLoop Premier Portable Magnetic Loop Antenna

AlexLoop Portable HF Loop Antenna was invented, patented and introduced to the ham market by Alex Grimberg, PY1AHD, in 2007. Alex has been an active ham for over 50 years and especially enjoys portable outdoor operation on HF bands.  The AlexLoop is an embodiment of Alex’s many experimentations and experiences over the years and he has constantly added improvements on it.

Each AlexLoop is completely hand-crafted by Alex himself from the first screw to the final test. In 12 years on the market, the AlexLoop has become the most popular portable magnetic loop antenna in the world and has been considered the gold standard of magnetic loop antennas.

The portable HF operating revolution brought about by the AlexLoop has spawned many imitators but none has reproduced the efficiency, portability and usability of the AlexLoop.

Here are some AlexLoop unbeatable features:

By far the lightest portable Magnetic Loop on the market: only 2.1 lbs (less than 1 kilogram).

One-hand operation. The AlexLoop's light weight and its thumb tuning allows for HF pedestrian walk-and-talk operation. No other loops antennas on the market can do that.

The AlexLoop’s light weight allows it to be mounted on a small tripod, or to be attached to a balcony rail with an inexpensive plastic clamp.

The most efficient portable magnetic loop on the market due to the four gold plated mono block PL259 connectors that reduce the connection ohmic loss to the transmitting coaxial cable loop.

The exciter loop is directly soldered to the BNC connector to avoid the insertion loss of a mechanical contact.

By far the quickest to set up. AlexLoop can be assembled in only 90 seconds in the field.

The fastest tuning due to a special reduction gear on the AlexLoop variable capacitor. It can scan from 7 to 30 MHz in only 4 seconds.

The AlexLoop comes with a specially designed carrying bag that allows a quick assembly and disassembly of the antenna.

AlexLoop Antennas were designed for low weight, portability, versatility and as the ideal for the, HF Packer, for the antenna restricted ham, RV/camping, hotels, apartments, condominiums and for shortwave listening.

AlexLoop Specifications:

Frequency Coverage:

From 7 MHz to 30 MHz

Maximum Power

25 Watts SSB

10 Watts AM / FM / CW / Digital Modes

AlexLoop Weight:

34 Oz - 966 grams

Bag dimensions in inches:

15.7” X 11.4” X 3.5”

The AlexLoop has long been the gold standard of the portable magnetic loop antenna.

The AlexLoop Premier is the new and further enhanced version of the original AlexLoop with special manufactured ultra-low loss mono block gold-plated PL259 connectors.
