Open Box Diamond Antenna CP6AR Vertical Antenna SN159009. Box is rough from shipment, no issues with antenna.

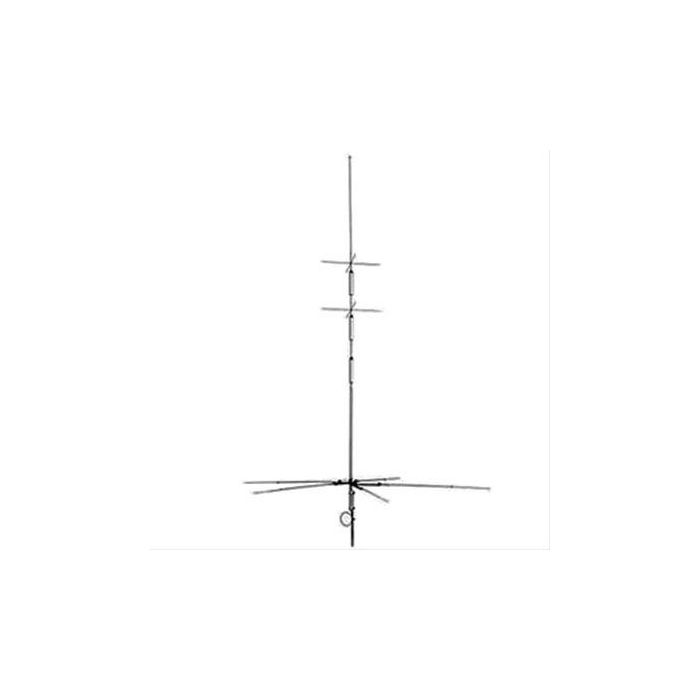

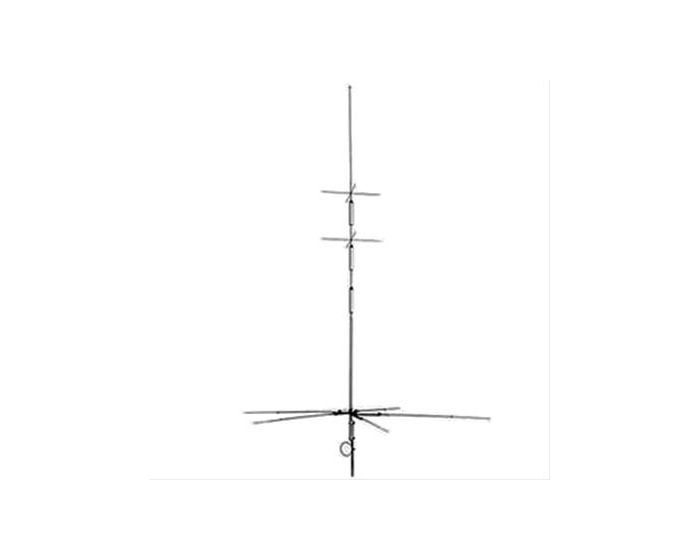

CP6AR Multi-Band HF Antenna

The CP6AR multi-band trap-vertical antenna for HF bands, covering the 75*, 40*, 20, 15, 10 and 6m amateur bands. Made from heavy duty aluminum, the CP6AR assembles easily, and yeilds excellent performance and reliability from a compact base station antenna. Its compact size allows for many mounting options. Minimum 15' diameter required for mounting radials. No additional ground radials required

o Compact size
o Heavy-duty aluminum antenna sections
o Easy assembly
o No additional ground radials required
o Mounting hardware included

Frequency: 75 - 40 - 20 - 15 - 10 - 6m
Power: 200 watts PEP
Impedance (output): 50 ohms
VSWR: 1.8:1 (Nominal)
Element Phasing: 1/4 wave trap vertical groundplane.
Radials: Six, Trap design.
Grounding: Direct grounding. Antenna element and radials connected to mounting pipe.
Max Wind Rating: 80 mph (no ice)
Mast Diameter Acceptance: 1.2" - 2.4"
Overall Length: 15.1' (4.6m)
Weight: 9.9 lbs. (4.9kg)
Connector: SO239 female UHF

*CP6AR will cover small portion of 75 meter phone band. Antenna tuner required for additional coverage.
