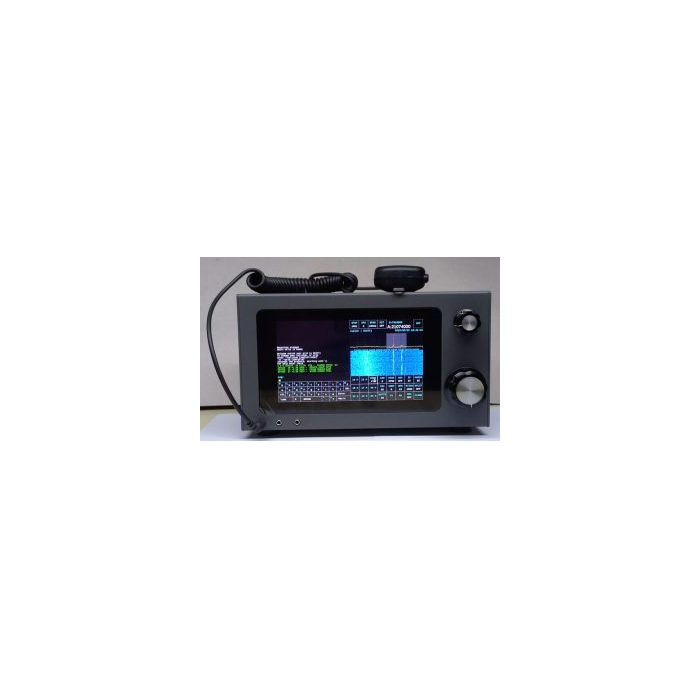

Open Box HF Signals sBitx v3 SDR Transceiver - Assembled
The sBitx is an open source, high performance Hybrid SDR for the 21st century radio amateurs. It is powered by an internal Raspberry Pi 4, it has CW/FT8/etc, logging software, macros, spotting – all preconfigured and working out of the box.
7 inch touch screen: The largest display shipped with a transceiver
Integrated Modes: CW, logging is integrated into the radio, no setup and wires to deal with.
Noiseless performance from it’s all electronic T/R switching, fanless power amplifier and electronically selected filters.
Temperature Compensated Crystal Oscillator to provide rock solid, low phase noise operation.
Band-stacking VFOs with 4 memories on each of the 8 bands,
Audio Tracking Filter variable from 50 Hz to 4000 Hz
High performance electronics with a passive-FET front end, 8 crystals’ filter and a low phase noise, temperature compensated crystal oscillator.
Editable macros that make it a breeze to work DX or compete in contests.
High Accuracy Real Time Clock for accurate logging and FT8 timings
Web-based Remote Operation from your PC/tablet/phone. Works without any downloads, just use your browser.
Add a second screen with the HDMI port
FT8
FT8 that works out of the box.
One touch operation. Touch to call CQ or start the contact
Automatically logs all the QSOs into the built-in logbook
In-built, high accuracy, real-tme clock
CW with Logging and Macros
Totally noiseless, fast electronic T/R without noisy relays
In-built N1MM style Macros support Running and S&P
Sensitive decoder
Raised cosine cw keying with perfect shaping
Continuously variable filter from 3 KHz to 50 Hz
Use the onscreen touch keyboard or add a USB/wireless keyboard for effortless CW sending
SSB
The sBitx, uses convolution SDR technology and a 7 element crystal filter to provide superb sound quality with punchy clarity.
Built-in microphone and touch screen PTT as an alternative to plugging in a mic
It works with any other mic (standard audio jack)
Transmit IMD of 30 db
Receiver with variable receiver bandwidth from 3KHz to 1.8 Khz
Built-in two tone generator to align external linear amplifier or tune your antenna
Logger and Logbook
In-built Logger and Logbook with RDMS support.
N1MM style logger with macros and automatic logging of contacts with the frequency, mode, time automatically filled in.
Use macros on CW/FT8 to send out standard messages with the press of a button/key.
Look up the Callsigns from QRZ.com
Visit www.sbitx.net for manuals, how-tos, articles.
