Open Box MFJ-264 1.5KW Dry Dummy Load SN112818

Open Box MFJ-264 1.5KW Dry Dummy Load SN112818

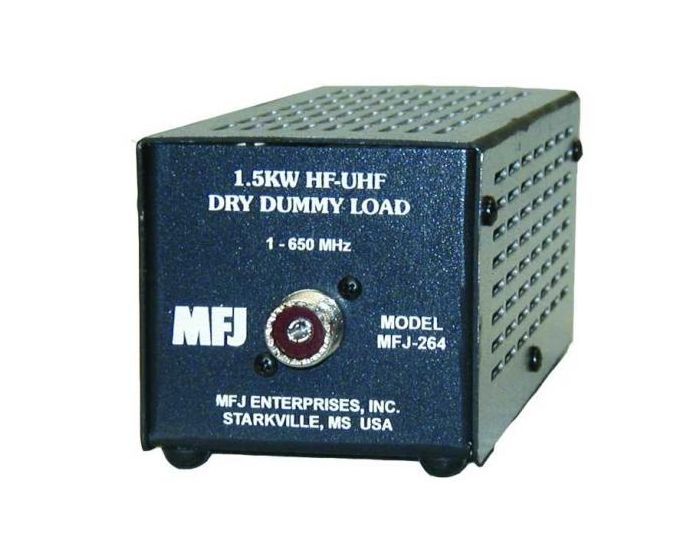

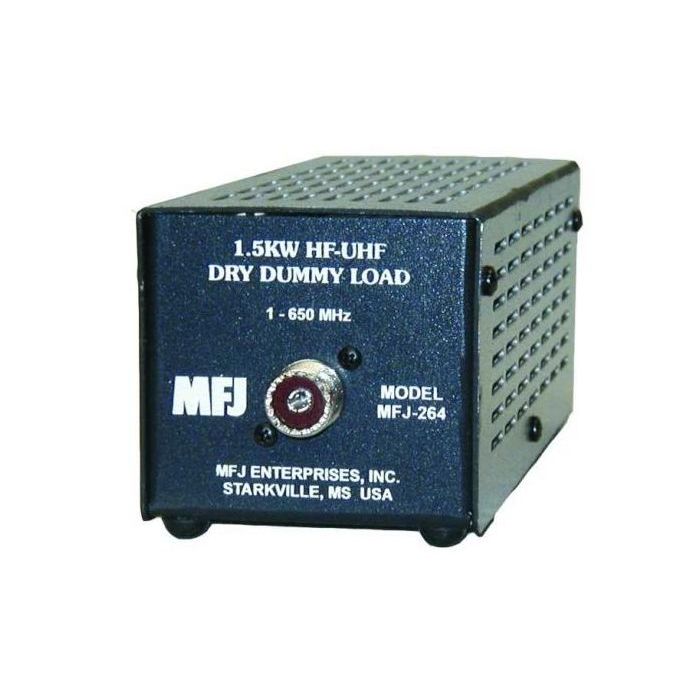

The MFJ-264 is ham radio's most versatile 50 Ohm dummy load. It does it all -- works with all radios from 160 Meters through 650 MHz and from QRP to the full 1500 Watt legal limit. The MFJ-264 has a SO-239 connector.

You get SWR below 1.3 to 650 MHz and 1.1 at 30 MHz. Handles 100 Watts for 10 minutes, 1500 Watts for 10 seconds. It has a strong lightweight aluminum construction. The MFJ-264 Dry Dummy Load measures 3Wx3Hx9D inches and comes with MFJ's famous No Matter What one year limited warranty.

Specifications:

• Impedance: 50 OHMS VSWR: Less than 1.3:1 at less than 650 MHz
• Power Dissipation: 1500 Watts for less than 10 seconds -- 100 Watts for 10 minutes
• Voltage Gradient: 10 kV / inch
• Operating Temperature: Up to 350'C
• Frequency Range: 1-650 MHz; usable to 750 MHz
