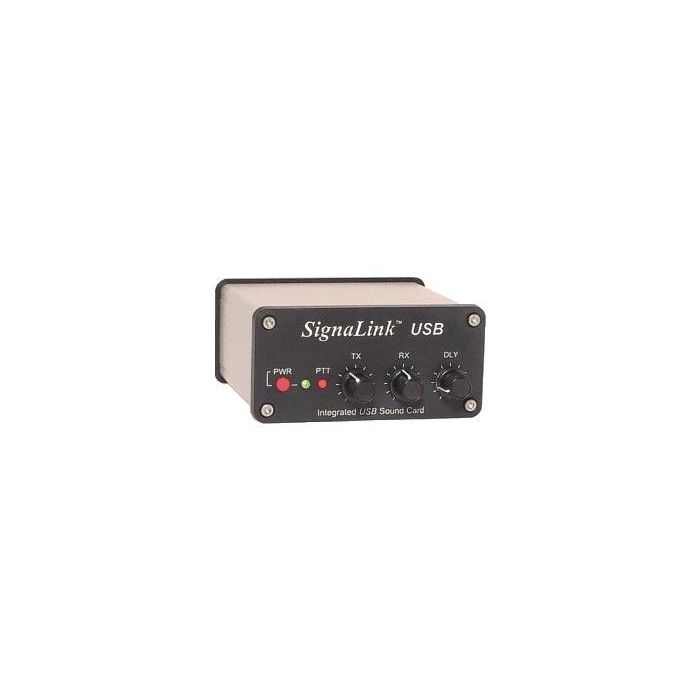

Open Box Tigertronics SignaLink USB for 8-Pin DIN Data/Accessory Port Connector SN187404

Open Box Tigertronics SignaLink USB for 8-Pin DIN Data/Accessory Port Connector SN187404

Features:

• FCC Certified - Unlike many competitors, the SignaLink USB has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
• Built-in Low Noise Sound Card - This provides optimum performance and frees your computer's existing sound card for other uses. It also greatly simplifies installation and operation, by reducing the number of cable connections, and by providing consistent performance that is independent of the computer's sound card.
• Simple Installation - The SignaLink USB has only one USB connection to the computer, and in most cases, only one connection to the radio* There are no audio cables to get mixed-up!
• Easy Setup and Operation - The SignaLink USB's built-in sound card provides consistent audio levels and performance that is completely independent of the computer's sound card. This lets us streamline our Audio Level Setting procedure like never before. Simply set the software "Transmit" audio controls as described in the SignaLink manual, and then adjust the SignaLink's front panel "TX" control for the desired RF power level. Setting of the RX Level is even easier, as this is done completely by the SignaLink front panel "RX" control. There are no software "Recording" controls to adjust!
• Convenient Front Panel Controls - You can now easily adjust your TX Audio, RX Audio and Transmit Delay without having to open the SignaLink case. This lets you optimize your Transmit Audio (RF Power), Receive Audio level ("waterfall drive"), and Transmit "Hang Time" delay "on the fly"!
• Works with ALL Radio Mic, Data, and Accessory Ports - The SignaLink USB works with ALL radios, and can be attached to your radios Mic, Data, or Accessory port. This allows most users to attach the SignaLink to the back of the radio (Data or Accessory Port) and leave the microphone plugged in!
• Supports All Sound Card Digital & Voice Modes - The SignaLink USB supports ALL Digital and Voice modes that are available for sound card interfaces. This includes ALL traditional modes such as CW, RTTY, AMTOR, and SSTV (to name a few), and ALL new modes such as PSK-31, MT-63, and EchoLink. All standard sound card communications programs will work with the SignaLink USB.
• Complete Isolation - Unlike some interfaces on the market, ALL SignaLink models COMPLETELY isolate your computer from your radio. This eliminates troublesome ground loops and prevents hum and noise from degrading the signals. The SignaLink USB provides isolation through the use of audio transformers and a relay-based PTT keying circuit.
• Transmit Audio / "Side Tone" Output - A rear panel "Monitor" jack can be used with headphones or powered (amplified) speakers to monitor your Transmit Audio, or Side Tone during CW operation.
• External Speaker Support - If your installation requires that you attach the SignaLink to your radio's External Speaker jack, then you can plug an external speaker or headphones into the SignaLink's rear panel "Aux" jack and continue to hear your RX Audio.
• No External Power Required - The SignaLink USB is always powered by the computer's USB port, so external power is NEVER required.

What's Included?

• SignaLink USB main unit
• Driver mini-CD
• Internal Jumper wire pin-out instructions (Don't feel like messin' with tiny wires inside? Buy the 8-pin Jumper Module instead.)
• USB Cable (to the computer)
• 8-pin DIN cable (to the radio)

Compatible Radios Include:

IC-275A
IC-707
IC-725, IC-728, IC-729
IC-735, IC-736, IC-737
IC-7400
IC-746
IC-746PRO**
IC-756 / 756PRO
IC-756PROII, IC-756PROIII
IC-761, IC-765
IC-775, IC-775DSP
IC-781
IC-7600, IC-7700, IC-7800
IC-820H, IC-821H
IC-910H
IC-M700PRO
IC-M710
IC-M802

**This jack supports HF operation only. If you want to operate both HF and VHF, then you'll need to use the 6-pin mini-DIN Data Port instead.
