Powerwerx Panel Mount Combination USB QC3.0 and USB Type-C QC4.0 75W Fast Device Charger
Â
High output combination USB QC3.0 and USB Type-C QC4.0 charger. Powerful USB Type-C is capable of 60W output with any DC input of 9-24V DC. Combined output of 78W total. Includes multiple fast charging protocols for laptops, tablets, and smartphones. Fits standard 1-1/8" diameter hole.
|

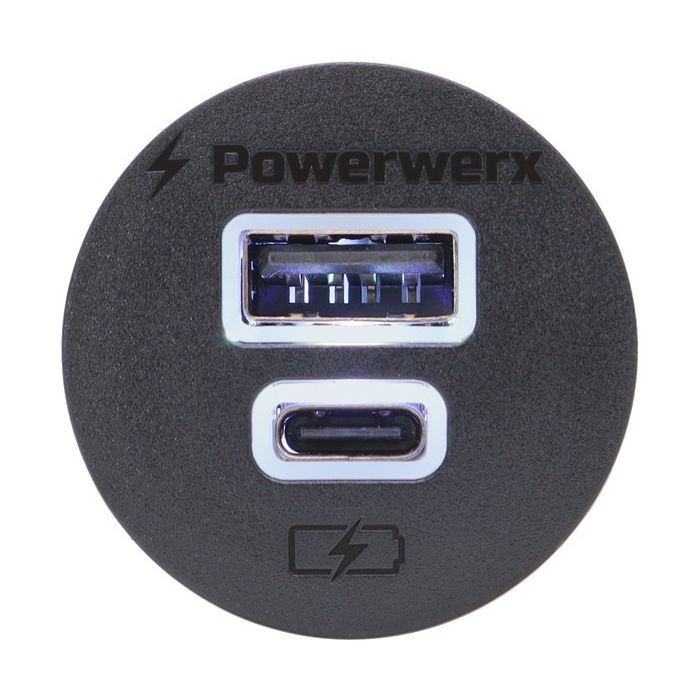

All black body with soft white illuminated LED lights for OEM installations that demand a clean and modern look
|
The QC4.0 USB Type-C is capable of high output wattages for charging smartphones, tablets, and even laptops. Higher input voltages allow the USB Type-C to output upwards of 60W.
|
|
Combination USB QC3.0 and USB Type-C QC4.0 fast device charger with support for multiple fast charging protocols including: Qualcomm QC4.0, Qualcomm QC3.0, Qualcomm QC2.0, Apple 2.4A, Samsung Adaptive Fast Charging (AFC), Huawei Fast Charging Protocol (FCP), Huawei SuperCharge Protocol (SCP), and PD3.0 PPS (27W/36W/48W/60W).
|
The included weather tight protective cover seals the USB's when not in use. Heavy duty environmental protective cover has a double seal to keep out unwanted moisture and debris. Raised texture grip enables easy removal of the cover.
|
| Operating Voltage |
9-32V DC |
| Type-C USB PD3.0 Output |
60W Max (5V/3A, 9V/3A, 15V/3A, 20V/3A)(PPS 5.0~5.9V/3A, PPS 3.3~20V/3A) |
| Type-A USB QC3.0 Output |
18W Max (9V/2A, 6V/3A) |
| Total Output |
78 Watts Peak Total Combined Power Output (75 Watts Nominal Total Combined Output) |
| Terminals |
1/4" Nickel Plated Blades |
| Panel Mount Length |
3.25 in (not including wiring or terminals) |
| Mounting |
Fits 1-1/8" hole size |
| Operating Temperature Range |
-13 to 140 °F (-25 to 60°C) |
| Over Voltage Protection |
Yes |
| Over Current Protection |
Yes |
| Over Temperature Protection |
Yes |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Includes |
Protective dust cap cover and rear mounting/locking nut |
| Recommend Installation |
Use IFH-18-02 inline blade fuse holder with 7.5A fuse on 12/24V input |
| Warranty |
6 Months |
NOTE: Included dust cover does not work with PanelPlate1, PanelPlate2, PanelPlate3, PanelPlate4, PanelPlate4W, PanelPlate6, PanelPlateSB2, and PanelPlateSB3. The dust cover will need to be removed when using these mounting plates.
