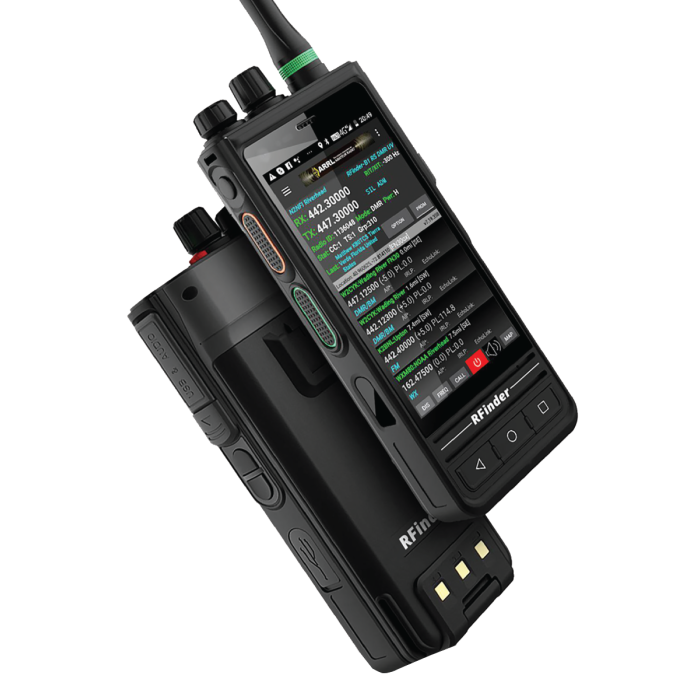

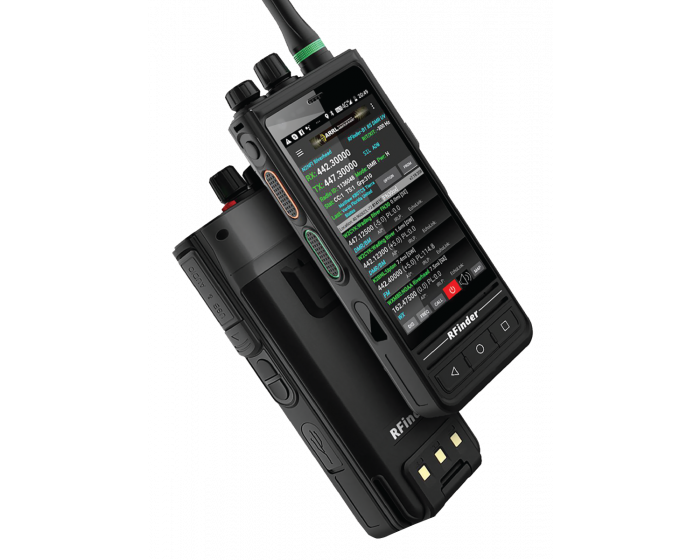

RFinder B1 Classic Android DMR, ROIP, and FM HT Radio
Join the world of RFinder Android Radio… and see why our users say…”The Future Has Arrived!”
This is the device you've been waiting for! A dual-band DMR/FM handheld that NEVER needs a code plug! Amateur radio communication has taken a tremendous leap in technology through the development of RFinder!
- DMR over IP (DMRoIP) allows users to connect to over 220,000 DMR amateur radio operators from all over the world without the need for a hotspot or a local DMR repeater!
- RFinder radios are easy to program with no software needed, and an easy point and click interface!
- RFinder is the first “Click and Talk Transceiver” utilizing its built-in World Wide Repeater Directory (WWRD). Easily point and click on the repeater you wish to use in the WWRD, and you are connected!
And not only is it the most advanced DMR/FM handheld on the market, it's also a fully-functional Android smartphone! 64GB of storage, 4GB of RAM, and embedded cellular technology and wifi connectivity - which allows you to connect to Brandmeister and TGIF with no external hotspot needed!
RFinder is the most modern dual band FM DMR radio on the market with the bonus of evolving software that incorporates the latest technological innovations!
Subscription to the WorldWideRepeaterDirectory is managed through the app, downloadable through Google Playstore or Apple Store. This software, once registered, works on any device- including this B1 HT, tablet, phone, and desktop PC! If you need to renew your RFinder subscription, please visit RFinder Subscription.
AT&T Customers:
"Using this device on the AT&T network may require calling AT&T to register the IMEI. In the event their system loses that registration, you may get degraded performance or no service at all and you may want to request that they install a monitor in their system to ensure your IMEI remains in their system. Contact AT&T at 866-344-6217."
~Bob Greenberg, CEO of RFinder
GigaParts does not provide end-user product support for RFinder, we trust the professionals! Please contact RFinder directly at 631-610-9635, the RFinder Facebook Group, or Submit a Ticket.
**Model shown with optional Side Panel Dust Cover, which is not included.**
- DMRoIP - No Hotspot or Repeater Needed
- APRS and RFinder Network Mapping
- Full Integration with the Worldwide Repeater Directory
- QRZ Integration
- HF Propagation Conditions
- Out of the Box RX/TX of 136 - 174MHz and 400 - 490MHz
- RFinder = DMR Simplified!
B1 Specs |
|
|
◇ Radio |
136-174, 400-490Mhz, FM Wide/Narrow, DMR Tier II |
|
Features |
|
|
◇ Walkie talkie |
8 Watts DMR | 4 Watts Analog |
|
◇ Selling points |
LTE 4G smartphone,IP67 rugged,PTT:DMR+UHF/DMR+VHF,POC |
|
◇ Display |
4.0 inch |
|
◇ Glove wearing touch |
Support |
|
◇ Resolution |
640*1136 pixels TFT LCM |
|
◇ Sim |
Dual SIM,Dual standby |
|
◇ Network |
GSM, WCDMA, EVDO,TD-SCDMA,TDD/FDD-LTE |
|
◇ Band |
2G:GSM850/900/1800/190; 3G:WCDMA850/900/1900/2100 LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B17/B20 LTE-TDD:B38/B39/B40/B41 |
|
◇ CPU |
MTK6765,Octa core,2.3GHz |
|
◇ Memory |
4GB RAM +64GB ROM |
|
◇ Mini SD card |
Support up to 128GB |
|
◇ Battery |
2500mAh@7.6V(Standard) |
|
◇ Color |
Black |
|
◇ Size |
148x64x30.3mm, |
|
◇ Weight |
430g |
|
◇ Channel knob |
Yes, easy to operate |
|
◇ PTT |
Push-to-Talk over two way radio |
|
◇ POC |
Yes,Push-to-Talk over Cellular/Wifi |
|
◇ GNSS |
GPS/BEIDOU/GLONASS |
|
◇ Charging Dock |
Yes |
|
◇ Belt Clip |
Yes |
|
◇ Microphone |
Yes, dual mic to anti noise |
|
◇ IP Class |
IP67 |
|
◇ Sensors |
Gravity,Gyro,Distance sensor,Light sensor,3D accelerator,Pressure sensor. |
|
◇ FM |
yes |
|
◇ NFC |
Optional, 13.56MHZ |
|
◇ Speaker |
2 Watts |
|
◇ DMRoIP enabled with access to Brandmeister and TGIF |
|
|
◇ Camera |
Front camera:5mega pixelsrear camera:13mega pixels |
|
◇ Picture size |
up to 4096*3072 pixels |
|
◇ Flash LED/Torch |
1 flash led, 200 lumina |
|
◇ Video record |
1920*1080 recording,30fps |
|
◇ External camera |
support, optional |
|
◇ External palm mic |
support, optional |
|
◇ Data |
|
|
◇ WLAN |
WIFI 802.11 a/b/g/n, 2.4G/5.8G |
|
◇ Data port |
USB 2.0 |
|
◇ USB port |
20pin multiple port,,support OTG. |
|
◇ OTG |
support |
|
◇ Bluetooth |
BT4.0 |
|
◇ |
Battery x1, 2500mAh@7.6V(Standard) |
|
◇ |
Dual Band antenna x1 |
|
◇ |
Data cable x1 |
|
◇ |
Charger Adapter x1 |
