RFinder B1+ HT Radio, Android DMR, ROIP, FM, and USB QC3.0

SKU
ZRF-B1PLUS
Rating:
90 % of 100
$1,099.99
Add to Wish List
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

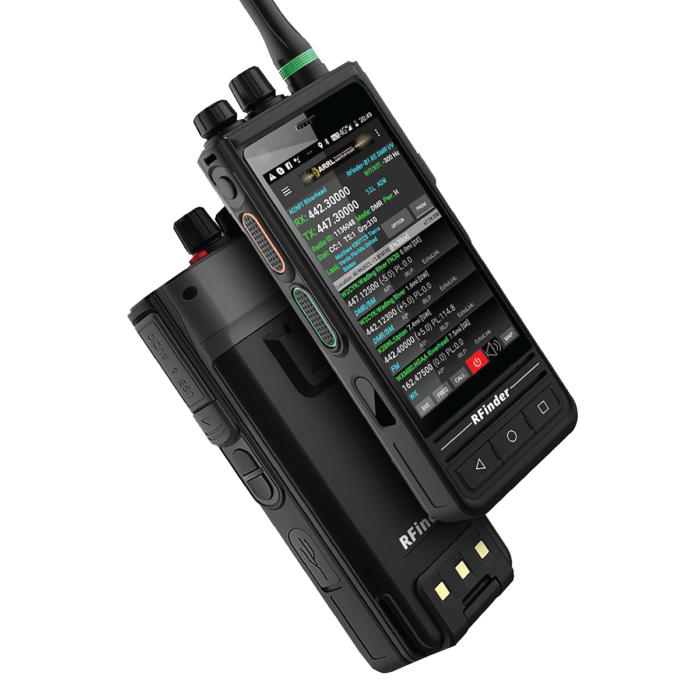

RFinder B1+ Android DMR, ROIP and FM HT Radio

           Now with upgraded OS and USB-C quick-charging!  NOW WITH MORE RAM!  6GB!

NO Hotspots.

NO code plugs.

NO Repeater Directory.

NO Programming Software.

RFinder B1.  Keep it simple.

For initial set-up, please click here!  ALL UNITS require upgrading to the latest firmware prior to operation!

The RFinder B1+ is now available!  New and Improved!  Imagine a dual-band DMR/FM handheld that NEVER needs a code plug! No programming, ever! Uses your GPS position to find the repeaters in your area, anywhere on Earth!  Now with a new chipset, upgraded OS, and USB-C on-board quick-charging.  What a blast...it just works!

This is a full 64GB Storage 4GB Android Cellphone/DMR Radio...carry one device, have the world at your fingertips.  A true thing of beauty. WiFi, NFC, GSM, LTE (yes, Verizon, TMobile and ATT and their MVNO's as well as CA, SA, EU, Oceana, and Asian carriers)...and of course 136-174/400-470MHZ DMR/FMW/FMN.

GigaParts does not provide end-user product support for RFinder:    Please contact RFinder directly at 631-610-9635 or RFinder Facebook Group or Submit a Ticket

*subscription to the WorldWideRepeaterDirectory is managed through the app, downloadable through Google Playstore or Apple Store.  This software, once registered, works on any device!  So yes, this B1 HT, but also your tablet, your other phone, and your desktop PC!  If you need to renew your RFinder subscription* please visit RFinder Subscription

RFinder Manual

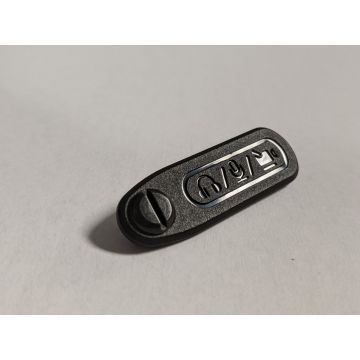

 **Model shown with optional Side Panel Dust Cover, not included

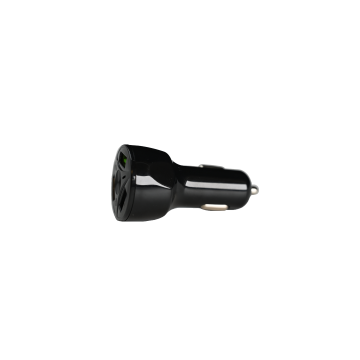

The B1+ does NOT come with a USB power adapter - available as a separate purchase through GigaParts.

AT&T Customers:

"Using this device on the AT&T network may require calling AT&T to register the IMEI. In the event their system loses that registration, you may get degraded performance or no service at all and you may want to request that they install a monitor in their system to ensure your IMEI remains in their system. Contact AT&T at 866-344-6217."     ~Bob Greenberg, CEO Rfinder







  • DMRoIP - No Hotspot or Repeater Needed
  • APRS and RFinder Network Mapping
  • Full Integration with the Worldwide Repeater Directory
  • QRZ Integration
  • HF Propagation Conditions
  • Out of the Box RX/TX of 136 - 174MHz and 400 - 490MHz
  • RFinder = DMR Simplified!

For initial set-up, please click here!  ALL UNITS require upgrading to the latest firmware prior to operation!

◇ Radio 136-174, 400-490Mhz, FM Wide/Narrow, DMR Tier II
◇ Suitable industry:
◇ Industry Police/Security/Railway/Critical communication/Rescue/Traffic management
Property management, warehousing and logistics/Oil and Gas/Construction site/Port


Features


◇ Walkie talkie 4Watts DMR+Analog, UHF,
◇ Selling points LTE 4G smartphone,IP67 rugged,PTT:DMR+UHF/DMR+VHF(optional),POC
◇ Display 4.0 inch
◇ Touch panel 5 points capacitive screen,support rainwater operation,IPS.
◇Glove wearing touch Support
◇ Resolution 640*1136 pixels TFT LCM
◇ Sim Dual SIM,Dual standby ,the third SIM card for private network(Optional)
◇ Network GSM, WCDMA, EVDO,TD-SCDMA,TDD/FDD-LTE
◇ Band 2G: GSM850/900/1800/1900;3G:WCDMA850/900/1900/2100
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B17/B20
LTE-TDD:B38/B39/B40/B41
4G - LTE

◇ OS Android 9
◇ CPU MTK6765,Octa core,2.3GHz
◇ Memory 6GB RAM + 128GB ROM
◇ Micro SD card Support up to 128GB
◇ Battery 3500mAh@7.6V(Standard)
◇ Colour Black
◇ Size 148x64x30.3mm,
◇ Weight 430g
◇ SOS Yes
◇ Channel knob yes,easy to operate
◇ PTT Optional,Push-to-Talk over two way radio
◇ POC Yes,Push-to-Talk over Cellular/Wifi
◇ programmable key Support,Customer can customize the shortcut key for special function purpose by software
◇ GNSS GPS/BEIDOU/GLONASS

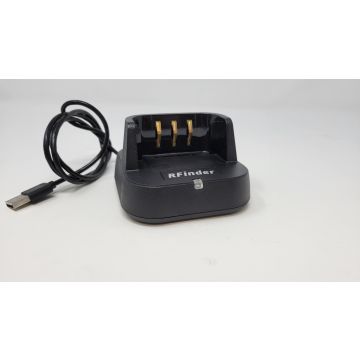

◇charging dock yes
◇quick charge support 2A QC3.0
◇Clip yes,
◇Micphone yes,dual mic to anti noise
◇ IP Class IP67
◇ Sensors Gravity,Gyro,Distance sensor,Light sensor,3D accelerator,Pressure sensor.
◇ FM yes
◇ NFC Optional, 13.56MHZ
◇ Speaker 2 Watts
◇ Others RoIP DMR enabled, in development
◇ Camera Front camera:5 mega pixelsrear camera:13 mega pixels
◇ Picture size up to 4096*3072 pixels
◇ Flash LED/Torch 1 flash led, 200 lumina
◇ Video record 1920*1080 recording,30fps
◇External camera support, optional

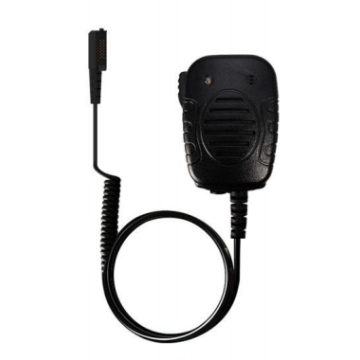

◇ External palm mic support, optional
◇ Data
◇ WLAN WIFI 802.11 a/b/g/n, 2.4G/5.8G
◇ data port USB 2.0
◇ USB port 20pin multiple port,2A charge,support OTG.
◇ OTG support
◇ Bluetooth BT 4.0

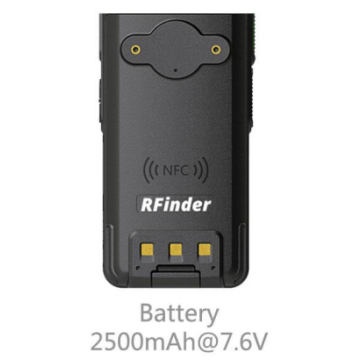

Battery x 1, 2500mAh Battery
Walkie talkie antenna x1
Data cable x1
Charger Adapter x1
