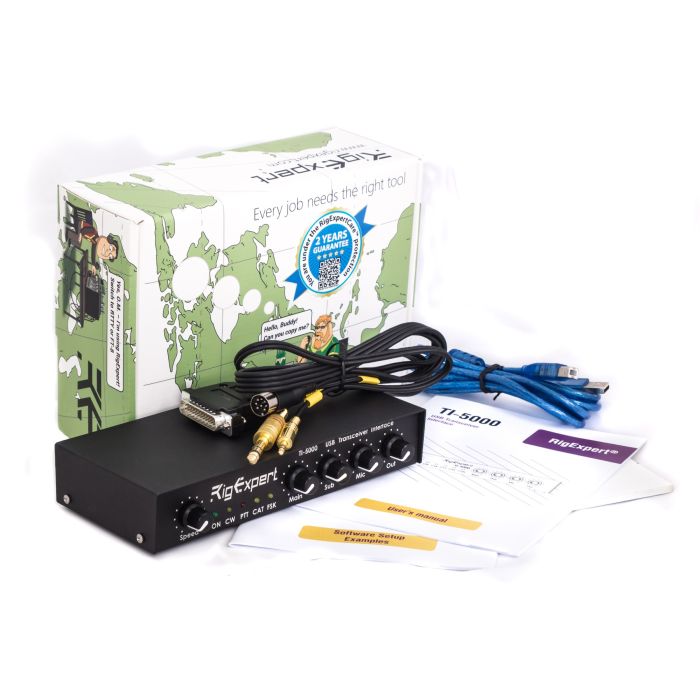

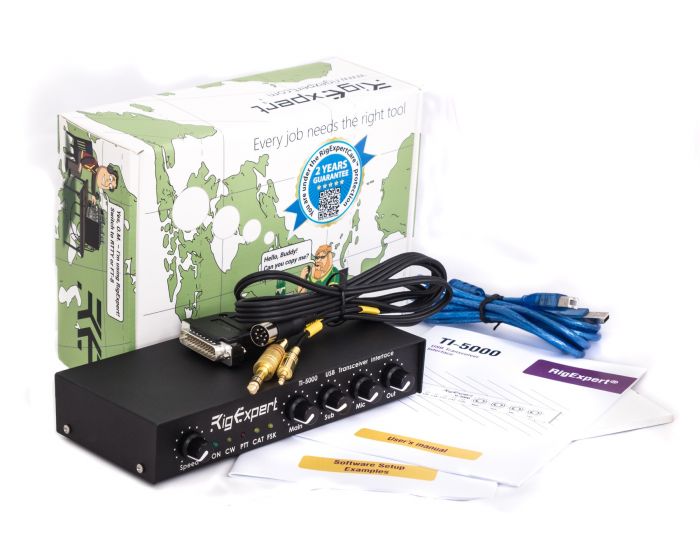

RigExpert TI-5000 USB Interface for FT8, WSJT

New from RigExpert is the new and powerful USB interface for your transceiver that is ideal for FT8 and WSJT modes and is based on high-quality stereo codec IC for operating phone, CW and digital modes using your home computer.

Analog audio interface is a connection to transceiver audio output (external speaker connector or line output) and transceiver audio input (microphone connector or line input). Audio interface enables operating digital modes, recording and playing voice, as well as other useful functions (such as measuring levels of a signal from the air) by using a computer. Input (two channels) and output volume levels are adjusted by potentiometers on the front panel of the device.

CAT (Computer Aided Transceiver) system provides control of transceiver frequency, operating mode and other functions by computer software. Normally, modern transceivers have serial (with various signal levels) link providing CAT interface.  In RigExpert TI-5000, CAT interface port is recognized as a COM port by computer software.

FSK (Frequency Shift Keying) is a popular method of transmitting digital messages over radio primarily used in radioteletype (RTTY) mode. Most transceivers provide FSK modulator feature to make the RTTY signal stable and clear.  A separate COM port is assigned for the FSK output when using RigExpert TI-5000.

Transceivers provide PTT (Push To Talk) and CW (Continuous Wave) keyer inputs to allow setting the transmitter on or off.  In RigExpert TI-5000, PTT and CW outputs are assigned to the RTS and DTR lines of a separate COM port.

Independent keyer paddle input plus built-in RigExpert implementation of WinKey with separate virtual COM port for WinKey.

Footswitch input

Microphone input with QSO Recording option and level control

Plug-and-Play configuration

Windows/MacOS/Linux compatible

Compatible with any HAM Radio software: MixW, MMTTY, WSJT, etc.


Transceiver Cables for RigExpert Interfaces

IC-001:

Icom IC-707, IC-275, IC-721, IC-725, IC-726, IC-728, IC-729, IC-732, IC-735, IC-736, IC-737, IC-738, IC-756 (all models), IC-761, IC-765, IC-775, IC-781, IC-7851, IC-970, IC-7600, IC-7610, IC-7700, IC-7800

IC-002:

Icom IC-703, IC-706 (all models), IC-718, IC-7000 (using DIN-13 ACC socket), IC-7200, IC-7300, IC-7410, IC-9100

IC-003:

Icom IC-746 (all models), IC-7400

TS-001S:

Kenwood TS-570S, TS-570D, TS-590S, TS-2000, TS-2000X, TS-B2000

TS-002:

Kenwood TS-850, TS-950

TS-003:

Kenwood TS-480HX, TS-480SAT

TS-004:

Kenwood TS-450, TS-690, TS-140

TS-005:

Kenwood TS-870S

TS-006S:

Kenwood TS-990S

YS-001:

Yaesu FT-100, FT-817, FT-817ND, FT-857, FT-857D, FT-897, FT-897D

YS-002S:

Yaesu FT-1000MP, FT-1000MP Mark-V, FT-2000, FT-2000D, FT DX 5000, FT DX 5000D, FT DX 5000MP (using PATCH and AF OUT sockets)

YS-003S:

Yaesu FT-1000, FT-1000D

YS-005:

Yaesu FT-450, FT-450D, FT-991

YS-006:

Yaesu FT-950, FT DX 1200, FT DX 3000

YS-009S:

Yaesu FT DX 9000, FT DX 9000D,  FT DX 9000MP (using PACKET and AF OUT sockets)

TT-001S:

Ten-Tec Orion

EL-001S:

Elecraft K3

EL-002:

Elecraft KX3
