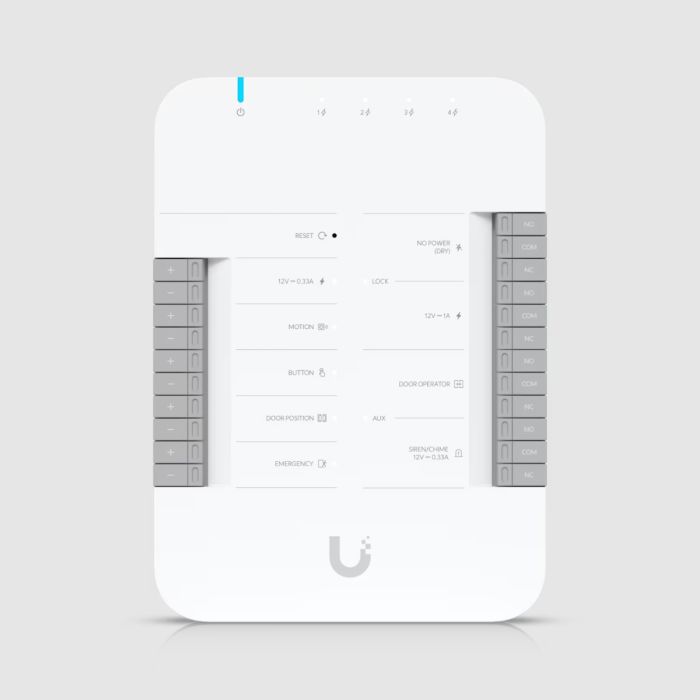

Ubiquiti Door Hub - UA-HUB-Door

Door Hub

A single-door mechanism that provides complete entry and exit control via connected Access Readers.

The Door Hub is a robust and essential component for modern access control systems. It's designed to provide comprehensive entry and exit management for a single door, seamlessly integrating with the UniFi Application Suite Access for a centralized and intelligent door management solution.

Key Features:

• Door Control: Provides complete entry and exit control for a single door.
• Comprehensive Inputs: Features dedicated input terminals for two door exit requests, door position sensing, and emergency triggers.
• Flexible Relay Outputs: Offers both Dry Output Relays (Lock: 30V DC, 1A; Aux: 30V DC, 1A) and Powered Output Relays (Lock: 12V DC, 1A; Aux: 12V DC, 0.33A), allowing integration with various lock types.
• PoE++ Power Input: Utilizes PoE++ for power, simplifying installation and reducing wiring complexity.
• PoE Outputs: Includes four PoE outputs (50V DC, 15.4W per port, max 28W aggregated) to power connected Access Readers and other PoE devices.
• Gigabit Ethernet Connectivity: Equipped with five 10/100/1000 Base-T networking interfaces for reliable data transfer.
• Indoor Use: Designed for indoor environments.
• Compact Design: Dimensions of 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") for discreet installation.
• DIN-Rail Mount: Includes DIN-rail mounting hardware for organized installation.
• Robust Construction: Made with durable polycarbonate for both enclosure and mount materials.
• UL 294 Certified: Meets UL 294 Level I for Destructive Attack, Line Security, Endurance, and Standby Power, ensuring high security standards.
• NDAA Compliant: Adheres to high security and supply chain standards.
• Wide Operating Range: Functions reliably in ambient operating temperatures from 0 to 40° C (32 to 104° F) and 5 to 95% noncondensing humidity.
• Memory Backup: Features a factory-reset button for easy management.
• Optimized Cabling Recommendations: Provides detailed guidance for maximum cable lengths for various electric and magnetic locks to ensure optimal performance.
• Management Application: Managed via the UniFi Access application.
